Kohler CH730-3281 MARKETING Engine

Model: CH730-3281 MARKETING

Back To Assemblies

Save Part Not Listed?
product name

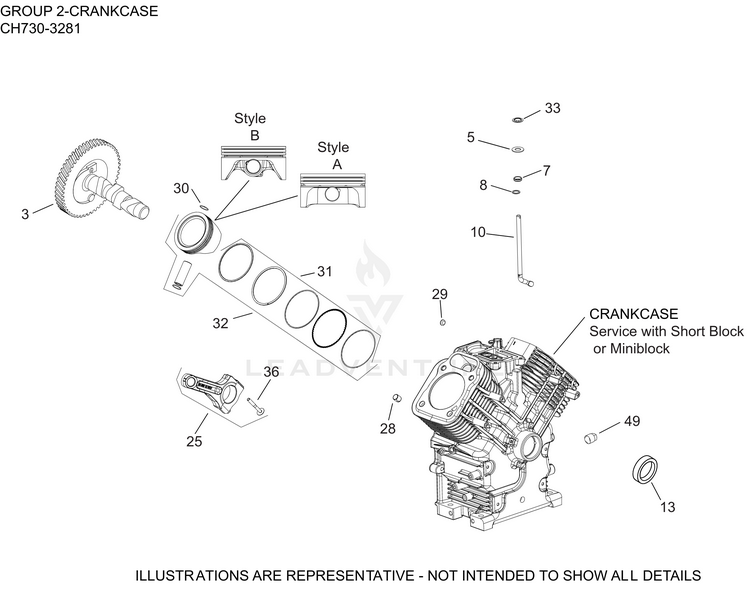

02 CrankCase

...
...
3
KIT, CAMSHAFT KOH-24 012 33-S
...
5
WASHER, FLAT 9 MM KOH-M-931010-S
...
7
SEAL, GOVERNOR CROSS SHAFT KOH-28 032 09-S
...
8
WASHER, FLAT 11/32" KOH-24 468 15-S
...
10
SHAFT, GOVERNOR CROSS KOH-24 144 39-S
...
13
SEAL, OIL (HELIX LIP) KOH-24 032 19-S
...
25
ROD, ASSEMBLY CONNECTING KOH-25 067 04-S
...
28
PIN, LOCATING KOH-24 380 16-S
...
29
PLUG, CUP KOH-52 139 09-S
...
30
RETAINER, PISTON PIN KOH-24 018 01-S
...
31
RING SET(STD)STYLE B-1.2mm Tp RING THICK KOH-25 108 01-S
...
31
RING SET(.08)STYLE B-1.2mm RING THICK KOH-25 108 02-S
...
31
RING SET(.25)STYLE B-1.2mm Tp RING THICK KOH-25 108 03-S
...
31
RING SET(.50)STYLE B-1.2mm Tp RING THICK KOH-25 108 04-S
...
32
KIT, PISTON 725CC (STD) STYLE B KOH-25 874 13-S
...
32
KIT, PISTON 725CC (.08) STYLE B KOH-25 874 15-S
...
32
KIT, PISTON 725CC (.25) STYLE B KOH-25 874 16-S
...
32
KIT, PISTON 725CC (.50) STYLE B KOH-25 874 17-S
...
33
RETAINER, RING KOH-24 018 09-S
...
36
KIT, ROD BOLTS KOH-25 086 677-S
...
49
PLUG, SQ HD PIPE 3/8" KOH-25 139 57-S
