Kohler CH730-0170 Medart Engine

Model: CH730-0170 Medart

Back To Assemblies

Save Part Not Listed?
product name

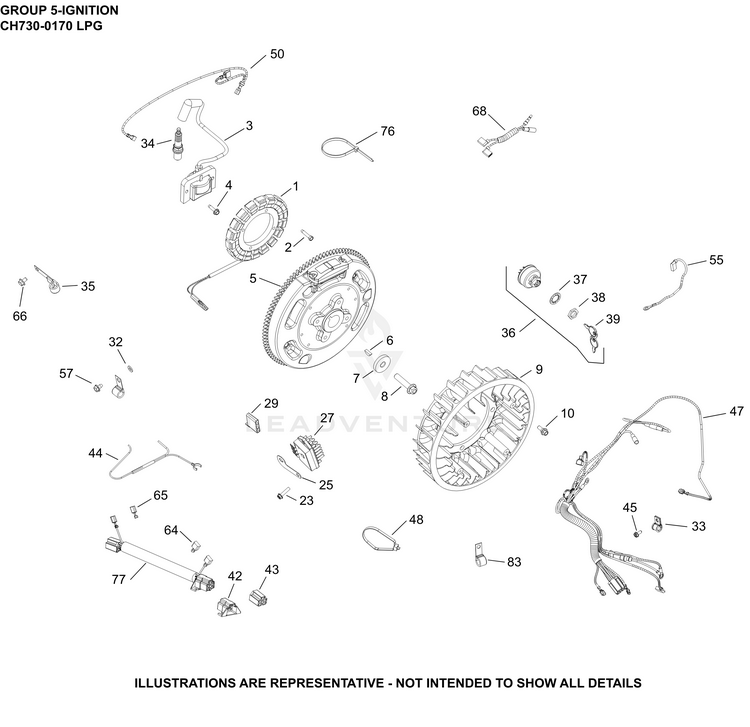

05 Ignition/Charging

...
...
1
KIT, 15 / 20 AMP STATOR KOH-237878-S
...
2
SCREW, THREAD FORMING KOH-25 086 402-S
...
3
KIT IGNITION MODULE-(#24584262S) KOH-24 584 201-S
...
4
SCREW, THREAD FORMING KOH-25 086 473-S
...
5
FLYWHEEL ASSEMBLY (LW, 22) KOH-24 025 121-S
...
6
KEY, 3/16" X 5/8" KOH-X-42-15-S
...
7
WASHER, FLAT 13/32"-(#2546809S) KOH-12 468 03-S
...
8
SCREW, HEX FLANGE KOH-25 086 361-S
...
9
KIT, FLYWHEEL FAN KOH-24 755 253-S
...
10
BOLT, SHOULDER KOH-25 086 47-S
...
23
SCREW, HEX FLANGE HI-LO-USE 25 086 785-S KOH-25 086 157-S
...
25
LEAD KOH-24 518 12-S
...
27
REGULATOR, RECTIFIER KOH-25 403 29-S
...
29
CONNECTOR KOH-25 155 41-S
...
32
WASHER, FLAT 1/4" (O.D. 1/2") KOH-X-25-63-S
...
33
CLIP KOH-210281-S
...
34
PLUG, SPARK (STD) KOH-12 132 02-S
...
35
CLIP, CABLE KOH-24 154 10-S
...
36
KEY SWITCH ASSEMBLY KOH-25 099 37-S
...
37
WASHER, INTERNAL TOOTH KOH-48 468 02-S
...
38
NUT, KEY SWITCH KOH-48 100 01-S
...
39
KEY, SET OF 2 KOH-48 340 01-S
...
42
CONNECTOR KOH-25 155 06-S
...
43
CONNECTOR KOH-48 155 01-S
...
44
TACHOMETER KOH-25 449 05-S
...
45
SCREW, WSH HD TAP #8-18X1/2" KOH-25 086 91-S
...
47
HARNESS WIRING ASSEMBLY KOH-24 176 150-S
...
48
TIE KOH-25 454 07-S
...
50
LEAD, DUPLEX-USE 24 176 311-S KOH-24 176 41-S
...
55
LEAD, 20/25 AMP B+ KOH-25 518 34-S
...
57
SCREW, THREAD FORMING KOH-25 086 406-S
...
64
TERMINAL KOH-25 452 18-S
...
65
TERMINAL KOH-25 452 19-S
...
66
SCREW, THREAD FORMING KOH-25 086 406-S
...
68
HARNESS, WIRING KOH-24 176 78-S
...
76
TIE KOH-25 454 05-S
...
77
HARNESS, WIRING KOH-25 176 02-S
...
83
CLIP, CABLE (KM) KOH-48 154 01-S
