Kohler CH730-0102 RED ROO MOWERS 23.5 HP (17.5 kW)

Model: CH730-0102 RED ROO MOWERS 23.5 HP (17.5 kW)

Back To Assemblies

Save Part Not Listed?
product name

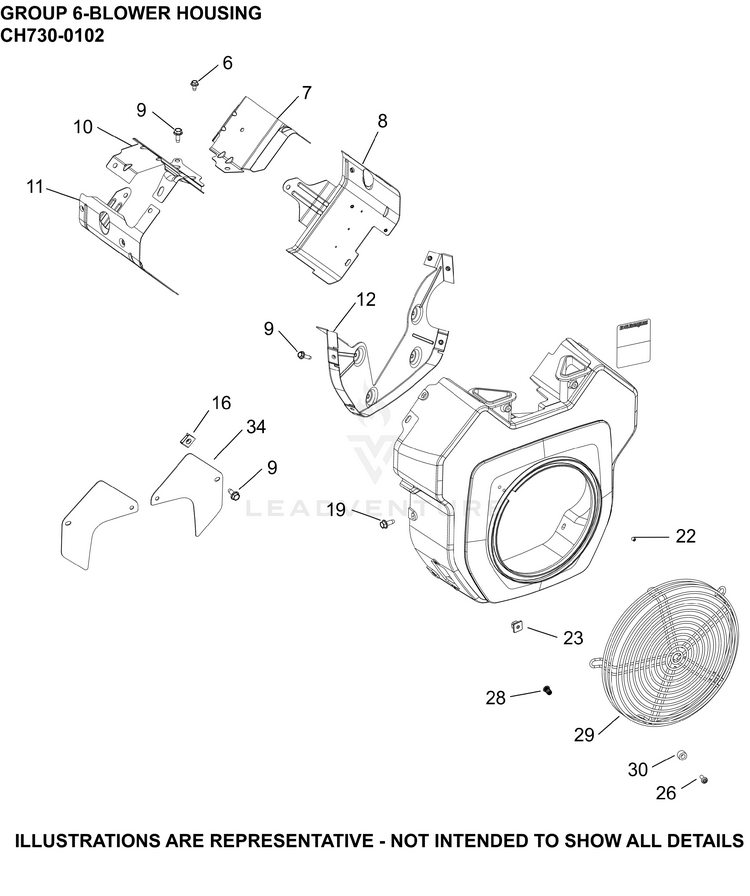

06 Blower Housing

...
...
6
SCREW, THREAD FORMING KOH-25 086 400-S
...
7
BAFFLE, VALLEY #1 CYLINDER KOH-24 063 114-S
...
8
KIT, CYL BAFFEL #1 SIDE KOH-24 063 85-S
...
9
SCREW, THREAD FORMING KOH-25 086 396-S
...
9
SCREW, THREAD FORMING KOH-25 086 397-S
...
10
BAFFLE, VALLEY #2 CYLINDER KOH-24 063 94-S
...
11
BAFFLE, LEFT BARREL KOH-24 063 88-S
...
12
KIT, BACKING PLATE KOH-24 146 59-S
...
16
CLIP, BAFFLE MOUNTING KOH-25 154 37-S
...
19
SCREW, THREAD FORMING KOH-25 086 398-S
...
22
SCREW, THREAD FORMING KOH-25 086 405-S
...
22
SCREW, SKT SET #10-24X1/4" Before S/N 2417500017 KOH-25 086 43-S
...
23
NUT, PLASTIC - BLACK After S/N 2433300007 KOH-25 100 37-S
...
26
SCREW, SEMS KOH-25 086 160-S
...
28
INSERT, THREADED (M5) KOH-25 332 19-S
...
29
KIT, GUARD KOH-24 755 94-S
...
30
SPACER KOH-25 112 30-S
...
34
KIT, ACCESS PANEL KOH-25 755 20-S
...
NI
SPACER .406 X .625 X .344 KOH-25 112 15-S
