Kohler CH680-3162 Komex Engine

Model: CH680-3162 Komex

Back To Assemblies

Save Part Not Listed?
product name

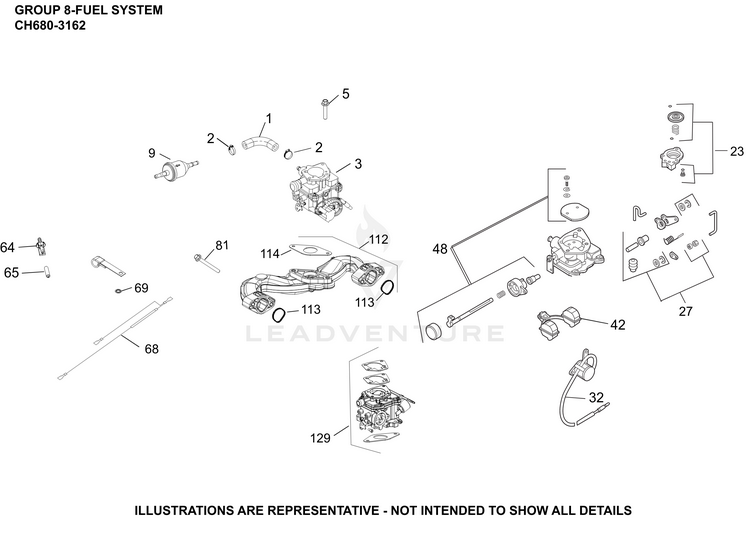

08 Fuel System

...
...
1
HOSE, FUEL LOW PERMEATION 39" BEFORE S/N 5227300011 KOH-25 111 81-S
...
2
CLAMP, HOSE BEFORE S/N 5227300011 KOH-25 237 31-S
...
3
KIT, CARBURETOR COMPLETE BEFORE S/N 5227300011 KOH-24 853 310-S
...
5
SCREW, FLG M6X1.0X25 KOH-25 086 124-S
...
9
FILTER, FUEL KOH-24 050 13-S
...
23
KIT, REPAIR ACC PUMP KOH-24 757 08-S
...
27
KIT, REPAIR-ACC PUMP SEAL-(#DSC) KOH-24 757 09-S
...
32
KIT, SOLENOID BEFORE S/N 5227300011 KOH-24 757 01-S
...
42
KIT, REPAIR FLOAT BEFORE S/N 5227300011 KOH-24 757 02-S
...
48
KIT, REPAIR CHOKE BEFORE S/N 5227300011 KOH-24 757 07-S
...
64
CONNECTOR, EVAPORATIVE KOH-25 155 51-S
...
65
CAP, MASKING KOH-25 173 33-S
...
68
LEAD, GROUND KOH-24 518 24-S
...
69
WASHER, INT TOOTH LOCK 1/4" KOH-X-22-11-S
...
81
SCREW, HEX FLANGE KOH-25 086 766-S
...
112
INTAKE MANIFOLD W/GASKETS KOH-24 164 275-S
...
113
O-RING, INTAKE PORT KOH-24 153 37-S
...
114
GASKET, CARBURETOR (PIM, CH) KOH-24 041 92-S
...
NI
KIT, HIGH ALT (4000-8000 FT) BEFORE S/N 5227300011 KOH-24 755 125-S
...
NI
KIT, REPAIR CARBURETOR-DISCONTINUED BEFORE S/N 5227300011 KOH-24 757 03-S
...
129
KIT, CARBURETOR AFTER S/N 5227300001 KOH-24 853 330-S
