Kohler CH680-3141 TOMINGA Engine

Model: CH680-3141 TOMINGA

Back To Assemblies

Save Part Not Listed?
product name

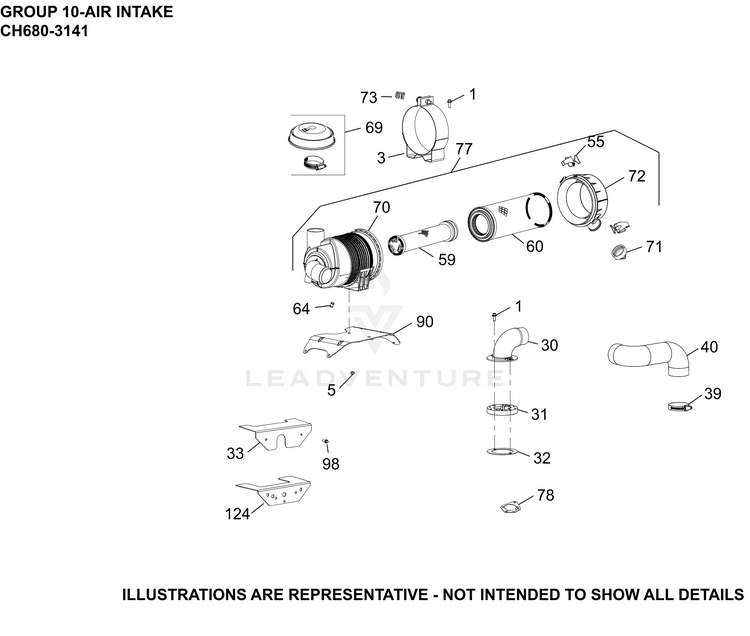

10 Air Intake

...
...
1
SCREW, FLG M6X1.0X16 KOH-M-639016-S
...
3
BRACKET, AIR CLEANER KOH-24 126 191-S
...
5
NUT, LOCK M6X1.0 KOH-M-647060-S
...
30
ADAPTER, REMOTE AIR CLEANER KOH-24 029 21-S
...
31
KIT, ADAPTER KOH-24 029 98-S
...
32
GASKET, ADAPTER KOH-24 041 34-S
...
33
SHIELD, DEBRIS-(#2431464S) BEFORE S/N 5234900011 KOH-24 314 25-S
...
39
CLAMP, HOSE KOH-25 237 21-S
...
40
HOSE, AIR CLEANER KOH-24 326 32-S
...
55
CLIP ASSEMBLY KOH-62 154 07-S
...
59
ELEMENT, AIR FILTER - SAFETY KOH-25 083 04-S
...
60
ELEMENT, AIR FILTER - PRIMARY KOH-25 083 01-S
...
64
PLUG, PIPE KOH-25 139 20-S
...
69
HOOD, INLET KOH-25 324 04-S
...
70
HOUSING, HD AIR CLEANER KOH-25 081 01-S
...
71
VALVE, DUST EJECTOR KOH-24 462 07-S
...
72
COVER ASSEMBLY, AIR CLEANER KOH-25 096 06-S
...
73
SPRING, AIR CLEANER BRACKET KOH-24 089 73-S
...
77
AIR CLEANER ASSY KOH-25 048 17-S
...
78
GASKET, AIR CLEANER BASE KOH-24 041 06-S
...
90
BRACKET, AIR CLEANER KOH-24 126 142-S
...
98
SCREW, HI-LOW KOH-25 086 787-S
...
124
SHIELD, DEBRIS AFTER S/N 5234900001 KOH-24 314 64-S
