Kohler CH640-3216 CPD (WI)-E.H. WACHS-VALVE Command Pro Twin

Model: CH640-3216 CPD (WI)-E.H. WACHS-VALVE

Back To Assemblies

Save Part Not Listed?
product name

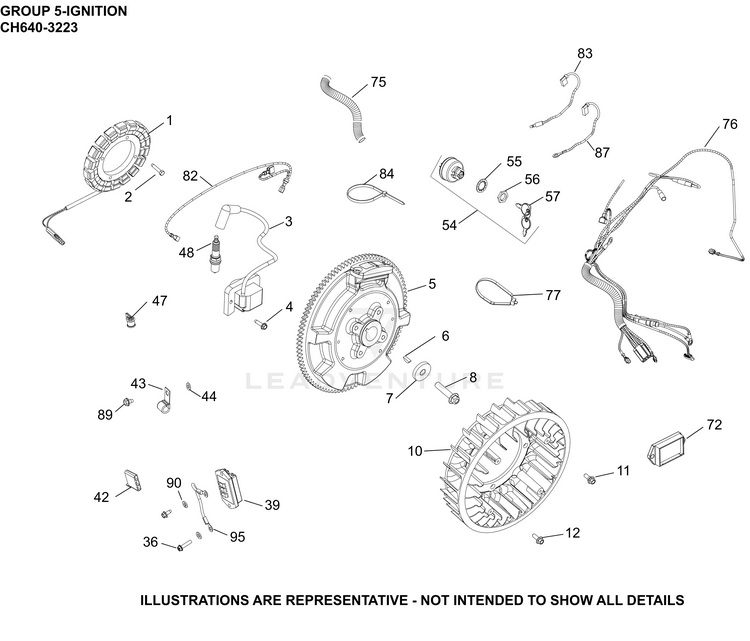

05 Ignition/Charging

...
...
1
KIT, 15 / 20 AMP STATOR KOH-237878-S
...
2
SCREW, THREAD FORMING KOH-25 086 402-S
...
3
MODULE, EMC/RFI COMPLIANT KOH-25 584 31-S
...
4
SCREW, THREAD FORMING KOH-25 086 472-S
...
5
FLYWHEEL ASSEMBLY (LW, 22) KOH-24 025 121-S
...
6
KEY, 3/16" X 5/8" KOH-X-42-15-S
...
7
WASHER, FLAT 13/32"-(#2546809S) KOH-12 468 03-S
...
8
SCREW, HEX FLANGE KOH-25 086 361-S
...
10
KIT, FLYWHEEL FAN KOH-24 755 253-S
...
11
BOLT, SHOULDER KOH-25 086 47-S
...
12
SCREW, FLG M6X1.0X16 KOH-M-639016-S
...
36
SCREW, HEX FLANGE HI-LO-USE 25 086 785-S KOH-25 086 157-S
...
39
KIT, REGULATOR RECT (12/15 AMP) KOH-25 403 45-S
...
42
CONNECTOR KOH-25 155 41-S
...
43
CLIP, CABLE KOH-235173-S
...
44
WASHER, FLAT 1/4" (O.D. 1/2") KOH-X-25-63-S
...
47
CLIP KOH-210281-S
...
48
SPARK PLUG, RFI KOH-25 132 14-S
...
54
KEY SWITCH ASSEMBLY KOH-25 099 37-S
...
55
WASHER, INTERNAL TOOTH KOH-48 468 02-S
...
56
NUT, KEY SWITCH KOH-48 100 01-S
...
57
KEY, SET OF 2 KOH-48 340 01-S
...
72
TACHOMETER KOH-25 449 05-S
...
75
TUBE,RFI FLEXIBLE SLEEVE(219mm) KOH-25 123 05-S
...
76
HARNESS, WIRING ASSEMBLY KOH-24 176 163-S
...
77
TIE KOH-25 454 07-S
...
82
LEAD, DUPLEX-USE 24 176 311-S KOH-24 176 41-S
...
83
LEAD, OIL SENTRY KOH-24 518 09-S
...
84
TIE KOH-25 454 05-S
...
87
LEAD, 20/25 AMP B+ KOH-25 518 34-S
...
89
SCREW, THREAD FORMING KOH-25 086 406-S
...
90
WASHER, LOCK KOH-25 468 30-S
...
95
LEAD KOH-24 518 43-S
