Kohler CH440-3304 Medart Engine

Model: CH440-3304 Medart

Back To Assemblies

Save Part Not Listed?
product name

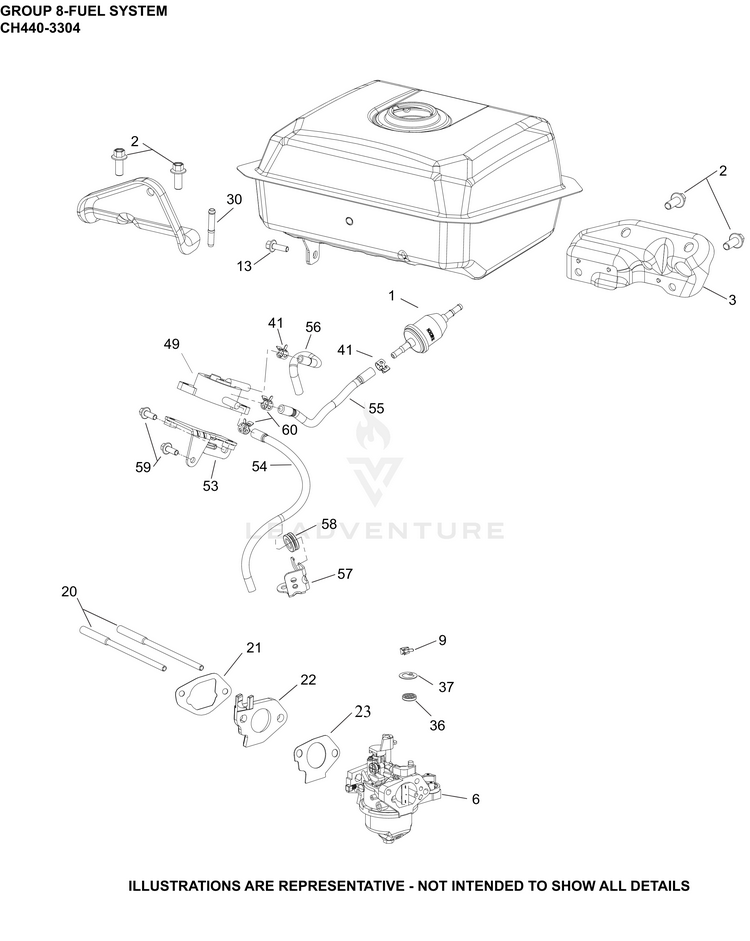

08 Fuel System

...
...
1
FILTER,FUEL 75 MICRON (GRAVTY FEED) KOH-25 050 21-S
...
2
SCREW, M8 X 20 KOH-25 086 224-S
...
3
BRACKET, FUEL SUPPORT ASSEMBLY KOH-17 126 245-S
...
6
KIT, CARB COMPLETE-(#17853127S) KOH-17 853 96-S
...
9
CLAMP, FUEL LINE KOH-14 237 01-S
...
20
STUD, CARBURETOR KOH-17 072 10-S
...
21
KIT, GASKET INTAKE KOH-17 041 35-S
...
22
KIT, INSULATOR KOH-17 168 07-S
...
23
GASKET, CARB TO INSULATOR KOH-17 041 36-S
...
30
FITTING, PULSE PUMP KOH-17 294 10-S
...
36
SEAL, INLET VALVE KOH-17 032 40-S
...
37
KIT, FUEL SCREEN KOH-17 050 23-S
...
41
CLAMP, HOSE KOH-17 237 14-S
...
49
PUMP, FUEL KOH-24 393 16-S
...
53
BRACKET, FUEL PUMP KOH-17 126 212-S
...
54
FUEL HOSE, LOW PERMEATION KOH-17 111 32-S
...
55
FUEL HOSE, LOW PERMEATION KOH-17 111 33-S
...
56
HOSE, BREATHER KOH-17 123 113-S
...
57
KIT, REMOTE CHOKE BRACKET ASSEMBLY KOH-17 126 289-S
...
58
GROMMET KOH-17 313 16-S
...
59
SCREW, FLG M6X1.0X16 KOH-M-639016-S
...
60
CLAMP, HOSE KOH-14 237 10-S
...
NI
KIT, HIGH ALT (4000-8000 FT) KOH-17 755 09-S
...
NI
KIT, HIGH ALT (8,000+ FT) KOH-17 755 23-S
...
NI
KIT, CARBURETOR REPAIR KOH-17 757 03-S
