Kohler CH440-3244 Lombardini Engine

Model: CH440-3244 Lombardini

Back To Assemblies

Save Part Not Listed?
product name

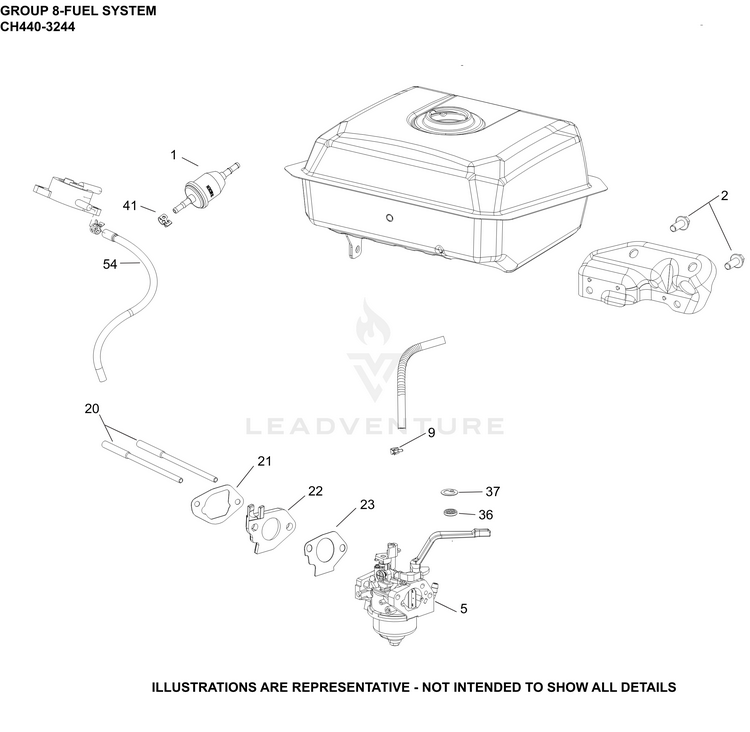

08 Fuel System

...
...
1
FILTER,FUEL 75 MICRON (GRAVTY FEED) KOH-25 050 21-S
...
2
SCREW, M8 X 20 KOH-25 086 224-S
...
5
CARBURETOR, ASSEMBLY KOH-17 853 143-S
...
9
CLAMP, FUEL LINE KOH-14 237 01-S
...
20
STUD, INTAKE KOH-17 072 31-S
...
21
KIT, GASKET INTAKE KOH-17 041 35-S
...
22
KIT, INSULATOR KOH-17 168 07-S
...
23
GASKET, CARB TO INSULATOR KOH-17 041 36-S
...
36
SEAL, INLET VALVE KOH-17 032 40-S
...
37
KIT, FUEL SCREEN KOH-17 050 23-S
...
41
CLAMP, HOSE KOH-17 237 14-S
...
54
FUEL HOSE, LOW PERMEATION KOH-17 111 41-S
...
NI
TOOL, SPARK PLUG WRENCH ASSY KOH-14 455 03-S
...
NI
KIT, HIGH ALT (4000-8000 FT) KOH-17 755 10-S
...
NI
KIT, HIGH ALT (8,000+ FT) KOH-17 755 25-S
...
NI
KIT, CARBURETOR REPAIR KOH-17 757 03-S
