Kohler CH440-3192 Basic Engine

Model: CH440-3192 Basic

Back To Assemblies

Save Part Not Listed?
product name

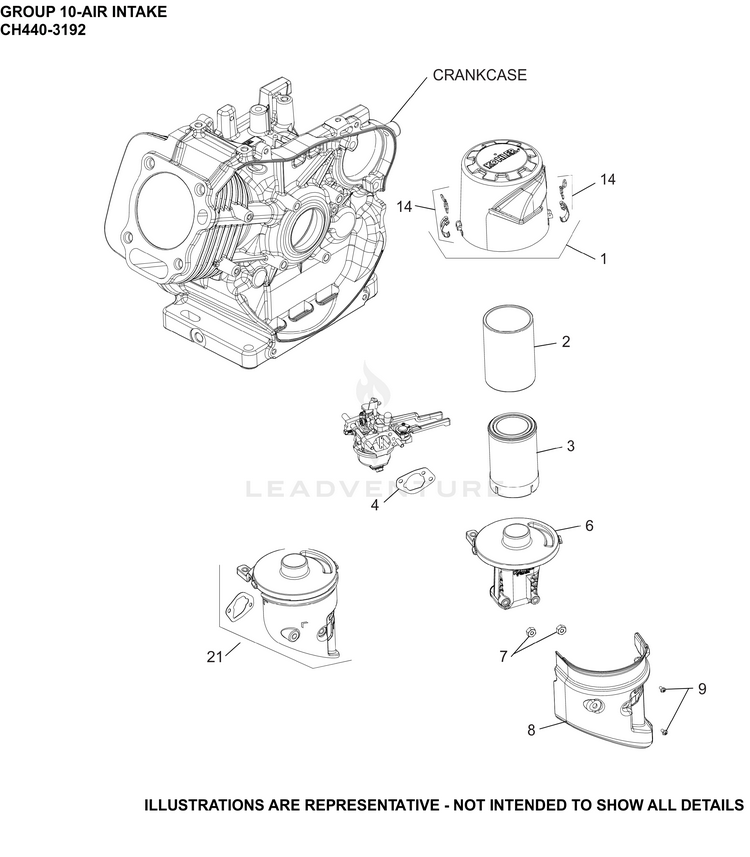

10 Air Intake

...
...
1
COVER, AIR CLEANR ASSEMBLY KOH-17 096 79-S
...
2
ELEMENT, PRE-CLEANER KOH-17 083 15-S
...
3
ELEMENT, AIR FILTER KOH-17 083 32-S
...
4
GASKET, AIR CLEANER KOH-17 041 37-S
...
6
AIR CLEANER BASE ASSY BEFORE S/N 5128500011 KOH-17 094 33-S
...
7
NUT, HEX (M6 THREAD, M8 BODY) BEFORE S/N 5128500011 KOH-17 100 43-S
...
8
COVER, A/C/ BASE CH440 BEFORE S/N 5128500011 KOH-17 096 74-S
...
9
SCREW,COVR TO BLWR HOUSING BEFORE S/N 5128500011 KOH-25 086 217-S
...
14
KIT, LATCH CLIP KOH-17 344 01-S
...
21
KIT, AIR CLEANER BASE ASSEMBLY AFTER S/N 5128500001 KOH-17 094 85-S
