Kohler CH440-3171 U-Young Engine

Model: CH440-3171 U-Young

Back To Assemblies

Save Part Not Listed?
product name

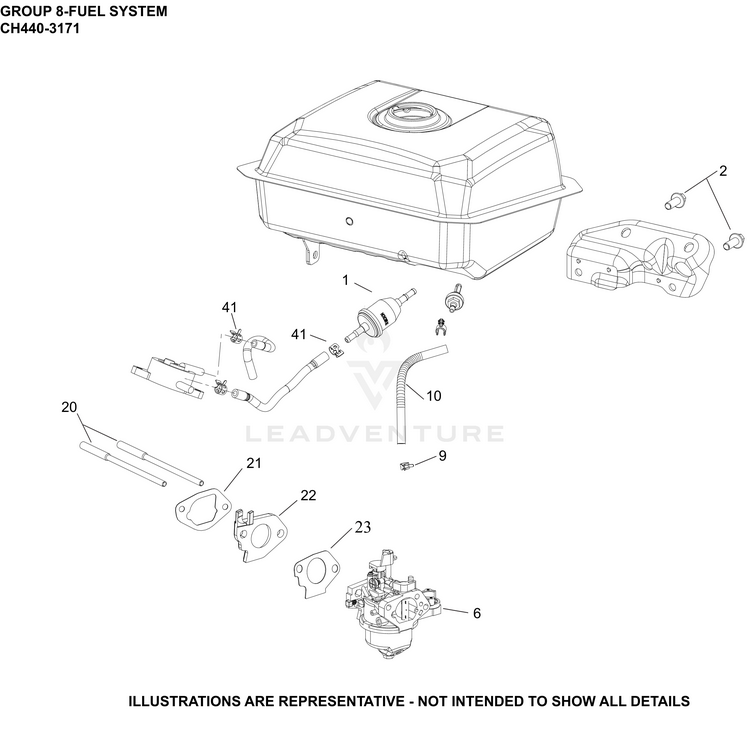

08 Fuel System

...
...
1
FILTER,FUEL 75 MICRON (GRAVTY FEED) KOH-25 050 21-S
...
2
SCREW, M8 X 20 KOH-25 086 224-S
...
6
KIT, CARBURETOR COMPLETE KOH-17 853 83-S
...
9
CLAMP, FUEL LINE Before S/N 4921800011 KOH-14 237 01-S
...
10
FUEL HOSE, LOW PERMEATION After S/N 4921800001 KOH-17 111 41-S
...
10
LINE, FUEL (10"-CUT TO LENGTH) Before S/N 4921800011 KOH-25 111 40-S
...
20
STUD, INTAKE KOH-17 072 31-S
...
21
KIT, GASKET INTAKE KOH-17 041 35-S
...
22
KIT, INSULATOR KOH-17 168 07-S
...
23
GASKET, CARB TO INSULATOR KOH-17 041 36-S
...
41
CLAMP, HOSE After S/N 4921800001 KOH-17 237 14-S
...
NI
TOOL, SPARK PLUG WRENCH ASSY KOH-14 455 03-S
...
NI
KIT, HIGH ALTITUDE (ABOVE 8,000 FT.) KOH-17 755 22-S
...
NI
KIT, HIGH ALT (4000-8000 FT) KOH-17 755 26-S
...
NI
KIT, CARBURETOR REPAIR KOH-17 757 03-S
