Kohler CH440-3163 KPP Engine

Model: CH440-3163 KPP

Back To Assemblies

Save Part Not Listed?
product name

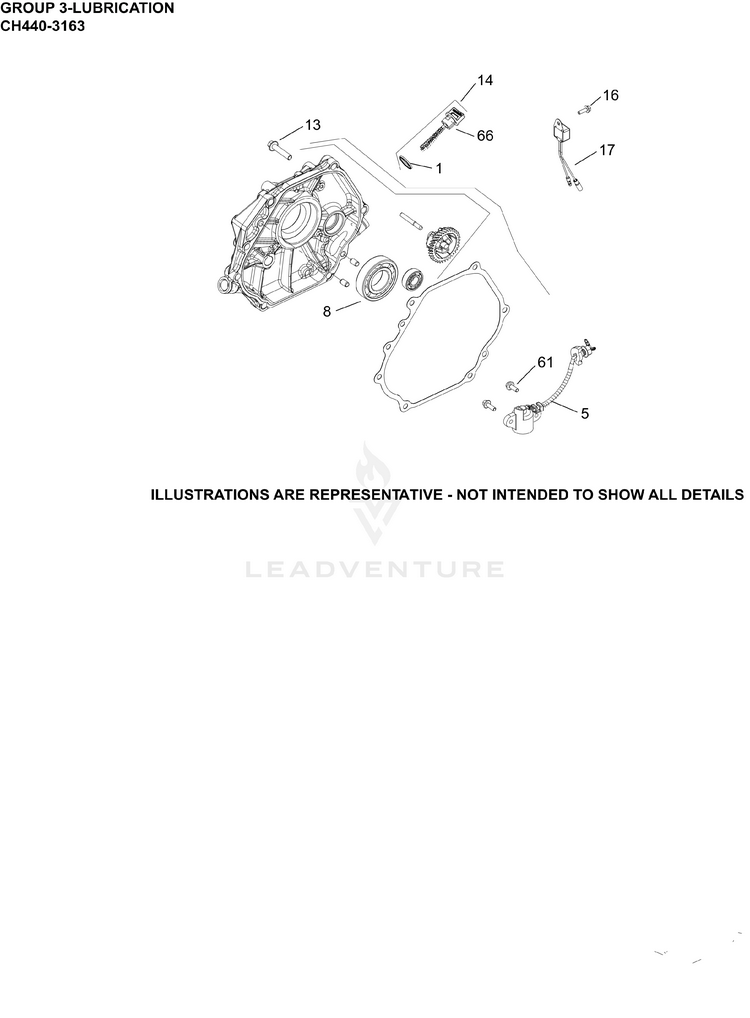

03 Lubrication

...
...
1
SEAL, DIPSTICK KOH-17 032 05-S
...
5
SWITCH, OIL SENSOR ASSEMBLY KOH-17 099 05-S
...
8
BEARING, BALL KOH-17 030 34-S
...
13
SCREW, CLOSURE PLATE KOH-25 086 230-S
...
14
DIPSTICK ASSEMBLY KOH-17 038 08-S
...
16
SCREW, HEX/PHILLIPS M5 KOH-25 086 244-S
...
17
CONTROL, OIL ALERT UNIT KOH-17 526 04-S
...
66
DIPSTICK ASSEMBLY KOH-17 038 08-S
...
61
SCREW, M6 X 16 KOH-25 086 337-S
