Kohler CH430-0018 Gardner Engine

Model: CH430-0018 Gardner

Back To Assemblies

Save Part Not Listed?
product name

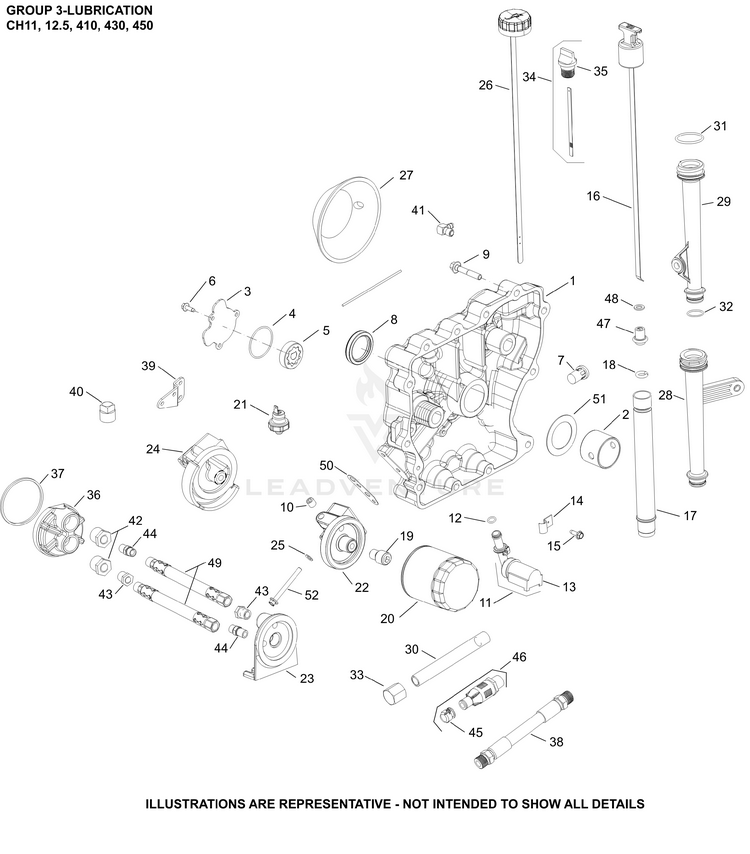

03 Lubrication

...
...
1
CLOSURE PLATE ASSEMBLY-DISC. KOH-12 009 53-S
...
3
COVER, OIL PUMP KOH-12 096 21-S
...
4
O-RING (1.78" DIA) KOH-12 153 05-S
...
5
PUMP ASSEMBLY, OIL-(#DSC) KOH-12 393 01-S
...
6
SCREW, THREAD FORMING KOH-25 086 398-S
...
7
VALVE, OIL PRESSURE RELIEF KOH-25 462 09-S
...
8
SEAL, OIL KOH-12 032 03-S
...
9
SCREW, FLG M8X1.25X45 KOH-24 086 17-S
...
10
PLUG, CTSK PIPE 1/8" KOH-25 139 60-S
...
11
KIT, OIL PICK-UP KOH-12 755 73-S
...
12
O-RING (.5" DIA) KOH-12 153 04-S
...
13
PICK-UP, OIL KOH-24 381 04-S
...
13
PICK-UP, OIL SCREEN KOH-25 381 01-S
...
14
CLIP-(#DSC) KOH-52 154 01-S
...
15
SCREW, THREAD FORMING KOH-25 086 398-S
...
16
DIPSTICK KOH-47 038 27-S
...
17
TUBE, OIL FILL KOH-12 123 16-S
...
18
O-RING KOH-41 153 01-S
...
19
NIPPLE, OIL FILTER KOH-24 136 09-S
...
20
OIL FILTER KOH-52 050 02-S
...
21
SENSOR, OIL PSI KOH-25 099 27-S
...
47
SEAL, RUBBER KOH-25 032 13-S
...
48
WASHER KOH-X-25-44-S
...
51
WASHER, THRUST (1MM)-DISCONTINUED KOH-12 468 06-S
