Kohler CH430-0016 CHAMPION Engine

Model: CH430-0016 CHAMPION

Back To Assemblies

Save Part Not Listed?
product name

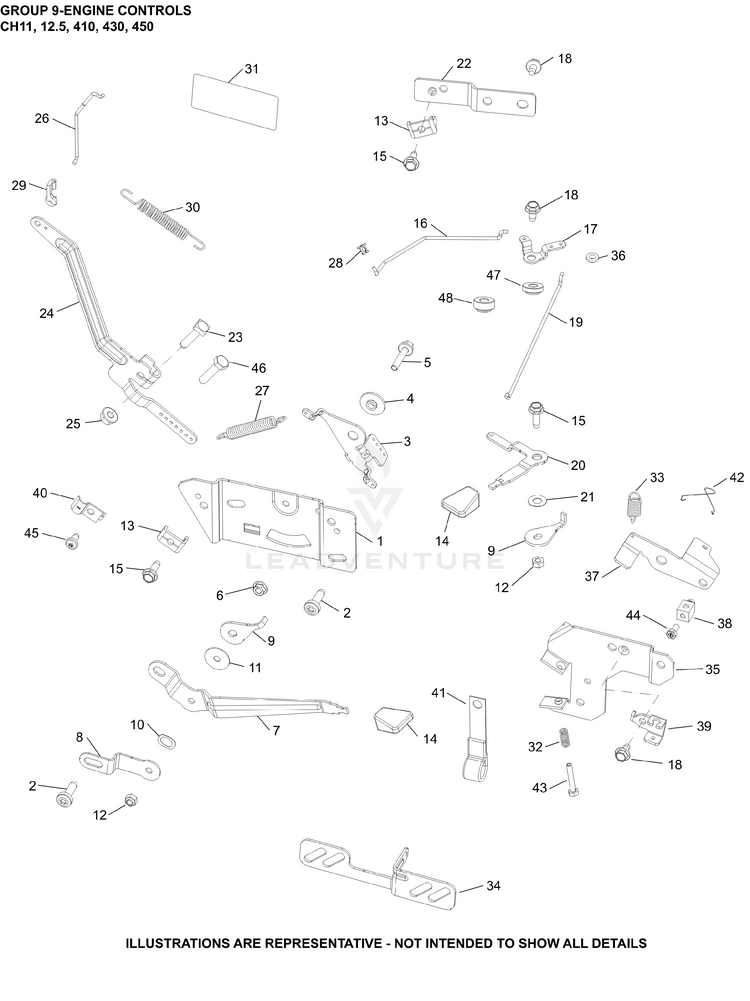

09 Engine Controls

...
...
2
SCREW, THREAD FORMING KOH-25 086 403-S
...
9
TAB-(#DSC) KOH-12 448 01-S
...
12
NUT, LOCK M5X.8 KOH-M-547050-S
...
14
KNOB-(#DSC) KOH-41 341 03-S
...
15
SCREW, THREAD FORMING KOH-25 086 398-S
...
16
LINKAGE, CHOKE KOH-12 079 08-S
...
17
LEVER KOH-12 090 14-S
...
18
SCREW, FLG THD FRM M5X.8X10 KOH-M-545010-S
...
19
LINKAGE KOH-12 079 06-S
...
20
LEVER, CHOKE KOH-12 090 16-S
...
21
WASHER, SPRING 1/4" KOH-41 468 03-S
...
23
SCREW, SQUARE HEAD-(#DSC) KOH-12 086 41-S
...
24
LEVER, GOVERNOR-(#DSC) KOH-12 090 40-S
...
25
NUT, FLG M6X1.0 KOH-M-641060-S
...
26
LINKAGE KOH-12 079 04-S
...
27
SPRING KOH-12 089 17-S
...
28
BUSHING, LINKAGE RETAINING KOH-25 158 08-S
...
29
BUSHING, THROTTLE LINKAGE KOH-25 158 11-S
...
30
SPRING KOH-230117-S
...
34
BRACKET, GOVERNOR SPRING-DISC. KOH-12 126 22-S
