Kohler CH430-0012 INGERSOLL RAND 13 HP (9.7 kW)

Model: CH430-0012 13 HP (9.7 kW)

Back To Assemblies

Save Part Not Listed?
product name

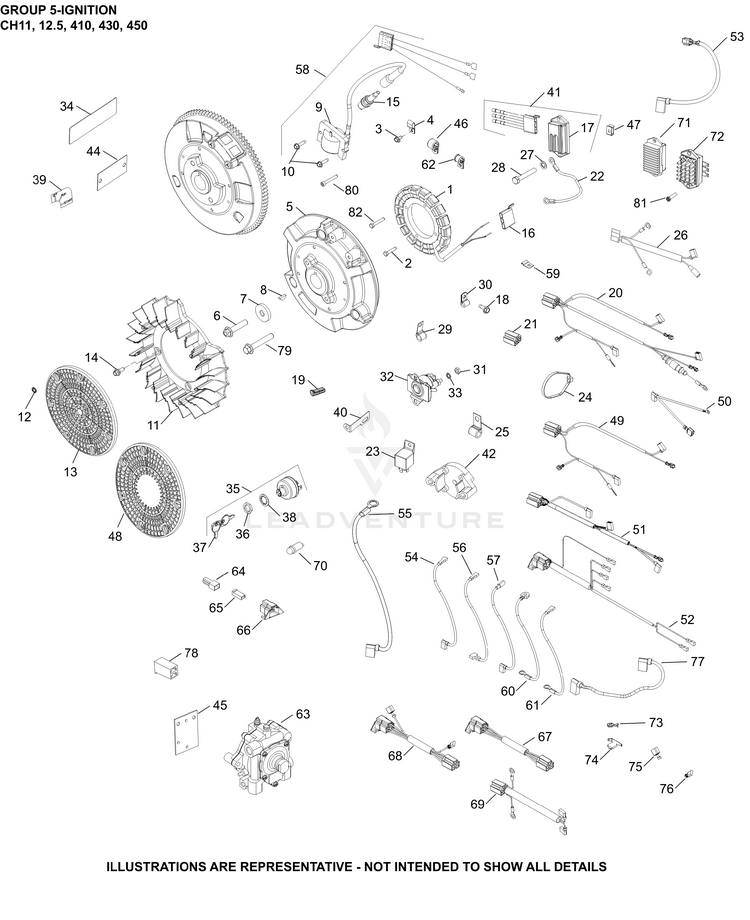

05 Ignition/Charging

...
...
3
SCREW, FLG THD FRM M5X.8X10 KOH-M-545010-S
...
4
CLIP KOH-X-728-1-S
...
6
SCREW, HEX FLANGE KOH-25 086 361-S
...
7
WASHER, FLAT 13/32"-(#2546809S) KOH-12 468 03-S
...
8
KEY, 3/16" X 5/8" KOH-X-42-15-S
...
9
MODULE, IGNITION - (#DSC) KOH-12 584 04-S
...
10
SCREW, THREAD FORMING KOH-25 086 473-S
...
14
BOLT, SHOULDER KOH-25 086 47-S
...
15
PLUG, SPARK (STD) KOH-12 132 02-S
...
18
SCREW, THREAD FORMING KOH-25 086 397-S
...
20
HARNESS, WIRING-DISCONTINUED KOH-12 176 25-S
...
21
CONNECTOR KOH-48 155 01-S
...
22
LEAD, STARTER SOLENOID-DISCONTINUED KOH-12 518 09-S
...
22
LEAD, GROUND SOLENOID KOH-25 518 29-S
...
29
CLIP, CABLE KOH-235173-S
...
30
CLIP, TUBE & WIRING (KM) KOH-12 154 01-S
...
31
NUT, JAM 1/4-20 GRADE 2 KOH-25 100 19-S
...
32
SOLENOID, STARTER RELAY KOH-25 435 08-S
...
33
WASHER, INT TOOTH LOCK 1/4" KOH-X-22-11-S
...
34
DECAL, SHUTDOWN KOH-24 113 35-S
...
35
KEY SWITCH ASSEMBLY KOH-25 099 37-S
...
36
NUT, KEY SWITCH KOH-48 100 01-S
...
37
KEY, SET OF 2 KOH-48 340 01-S
...
38
WASHER, INTERNAL TOOTH KOH-48 468 02-S
...
39
DECAL, IGNITION KOH-52 113 17-S
...
43
FLYWHEEL KOH-12 025 72-S
...
44
COVER, REG/RECTIFIER-DISCONTINUED KOH-12 096 27-S
...
NI
FAN-(#DSC) KOH-12 157 06-S
...
NI
SCREW, WSH HD TAP #10-32x9/16" KOH-25 086 110-S
