Kohler CH395-3216 Lombardini Engine

Model: CH395-3216 Lombardini

Back To Assemblies

Save Part Not Listed?
product name

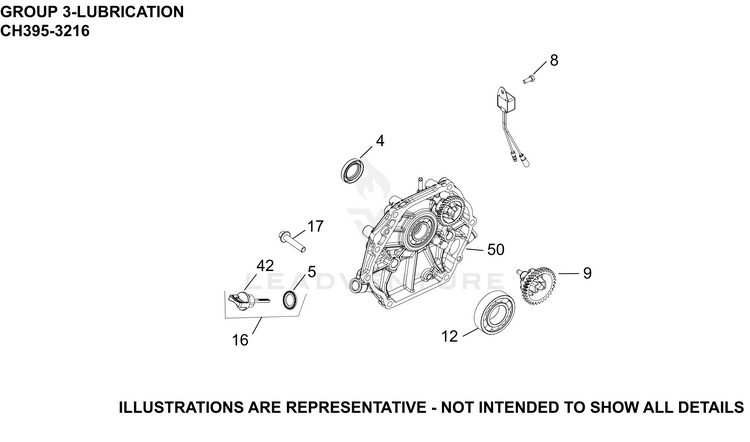

03 Lubrication

...
...
4
SEAL, RADIAL SHAFT KOH-17 032 16-S
...
5
SEAL, DIPSTICK KOH-17 032 05-S
...
8
SCREW, HEX/PHILLIPS M5 KOH-25 086 244-S
...
9
GOVERNOR, ASSEMBLY KOH-17 310 05-S
...
12
BEARING, CRANKSHAFT KOH-17 030 33-S
...
16
DIPSTICK ASSEMBLY KOH-17 038 08-S
...
17
SCREW, CLOSURE PLATE KOH-25 086 230-S
...
42
DIPSTICK ASSEMBLY KOH-17 038 08-S
...
50
PLATE, CLOSURE & BEARING KOH-17 009 124-S
