Kohler CH395-3210 Lombardini Engine

Model: CH395-3210 Lombardini

Back To Assemblies

Save Part Not Listed?
product name

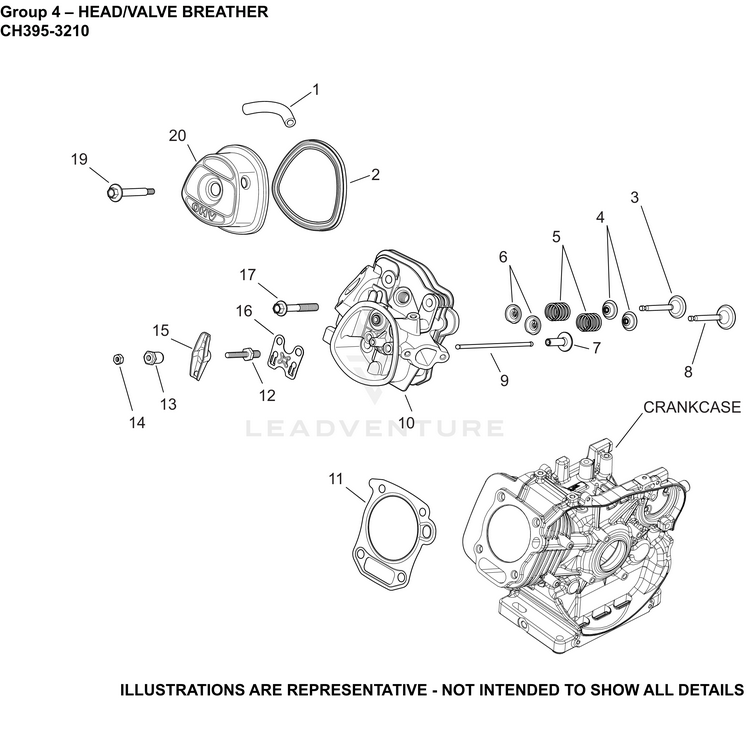

04 CylinderHead/Breather

...
...
1
TUBE, BREATHER KOH-17 123 90-S
...
2
GASKET, VALVE COVER KOH-17 041 52-S
...
3
VALVE, EXHAUST KOH-17 016 03-S
...
4
SEAL, VALVE STEM KOH-17 032 25-S
...
5
SPRING, VALVE KOH-17 089 52-S
...
6
RETAINER, VALVE SPRING KOH-17 018 08-S
...
7
LIFTER, VALVE KOH-17 351 03-S
...
8
VALVE, INTAKE KOH-17 017 06-S
...
9
ROD, PUSH KOH-17 411 09-S
...
10
KIT, HEAD AND VALVE TRAIN KOH-17 318 02-S
...
11
KIT, HEAD GASKET KOH-17 841 22-S
...
12
STUD, ROCKER ARM KOH-14 072 29-S
...
13
PIVOT, ROCKER ARM KOH-14 599 01-S
...
14
NUT, HEX JAM KOH-14 100 01-S
...
15
ARM, ROCKER KOH-17 186 05-S
...
16
PLATE, PUSHROD GUIDE KOH-17 146 09-S
...
17
SCREW, HEX FLANGE CYLINDER HEAD KOH-25 086 234-S
...
19
SCREW, VALVE COVER SEAL ASSY KOH-25 086 310-S
...
20
KIT, VALVE COVER ASSEMBLY KOH-17 096 15-S
