Kohler CH270-3209 MARKETING BASIC Engine

Model: CH270-3209 BASIC

Back To Assemblies

Save Part Not Listed?
product name

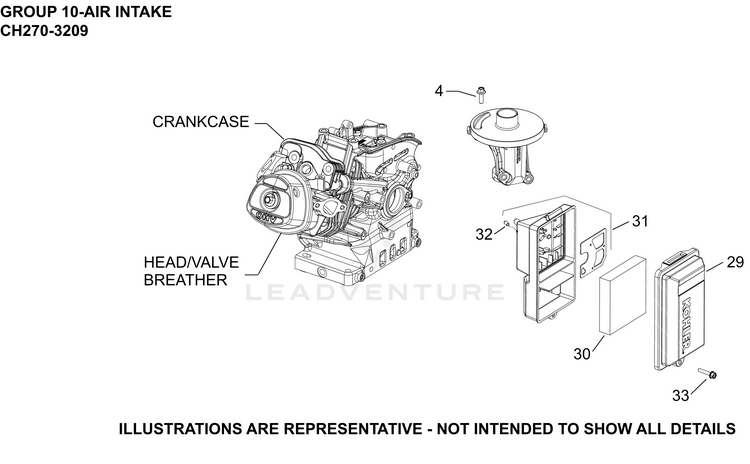

10 Air Intake

...
...
4
SCREW, M6 X18 KOH-25 086 223-S
...
29
COVER, AIR CLEANER KOH-17 096 111-S
...
30
ELEMENT, AIR FILTER KOH-17 083 28-S
...
31
BASE ASSEMBLY, AIR CLEANER KOH-17 094 72-S
...
32
CAP, MASKING (CKY)-(#1717354S) KOH-25 173 35-S
...
33
SCREW, HEX FLANGE SLOTTED (M6) KOH-25 086 369-S
