Kohler CH270-3209 MARKETING BASIC Engine

Model: CH270-3209 BASIC

Back To Assemblies

Save Part Not Listed?
product name

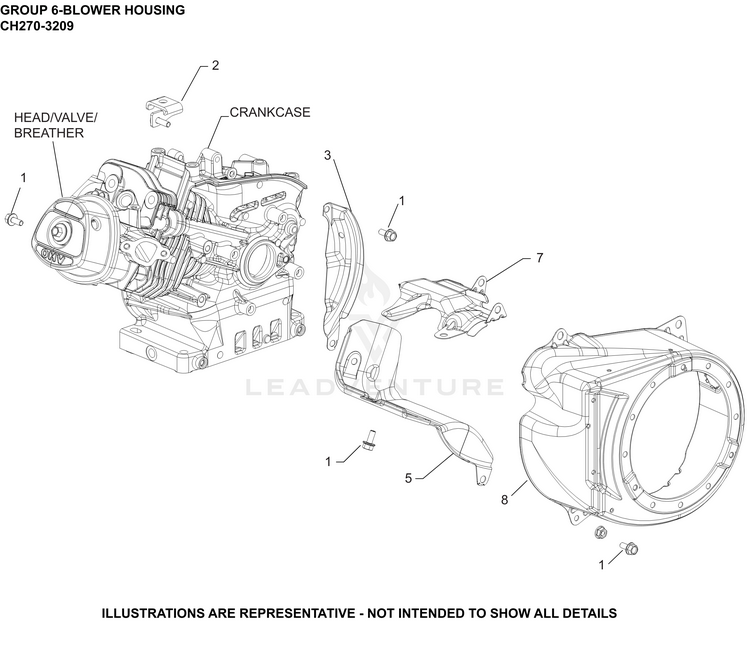

06 Blower Housing

...
...
1
SCREW, HEX FLANGE (M6)-USE 25 086 159-S KOH-25 086 433-S
...
2
BRACKET ASSY, BLOWER HOUSING KOH-17 126 143-S
...
3
SHIELD, FLYWHEEL KOH-17 314 02-S
...
5
SHIELD, CYLINDER HEAD KOH-17 314 92-S
...
7
SHIELD, UPPER HEAT KOH-17 314 08-S
...
8
HOUSING, BLOWER ASSEMBLY KOH-17 027 09-S
