Kohler CH270-3159 MARKETING BASIC

Model: CH270-3159 GROSS POWER

Save Part Not Listed?

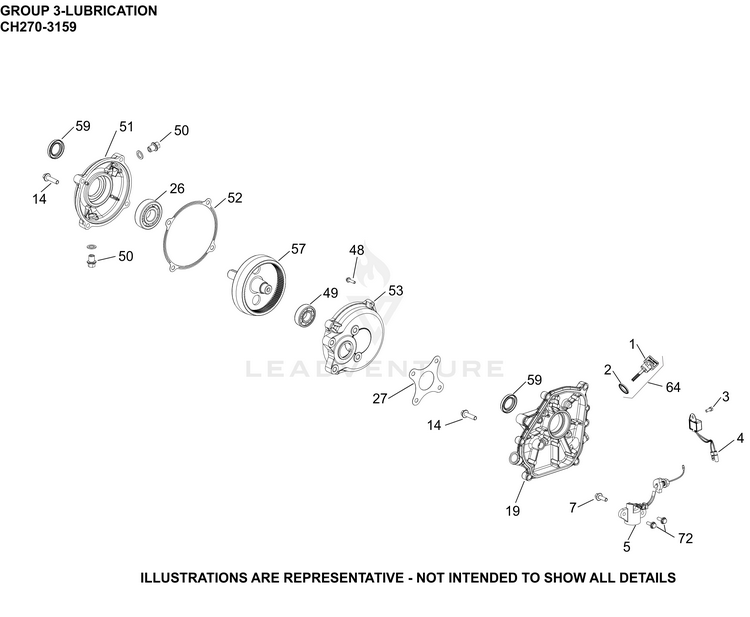

03 Lubrication

DIPSTICK ASSEMBLY KOH-17 038 08-S

SEAL, DIPSTICK KOH-17 032 05-S

SCREW, HEX/PHILLIPS M5 KOH-25 086 244-S

CONTROL, OIL ALERT UNIT KOH-17 526 04-S

SWITCH, OIL SENSOR ASSEMBLY KOH-17 099 09-S

SCREW, M6 X18 KOH-25 086 223-S

SCREW, CLOSURE PLATE KOH-25 086 171-S

PLATE, CLOSURE & BEARING KOH-17 009 113-S

BEARING, 6305 KOH-17 030 18-S

GASKET REDUCTION CASE KOH-17 041 59-S

SCREW, M8 X 35 KOH-25 086 470-S

BEARING, 6204 KOH-17 030 17-S

PLUG, VENT KOH-17 139 10-S

COVER, REDUCTION CH270 6:1 4 Hole Cover KOH-17 009 59-S

GASKET, REDUCTION COVER 4 Hole Gasket KOH-17 041 63-S

CASE, REDUCTION 4 Hole Case KOH-17 561 36-S

SHAFT, PTO KOH-17 144 27-S

SEAL KOH-17 032 29-S

DIPSTICK ASSEMBLY KOH-17 038 08-S

SCREW, M6 X 16 KOH-25 086 337-S
