Kohler CH270-3130 LOMBARDINI

Model: CH270-3130 GROSS POWER

Save Part Not Listed?

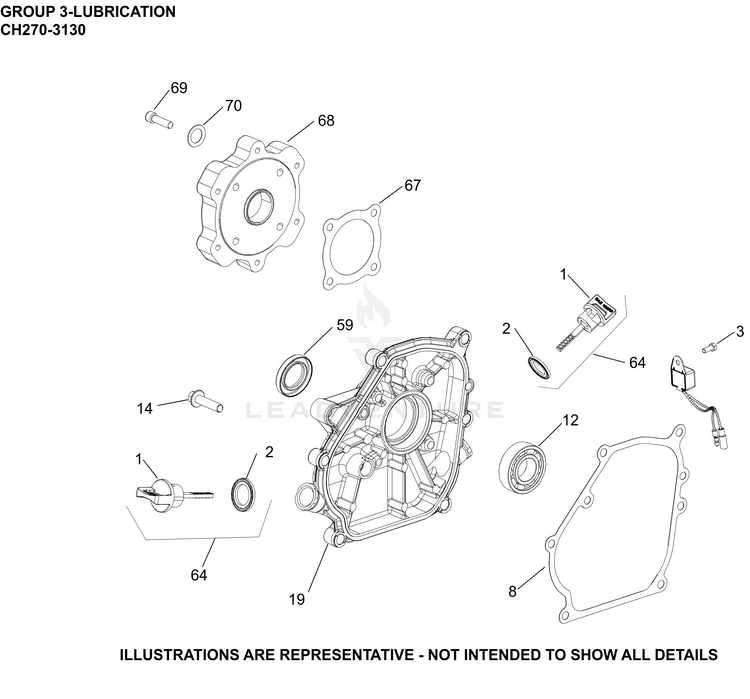

03 Lubrication

DIPSTICK ASSEMBLY KOH-17 038 08-S

SEAL, DIPSTICK KOH-17 032 05-S

SCREW, HEX/PHILLIPS M5 KOH-25 086 244-S

GASKET, CLOSURE PLATE KOH-17 041 01-S

BEARING, BALL KOH-17 030 12-S

SCREW, CLOSURE PLATE KOH-25 086 171-S

KIT, CLOSURE PLATE KOH-17 009 49-S

SEAL KOH-17 032 29-S

DIPSTICK ASSEMBLY KOH-17 038 08-S

GASKET FLANGE, PTO ADAPTER KOH-17 041 55-S

KIT FLANGE, PTOP ADPATER KOH-17 295 17-S

SCREW, 5/16-24 X 1" UNF HSHC KOH-25 086 386-S

WASHER, KNURLED SPRING LOCK KOH-25 468 23-S

Model: 1AHF08390

$16.00

In Stock

Replaced By :

Add To Cart Add To Cart

Save

View All Details
