Kohler CH270-3031 BASIC GROSS POWER @ 4000 RPM 7 HP (5.2 kw)

Model: CH270-3031 GROSS POWER

Save Part Not Listed?

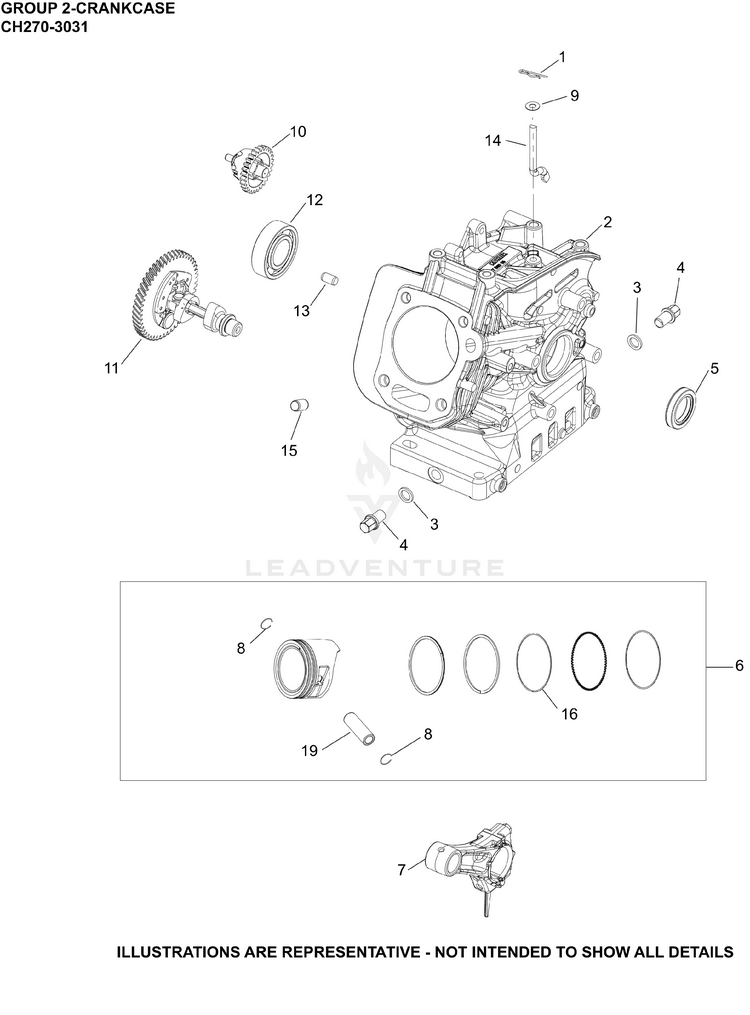

02 CrankCase

CLIP, GOVERNOR SHAFT BEFORE S/N 4732500011 KOH-14 154 01-S

CLIP, GOVERNOR ARM AFTER S/N 4732500001 KOH-17 154 19-S

CRANKCASE ASSEMBLY KOH-17 260 08-S

CRANKCASE KOH-17 561 54-S

WASHER, DRAIN PLUG KOH-18 468 01-S

KIT, DRAIN PLUG KOH-17 139 01-S

SEAL, OIL KOH-17 032 30-S

KIT, PISTON (STD) KOH-17 874 10-S

ROD, CONNECTING ASSEMBLY KOH-17 067 01-S

RETAINER, PISTON PIN KOH-14 018 03-S

WASHER, FLAT (13MM OD) KOH-17 468 21-S

GOVERNOR ASSEMBLY KOH-17 310 08-S

CAMSHAFT ASSEMBLY KOH-17 010 04-S

BEARING, BALL KOH-17 030 12-S

PIN, DOWEL KOH-17 380 21-S

SHAFT, GOVERNOR CROSS KOH-17 144 02-S

DOWEL, CYLINDER HEAD BEFORE S/N 4908500011 KOH-14 380 13-S

RING SET KOH-14 108 02-S

PIN, PISTON KOH-14 380 04-S

Model: 1AHF08390
