Kohler CH260-0012 BASIC GROSS POWER @ 4000 RPM 6 HP (4.5 kW)

Model: CH260-0012 GROSS POWER

Save Part Not Listed?

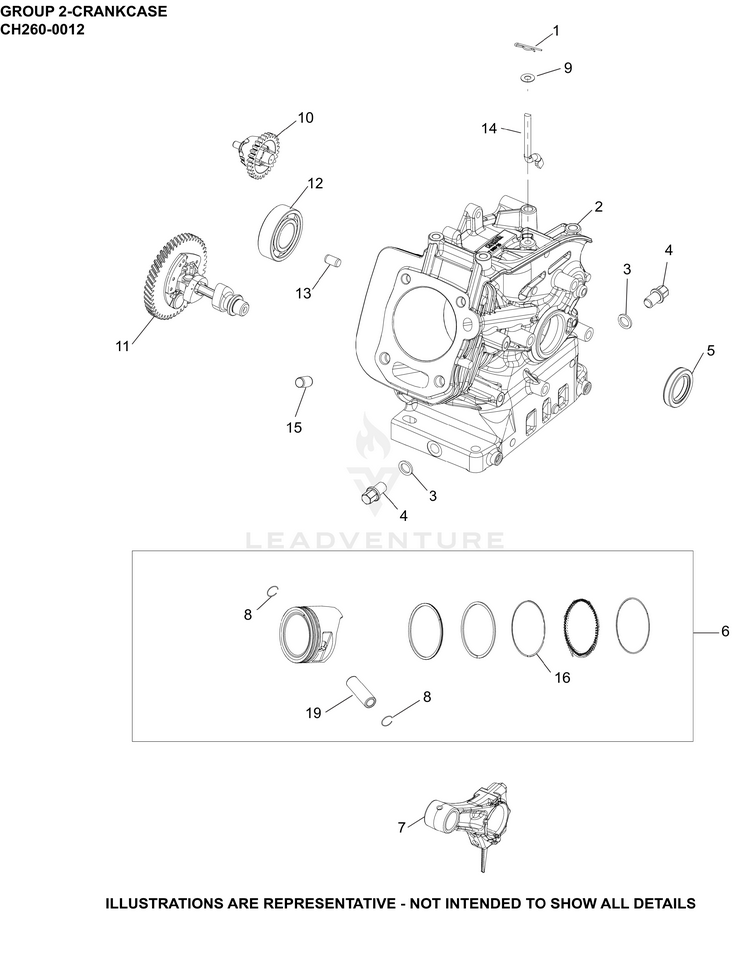

02 CrankCase

CLIP, GOVERNOR SHAFT KOH-14 154 01-S

CRANKCASE ASSEMBLY KOH-17 260 08-S

WASHER, DRAIN PLUG KOH-18 468 01-S

KIT, DRAIN PLUG KOH-17 139 01-S

SEAL, OIL KOH-17 032 30-S

KIT, PISTON (STD) KOH-17 874 10-S

ROD, CONNECTING ASSEMBLY KOH-17 067 01-S

RETAINER, PISTON PIN KOH-14 018 03-S

WASHER, FLAT (13MM OD) KOH-17 468 21-S

GOVERNOR ASSEMBLY KOH-17 310 08-S

CAMSHAFT ASSEMBLY KOH-17 010 04-S

BEARING, BALL KOH-17 030 12-S

PIN, DOWEL KOH-17 380 21-S

SHAFT, GOVERNOR CROSS KOH-17 144 02-S

DOWEL, CYLINDER HEAD KOH-14 380 13-S

RING SET After S/N 4119409408 KOH-14 108 02-S

RING SET (STD) Before S/N 4119409408 KOH-17 108 01-S

PIN, PISTON KOH-14 380 04-S

Model: 1AHF08390

$16.00

In Stock

Replaced By :

Add To Cart Add To Cart

Save

View All Details
