Kohler CH26-78513 THREE R INDUSTRIES 26 HP (19.4 kW)

Model: CH26-78513 THREE R INDUSTRIES 26 HP (19.4 kW)

Back To Assemblies

Save Part Not Listed?
product name

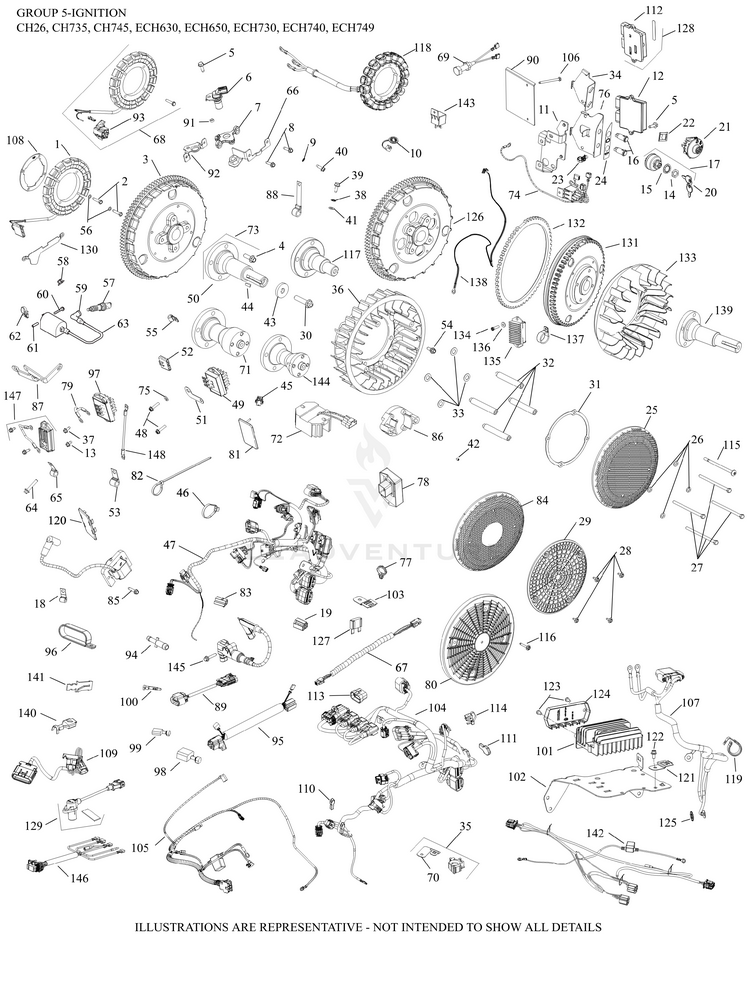

05 Ignition/Charging

...
...
8
SCREW, THREAD FORMING KOH-25 086 398-S
...
12
MODULE, ENG MANAGEMENT - DISC. KOH-24 584 22-S
...
18
CLIP KOH-48 154 02-S
...
25
KIT GRASS SCREEN KOH-54 755 15-S
...
30
SCREW, HEX FLANGE KOH-25 086 361-S
...
38
WASHER, INT TOOTH LOCK 1/4" KOH-X-22-11-S
...
43
WASHER, FLAT 13/32"-(#2546809S) KOH-12 468 03-S
...
44
KEY, 3/16" X 5/8" KOH-X-42-15-S
...
46
TIE, WIRE KOH-25 454 03-S
...
47
HARNESS, WIRING - DISCONTINUED KOH-24 176 55-S
...
47
HARNESS, WIRING-DISCONTINUED KOH-24 176 63-S
...
47
KIT, OIL TEMP HARNESS UPGRADE Before S/N 3244600011 KOH-24 755 134-S
...
54
BOLT, SHOULDER KOH-25 086 47-S
...
57
PLUG, SPARK (PRO SERIES) KOH-25 132 12-S
...
58
NUT, PLASTIC - BLACK KOH-25 100 37-S
...
59
BOOT, SPARK PLUG KOH-24 131 02-S
...
60
SCREW,WSH HD TAP 1/4-14X1 1/2"-DISC. KOH-24 086 48-S
...
61
SPACER KOH-24 112 16-S
...
63
COIL, IGNITION KOH-24 519 02-S
...
79
KIT, GROUND, LEAD KOH-24 518 12-S
...
82
TIE, CABLE KOH-12 454 03-S
...
82
TIE KOH-25 454 04-S
...
NI
KIT, 25 AMP STATOR ASSY. KOH-28 085 02-S
...
NI
KIT, FLYWHEEL ASSEMBLY KOH-24 025 23-S
...
NI
SCREW, PHL HD #11-16X7/8"-(#DSC) KOH-24 086 18-S
...
NI
SPACER-DISCONTINUED KOH-24 112 04-S
...
NI
BRACKET, STATOR WIRE KOH-24 126 139-S
...
NI
FAN KOH-24 157 04-S
...
NI
RELAY, MINI KOH-24 404 01-S
...
NI
WHEEL, SPEED-DISCONTINUED KOH-24 566 01-S
...
NI
CONNECTOR KOH-25 155 04-S
...
NI
CLAMP, INSULATED KOH-25 237 35-S
...
NI
KIT, FULL WAVE CONVERSION KOH-24 755 144-S
...
NI
CONNECTOR (1 CONTACT) KOH-277563-S
...
NI
SCREW, SLT HD CAP M4X0.7X25 KOH-M-403025-S
...
NI
SCREW, THD FROM M5X0.8X30-DISCONTINUED KOH-M-545030-S
...
NI
WASHER, FLAT 3/16" KOH-X-25-92-S
