Kohler CH26-78513 THREE R INDUSTRIES 26 HP (19.4 kW)

Model: CH26-78513 THREE R INDUSTRIES 26 HP (19.4 kW)

Back To Assemblies

Save Part Not Listed?
product name

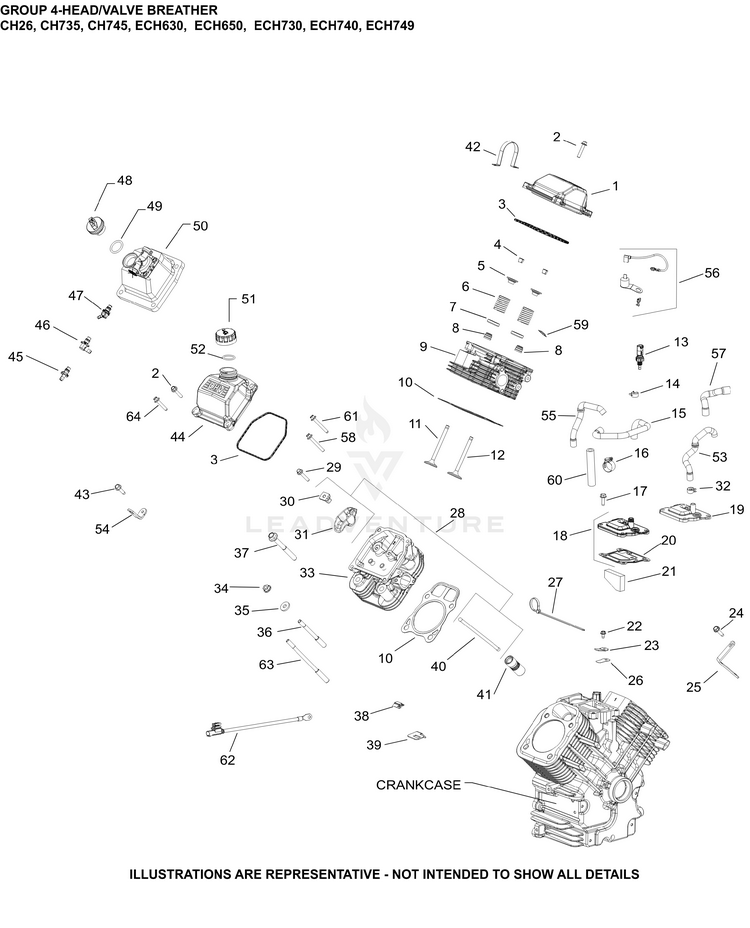

04 CylinderHead/Breather

...
...
1
KIT, VALVE COVER-PLAIN (PLASTIC) KOH-24 755 141-S
...
2
SCREW, HEX FLANGE (M6 X 31.625 DOG PT) KOH-25 086 797-S
...
4
KIT, RETAINER KOH-12 755 03-S
...
6
SPRING, VALVE KOH-24 089 02-S
...
7
RETAINER, SPRING KOH-235011-S
...
8
SEAL, VALVE BAND KOH-25 032 14-S
...
10
KIT, CYLINDER HEAD GASKET KOH-24 841 04-S
...
11
VALVE, EXHAUST KOH-32 016 01-S
...
11
VALVE, EXHAUST (.25) KOH-32 016 02-S
...
12
VALVE, INTAKE (STD) KOH-24 017 01-S
...
12
VALVE, INTAKE (.25)-(#DSC) KOH-24 017 02-S
...
14
CLAMP SPRING HOSE KOH-25 237 37-S
...
17
SCREW, THREAD FORMING KOH-25 086 396-S
...
22
SCREW, FLG THD FRM M5X.8X10 KOH-M-545010-S
...
23
RETAINER, REED KOH-66 018 04-S
...
26
REED, BREATHER Before S/N 4923100011 KOH-24 402 06-S
...
28
KIT, VALVE TRAIN KOH-24 755 66-S
...
29
SCREW, HEX FLANGE KOH-25 086 786-S
...
30
PIVOT, ROCKER ARM KOH-24 599 02-S
...
31
ARM, ROCKER KOH-25 186 01-S
...
34
NUT, FLG M8X1.25 If studs,nuts, and washers were used tomount heads KOH-24 100 10-S
...
34
REED, BREATHER After S/N 4923100001 KOH-24 402 06-S
...
35
WASHER, FLAT 8.6 MM If studs,nuts, and washers were used tomount heads KOH-24 468 16-S
...
36
STUD, M8X1.25 If studs,nuts, and washers were used tomount heads KOH-24 072 09-S
...
40
ROD, PUSH KOH-24 411 05-S
...
44
KIT, VALVE COVER-OIL FILL KOH-24 755 140-S
...
51
KIT, OIL FILL CAP (YELLOW) KOH-24 755 46-S
...
52
O-RING, DIPSTICK KOH-25 153 02-S
...
59
RETAINER, VALVE GUIDE (KM) KOH-24 018 05-S
...
NI
CAP, VALVE SPRING KOH-25 173 28-S
...
NI
FITTING, BARBED HOSE KOH-25 294 54-S
...
NI
KIT, BREATHER ASSEMBLY KOH-24 033 01-S
...
NI
GASKET, BREATHER KOH-24 041 67-S
...
NI
GASKET, BREATHER KOH-24 041 67-S
...
NI
FILTER, BREATHER KOH-24 050 11-S
...
NI
SCREW, FLG M10X1.5X90 If hex. flange screws were used to mount heads KOH-62 086 08-S
...
NI
O-RING (YELLOW), VALVE CO-(#2515324S) KOH-24 153 30-S
...
NI
KIT, CYLINDER HEAD COMPLETE (#1) KOH-24 818 01-S
...
NI
KIT, CYLINDER HEAD COMPLETE (#2) KOH-24 818 02-S
...
NI
HOSE, FLEXIBLE KOH-24 326 63-S
...
NI
STRAP, LIFTING KOH-25 445 06-S
...
NI
LINER, EXHAUST PORT KOH-24 605 07-S
...
NI
KIT, LIFTER KOH-25 351 11-S
...
NI
KIT, CYLINDER HEAD GASKET KOH-32 841 02-S
...
NI
SCREW, HEX HEAD MACHINE KOH-M-410010-S
