Kohler CH255-3164 Medart Engine

Model: CH255-3164 Medart

Back To Assemblies

Save Part Not Listed?
product name

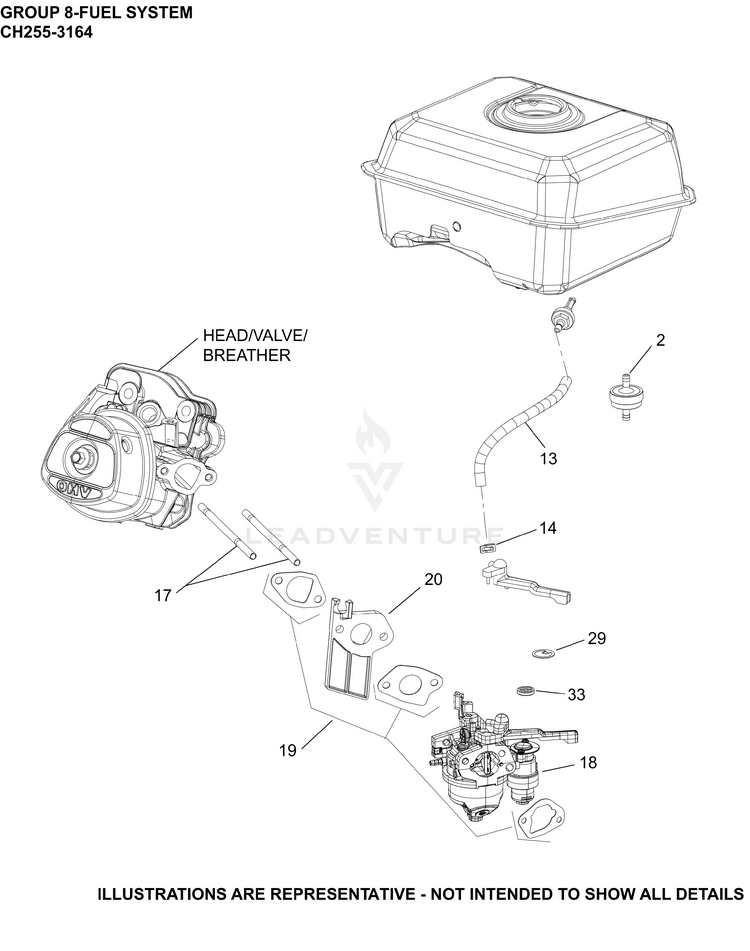

08 Fuel System

...
...
2
FUEL FILTER KOH-17 050 17-S
...
13
LINE, FUEL (10"-CUT TO LENGTH) KOH-25 111 40-S
...
14
CLAMP, FUEL LINE KOH-14 237 01-S
...
17
STUD, CARBURETOR KOH-18 072 06-S
...
18
KIT, CARBURETOR ASSEMBLY-(#DSC) Before S/N 4924100011 KOH-17 853 104-S
...
18
KIT, CARBURETOR After S/N 4924100001 KOH-17 853 117-S
...
19
KIT, INTAKE GASKET KOH-18 041 06-S
...
20
INSULATOR, CARBURETOR KOH-18 168 04-S
...
29
KIT, FUEL SCREEN KOH-17 050 24-S
...
33
SEAL, INLET VALVE KOH-17 032 40-S
...
NI
KIT, HIGH ALT (4000-8000 FT) Before S/N 4924100011 KOH-14 755 08-S
...
NI
KIT, HIGH ALT (4000-8000 FT) After S/N 4924100001 KOH-14 755 14-S
...
NI
KIT, HIGH ALTITUDE (4,000 - 8,000 FT) Before S/N 4924100011 KOH-14 755 04-S
...
NI
KIT, HIGH ALT (8,000+ FT) After S/N 4924100001 KOH-14 755 23-S
...
NI
KIT, CARBURETOR REPAIR (RUIXING) KOH-14 757 03-S
