Kohler CH255-3164 Medart Engine

Model: CH255-3164 Medart

Back To Assemblies

Save Part Not Listed?
product name

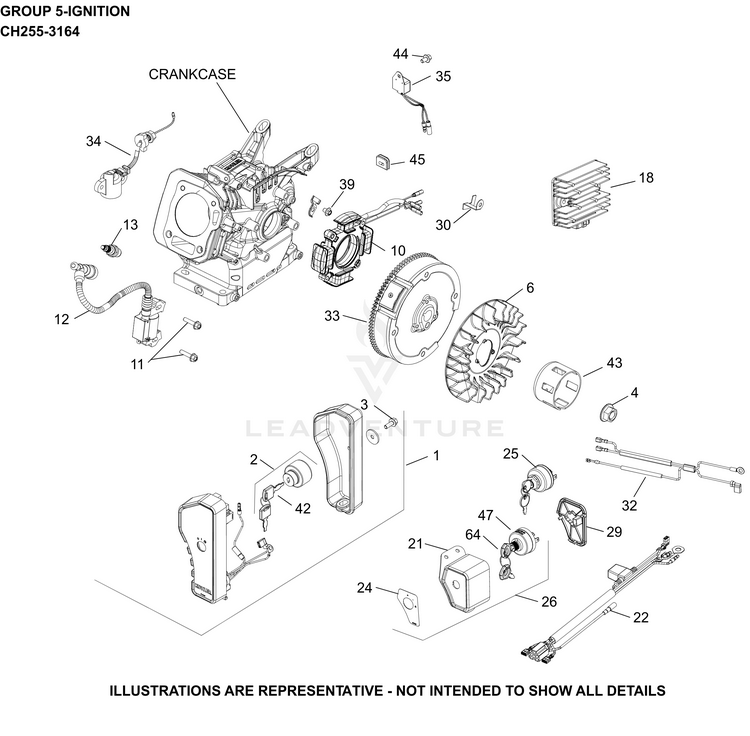

05 Ignition/Charging

...
...
1
VOID HOUSING, KEY BOX ASSY-DISCONTINUED OLD STYLE KOH-17 081 45-S
...
2
SWITCH, KEY ASSEMBLY - (#DSC) OLD STYLE KOH-17 099 07-S
...
3
SCREW, HEX FLANGE (M6)-USE 25 086 159-S OLD STYLE KOH-25 086 433-S
...
3
SCREW, HEX FLANGE (M6)-USE 25 086 159-S KOH-25 086 433-S
...
4
NUT, FLYWHEEL (W/SERRATIONS) KOH-14 100 10-S
...
6
FAN, FLYWHEEL KOH-17 157 06-S
...
10
STATOR ASSEMBLY, 3 POLE KOH-17 085 07-S
...
11
SCREW, HEX FLANGE (M6) KOH-25 086 436-S
...
12
MODULE, IGNITION KOH-18 584 04-S
...
13
PLUG SPARK 12MM RFI KOH-14 132 11-S
...
18
REGULATOR, 10 AMP KOH-17 403 08-S
...
21
KIT, KEYBOX HOUSING ASSEMBLY NEW STYLE KOH-17 081 110-S
...
22
HARNESS, WIRING ASSEMBLY (10 AMP) NEW STYLE KOH-17 176 18-S
...
24
LABEL, KEY BOX NEW STYLE KOH-17 113 76-S
...
25
KEY SWITCH ASSEMBLY KOH-25 099 37-S
...
26
KIT, KEY BOX ASSEMBLY NEW STYLE KOH-17 081 111-S
...
29
COVER, KEY BOX KOH-17 096 92-S
...
30
BRACKET, FIXED STATOR WIRE KOH-17 126 216-S
...
32
HARNESS, REGULATOR WIRING ASSY KOH-17 176 03-S
...
33
FLYWHEEL ASSEMBLY - 10 AMP KOH-18 025 09-S
...
34
SWITCH, OIL SENSOR ASSEMBLY KOH-18 099 17-S
...
35
CONTROL, OIL ALERT UNIT KOH-18 526 01-S
...
39
SCREW, M6 X 8 KOH-25 086 289-S
...
42
KEYS FOR SWITCH-(#DSC) OLD STYLE KOH-17 340 11-S
...
43
CUP, STARTER KOH-17 109 17-S
...
44
SCREW, FLG M6X1.0X10 KOH-M-639010-S
...
45
GROMMET, STATOR WIRE KOH-18 313 01-S
...
47
SWITCH, KEY ASSEMBLY NEW STYLE KOH-25 099 38-S
...
64
KIT, KEY PLASTIC HANDLE (2 PC) NEW STYLE KOH-17 340 18-S
