Kohler CH25-68540 ROHR 25 HP (18.61 kW)

Model: CH25-68540 ROHR 25 HP (18.61 kW)

Back To Assemblies

Save Part Not Listed?
product name

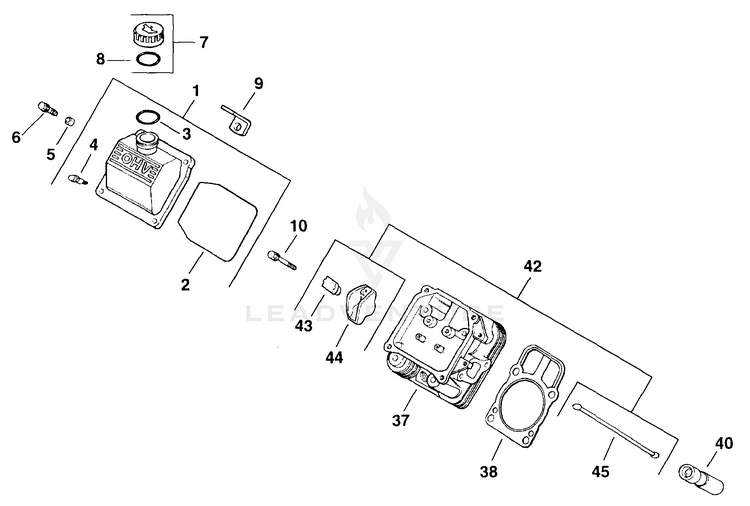

Head/Valve/Breather - Style "B" 4-24-406 (TP-2439-C) Rev 10/4/2006

...
...
1
KIT, VALVE COVER-OIL FILL Includes 2-5 KOH-24 755 140-S
...
2
O-RING (BLACK) KOH-24 153 23-S
...
3
O-RING KOH-24 153 32-S
...
4
SCREW, SHOULDER KOH-24 086 32-S
...
7
KIT, OIL FILL CAP (BLACK) Includes 8 KOH-25 755 13-S
...
8
O-RING, DIPSTICK KOH-25 153 02-S
...
9
STRAP, LIFTING KOH-25 445 06-S
...
10
Screw, hex. flange M6x1.0x34 KOH-M-0640034
...
37
KIT, CYLINDER HEAD COMPLETE (#2) KOH-24 818 02-S
...
38

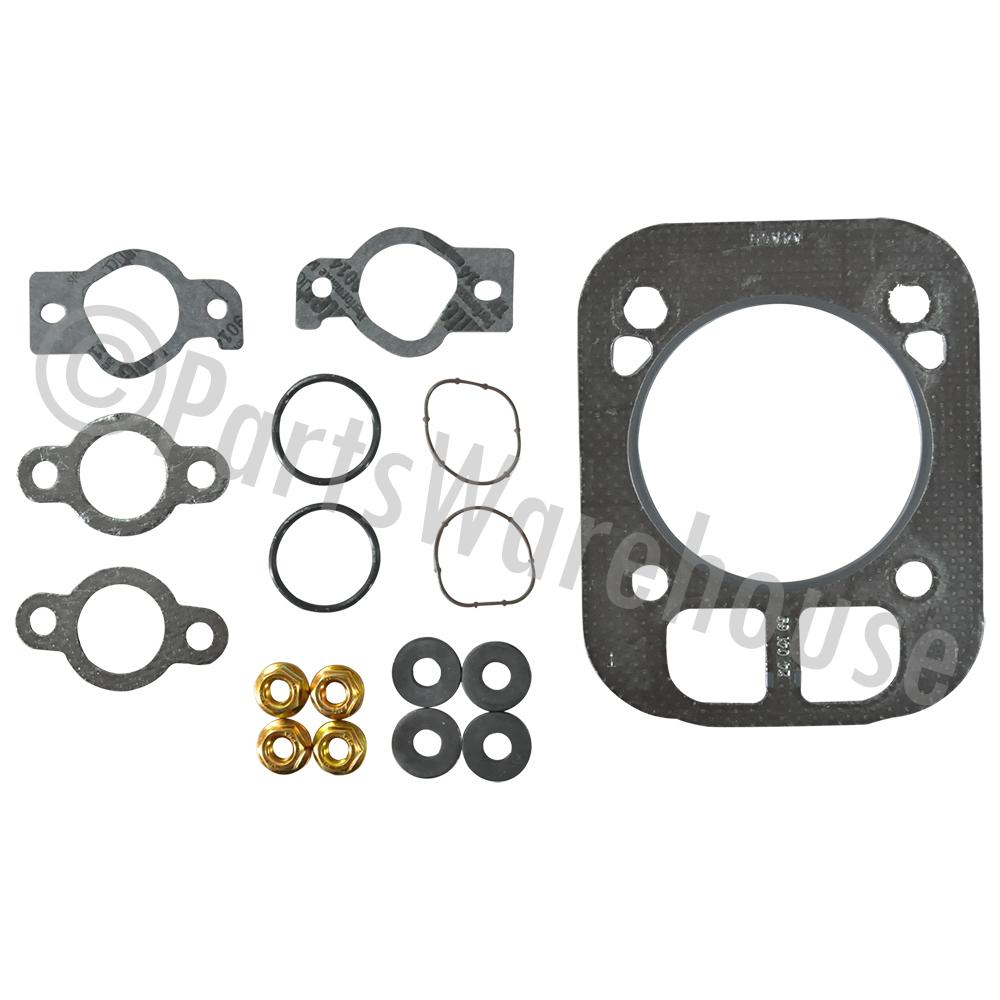

KIT, CYLINDER HEAD GASKET KOH-24 841 04-S
...
40
KIT, LIFTER KOH-25 351 11-S
...
42
KIT, VALVE TRAIN Includes 43-45. Use before Serial No. 2520800017, after Serial No. 2520800007 or after installation of kit, individual marked* components can be ordered for replacement. KOH-24 755 66-S
...
43
PIVOT, ROCKER ARM KOH-24 599 02-S
...
44
ARM, ROCKER KOH-25 186 01-S
...
45
ROD, PUSH KOH-24 411 05-S
