Kohler CH245-3158 MARKETING BASIC GROSS POWER @ 3600 RPM 4.5 HP (3.3 kW)

Model: CH245-3158 GROSS POWER

Save Part Not Listed?

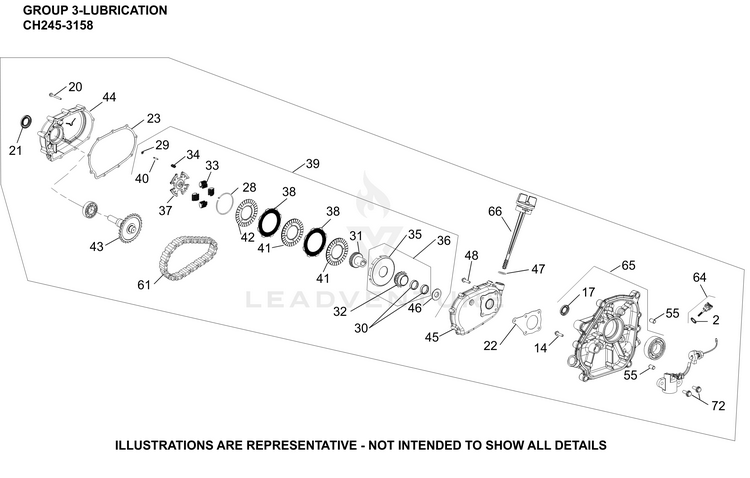

03 Lubrication

SEAL, DIPSTICK KOH-17 032 05-S

SCREW, CLOSURE PLATE KOH-25 086 171-S

SEAL KOH-17 032 29-S

BOLT KOH-25 086 454-S

SEAL, OIL KOH-17 032 31-S

GASKET, REDUCTION CASE KOH-17 041 60-S

GASKET, REDUCTION COVER KOH-17 041 61-S

WEIGHT RETAINER KOH-17 018 18-S

RETAINER, RING KOH-17 018 19-S

CUP, ASSEMBLY KOH-17 109 13-S

GEAR, CLUTCH CENTER KOH-17 043 31-S

CUP, ASSEMBLY KOH-17 109 13-S

WEIGHT, CLUTCH KOH-17 044 24-S

SPRING, CLUTCH HOLDER KOH-17 089 73-S

CUP, ASSEMBLY KOH-17 109 13-S

WEIGHT HOLDER KOH-17 146 44-S

CLUTCH PLATE KOH-17 146 45-S

CLUTCH ASSEMBLY KOH-17 239 02-S

FRICTION DISC KOH-17 530 01-S

PLATE ASSEMBLY, PRESSURE KOH-17 530 03-S

SHAFT, PTO ASSEMBLY KOH-17 144 25-S

COVER, REDUCTION KOH-17 009 55-S

CASE, REDUCTION KOH-17 561 35-S

WASHER, THRUST KOH-17 468 39-S

O-RING, DIPSTICK KOH-17 153 10-S

SCREW, M8 X 35 KOH-25 086 470-S

PIN, DOWEL (8MM)-(#DSC) KOH-14 380 05-S

CHAIN KOH-17 233 09-S

DIPSTICK ASSEMBLY KOH-17 038 08-S

PLATE, CLOSURE & BEARING KOH-18 009 23-S

DIPSTICK ASSEMBLY KOH-17 038 17-S

SCREW, M6 X 16 KOH-25 086 337-S
