Kohler CH245-3152 BASIC GROSS POWER @ 3600 RPM 4.5 HP (3.3 kW)

Model: CH245-3152 GROSS POWER

Back To Assemblies

Save Part Not Listed?
product name

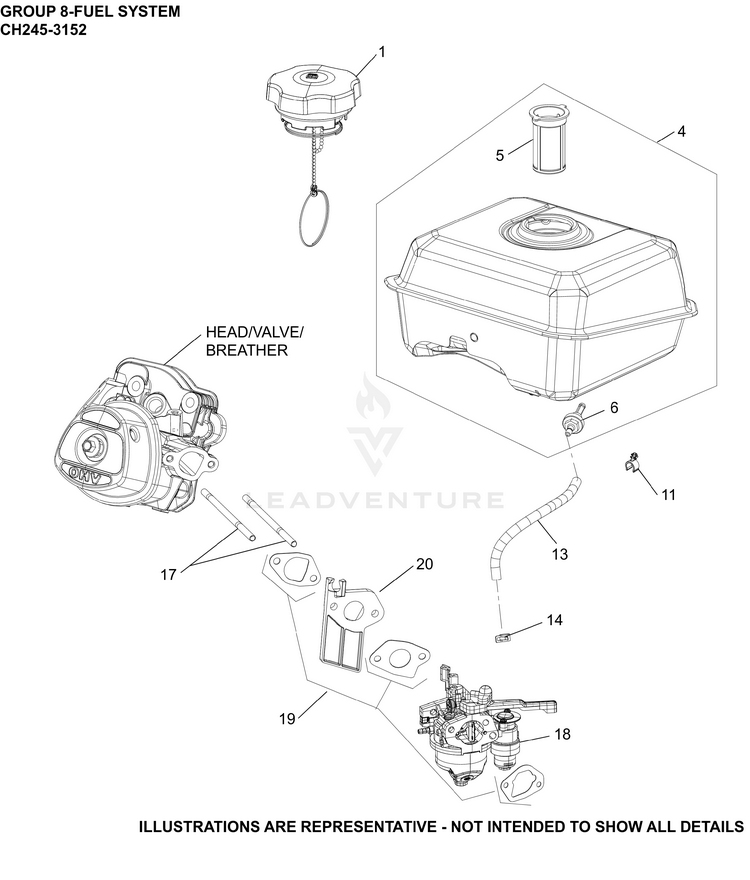

08 Fuel System

...
...
1
CAP, FUEL ASSEMBLY After S/N 4819112018 KOH-17 173 49-S
...
4
KIT, FUEL TANK ASSEMBLY KOH-17 065 79-S
...
5
FILTER, FUEL TANK KOH-17 050 20-S
...
6
FITTING, FUEL ASSY BEFORE S/N 5210300011 KOH-17 294 19-S
...
6
FITTING, FUEL ASSY AFTER S/N 5210300001 KOH-17 294 19-S
...
11
CLIP, FUEL HOSE KOH-17 154 08-S
...
13
LINE, FUEL (10"-CUT TO LENGTH) KOH-25 111 40-S
...
14
CLAMP, FUEL LINE KOH-14 237 01-S
...
17
STUD, CARBURETOR KOH-18 072 06-S
...
18
KIT, CARBURETOR ASSEMBLY-(#17853116S) Before S/N 4924100011 KOH-17 853 103-S
...
18
KIT, CARBURETOR After S/N 4924100001 KOH-17 853 116-S
...
19
KIT, INTAKE GASKET KOH-18 041 06-S
...
20
INSULATOR, CARBURETOR KOH-18 168 04-S
...
NI
KIT, HIGH ALT (4000-8000 FT) Before S/N 4924100011 KOH-14 755 08-S
...
NI
KIT, HIGH ALT (4000-8000 FT) After S/N 4924100001 KOH-14 755 14-S
...
NI
KIT, HIGH ALTITUDE (4,000 - 8,000 FT) Before S/N 4924100011 KOH-14 755 04-S
...
NI
KIT, HIGH ALT (8,000+ FT) After S/N 4924100001 KOH-14 755 23-S
...
NI
KIT, CARBURETOR REPAIR (RUIXING) KOH-14 757 03-S
