Kohler CH245-3152 BASIC GROSS POWER @ 3600 RPM 4.5 HP (3.3 kW)

Model: CH245-3152 GROSS POWER

Back To Assemblies

Save Part Not Listed?
product name

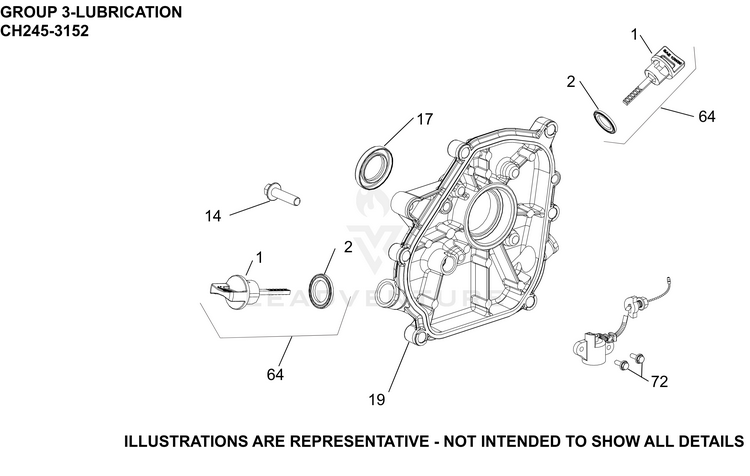

03 Lubrication

...
...
1
DIPSTICK ASSEMBLY KOH-17 038 08-S
...
2
SEAL, DIPSTICK KOH-17 032 05-S
...
14
SCREW, CLOSURE PLATE KOH-25 086 171-S
...
17
SEAL KOH-17 032 29-S
...
19
PLATE, CLOSURE & BEARING KOH-18 009 24-S
...
64
DIPSTICK ASSEMBLY KOH-17 038 08-S
...
72
SCREW, M6 X 16 KOH-25 086 337-S
