Kohler CH245-3039 MARKETING BASIC GROSS POWER @ 3600 RPM 4.5 HP (3.3 kW)

Model: CH245-3039 GROSS POWER

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

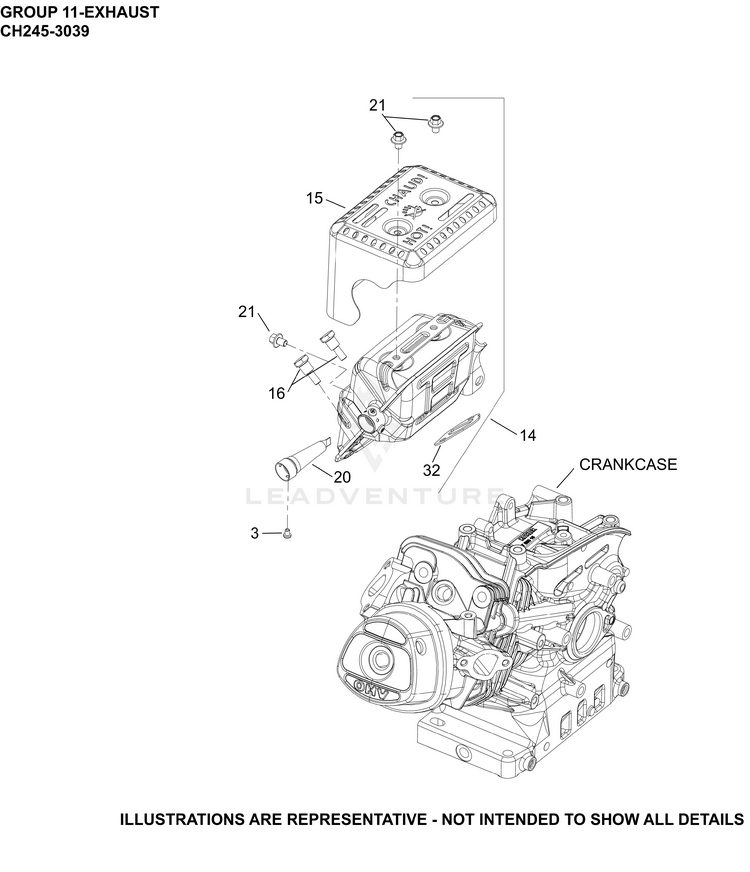

11 Exhaust

...
...
3
SCREW, SPARK ARRESTOR KOH-25 086 190-S
...
14
MUFFLER, ASSEMBLY KOH-17 068 125-S
...
15
KIT, MUFFLER GUARD KOH-17 314 138-S
...
16
SCREW, SHOULDER KOH-25 086 541-S
...
20
SPARK ARRESTOR, ASSEMBLY KOH-17 533 11-S
...
21
SCREW, M6 X 8 HEX FLANGE HEAD KOH-25 086 185-S
...
32
GASKET, MUFFLER KOH-18 041 21-S
