Kohler CH245-3039 MARKETING BASIC GROSS POWER @ 3600 RPM 4.5 HP (3.3 kW)

Model: CH245-3039 GROSS POWER

Save Part Not Listed?

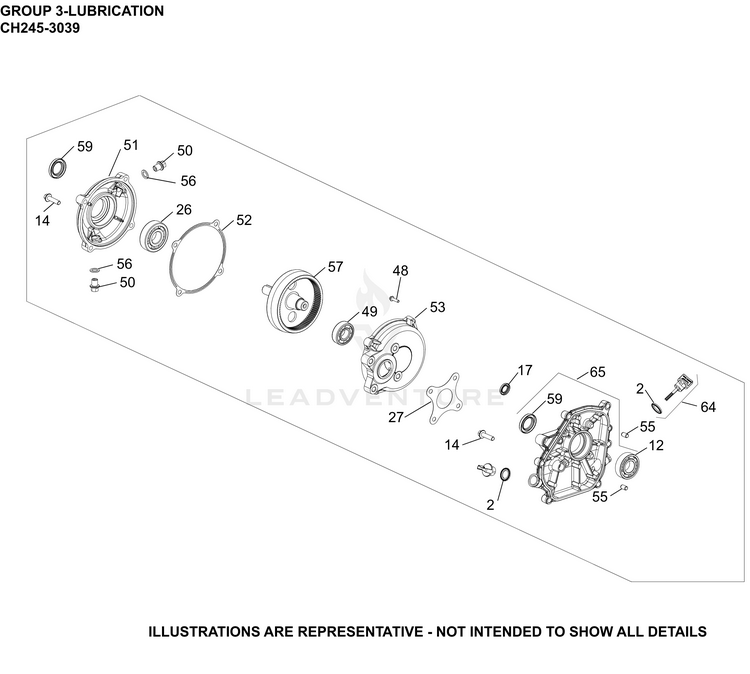

03 Lubrication

SEAL, DIPSTICK KOH-17 032 05-S

BEARING, BALL KOH-17 030 12-S

SCREW, CLOSURE PLATE KOH-25 086 171-S

SEAL KOH-17 032 29-S

BEARING, 6305 KOH-17 030 18-S

GASKET REDUCTION CASE KOH-17 041 59-S

SCREW, M8 X 35 KOH-25 086 470-S

BEARING, 6204 KOH-17 030 17-S

PLUG, VENT KOH-17 139 10-S

COVER, REDUCTION-DISCONTINUED 5 Hole cover KOH-17 009 56-S

COVER, REDUCTION CH270 6:1 4 Hole cover KOH-17 009 59-S

VOIDGASKET, REDUCTION COVER-DISCONTINUED 5 Hole Gasket KOH-17 041 58-S

GASKET, REDUCTION COVER 4 Hole Gasket KOH-17 041 63-S

CASE, REDUCTION-DISCONTINUED 5 Hole Case KOH-17 561 33-S

CASE, REDUCTION 4 Hole Case KOH-17 561 36-S

PIN, DOWEL (8MM)-(#DSC) KOH-14 380 05-S

WASHER, DRAIN PLUG KOH-17 468 17-S

SHAFT, PTO KOH-17 144 27-S

SEAL KOH-17 032 29-S

DIPSTICK ASSEMBLY KOH-17 038 08-S

PLATE, CLOSURE & BEARING KOH-18 009 23-S

Model: 1AHF08390

$16.00

In Stock
