Kohler CH245-3038 MARKETING BASIC GROSS POWER @ 3600 RPM 4.5 HP (3.3 kW)

Model: CH245-3038 GROSS POWER

Save Part Not Listed?

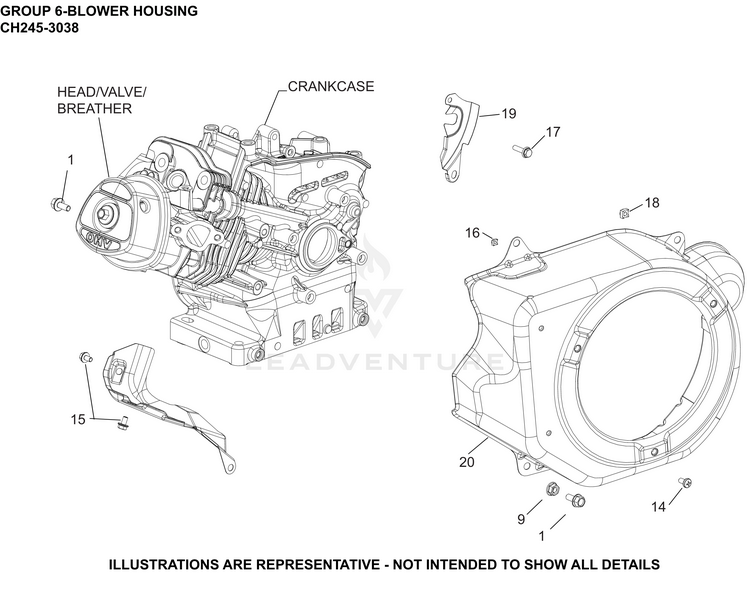

06 Blower Housing

SCREW, HEX FLANGE (M6)-USE 25 086 159-S KOH-25 086 433-S

NUT, HEX FLANGE (M6) KOH-14 100 16-S

SCREW, COVER TO BLOWER HOUSING KOH-25 086 696-S

SCREW, HEX FLANGE (M6) KOH-25 086 411-S

NUT, BLOWER HOUSING (CKY)-(#DSC) KOH-25 100 41-S

SCREW, M6 X 22 KOH-25 086 331-S

NUT, BLOWER HOUSING (CKY)-(#DSC) KOH-25 100 40-S

SHIELD, FLYWHEEL ASSEMBLY KOH-18 096 16-S

KIT, BLOWER HOUSING KOH-17 027 92-S
