Kohler CH23-76563 RIDLEY MOTORCYCLE 23 HP (17.2 KW)

Model: CH23-76563 RIDLEY MOTORCYCLE 23 HP (17.2 KW)

Back To Assemblies

Save Part Not Listed?
product name

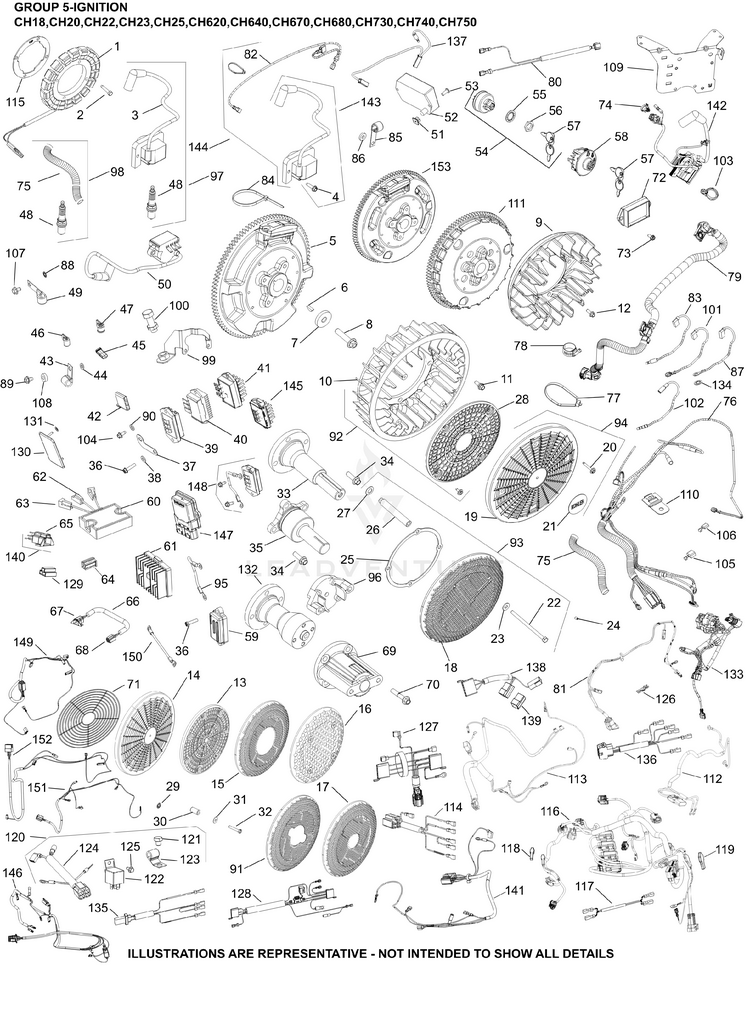

05 Ignition/Charging

...
...
1
KIT, 25 AMP STATOR ASSY. KOH-28 085 02-S
...
1
KIT, 25 AMP CONVERSION-DISCONTINUED KOH-54 755 03-S
...
2
SCREW, THD FROM M5X0.8X30-DISCONTINUED KOH-M-545030-S
...
3
KIT IGNITION MODULE-(#24584262S) KOH-24 584 201-S
...
4
SCREW, THREAD FORMING KOH-25 086 473-S
...
5
FLYWHEEL ASSEMBLY (LW, 22) KOH-24 025 121-S
...
6
KEY, 3/16" X 5/8" KOH-X-42-15-S
...
7
WASHER, FLAT 13/32"-(#2546809S) KOH-12 468 03-S
...
8
SCREW, HEX FLANGE KOH-25 086 361-S
...
10
KIT, FLYWHEEL FAN KOH-24 755 253-S
...
11
BOLT, SHOULDER KOH-25 086 47-S
...
20

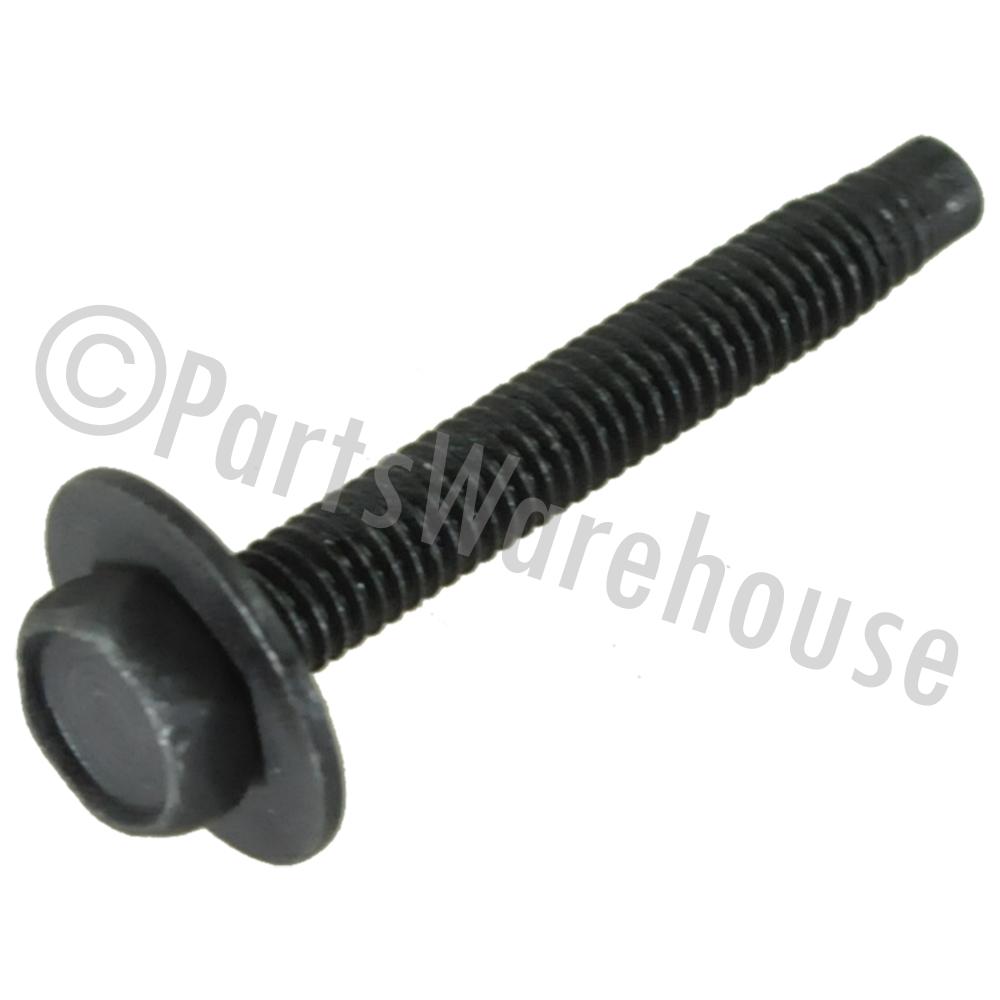

SCREW, FLG SEMS M4x.7x25 KOH-25 086 117-S
...
36
SCREW, HEX FLANGE HI-LO-USE 25 086 785-S KOH-25 086 157-S
...
37
LEAD KOH-24 518 12-S
...
40

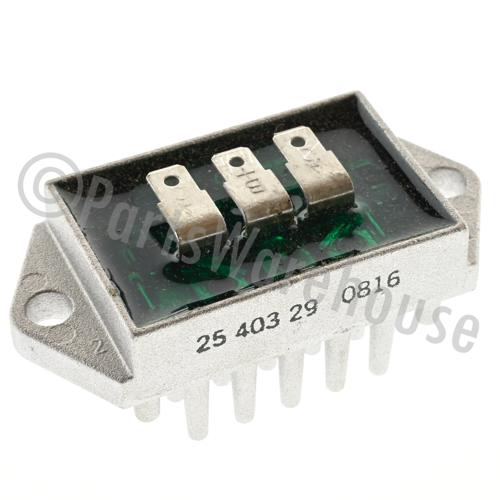

REGULATOR, RECTIFIER KOH-25 403 29-S
...
42
CONNECTOR KOH-25 155 41-S
...
43
CLIP, CABLE KOH-235173-S
...
44
WASHER, FLAT 1/4" (O.D. 1/2") KOH-X-25-63-S
...
45
CONNECTOR (1 CONTACT) KOH-277563-S
...
47
CLIP KOH-210281-S
...
48
PLUG, SPARK (PRO SERIES) KOH-25 132 12-S
...
77
TIE KOH-25 454 07-S
...
82
LEAD, DUPLEX-USE 24 176 311-S KOH-24 176 41-S
...
83
LEAD, OIL SENTRY KOH-24 518 09-S
...
84
TIE KOH-25 454 05-S
...
87
LEAD, 20/25 AMP B+ KOH-25 518 34-S
...
94
KIT GRASS SCREEN KOH-54 755 15-S
...
120
KIT, OIL SWITCH BY-PASS KOH-82 755 25-S
...
121
SCREW, CAP HD 3/8-16x3/4"- DISCONTINUED KOH-X-7-8-S
...
122
RELAY KOH-20 404 01-S
...
122
RELAY KOH-25 404 01-S
...
123
CLIP KOH-47 154 03-S
...
124
HARNESS, WIRING KOH-52 176 18-S
...
125
SCREW, THRD FRM M5X0.8X10 KOH-M-561010-S
...
NI
HARNESS WIRING ASSEMBLY KOH-24 176 150-S
