Kohler CH18-68712 Aksa Engine

Model: CH18-68712 Aksa

Back To Assemblies

Save Part Not Listed?
product name

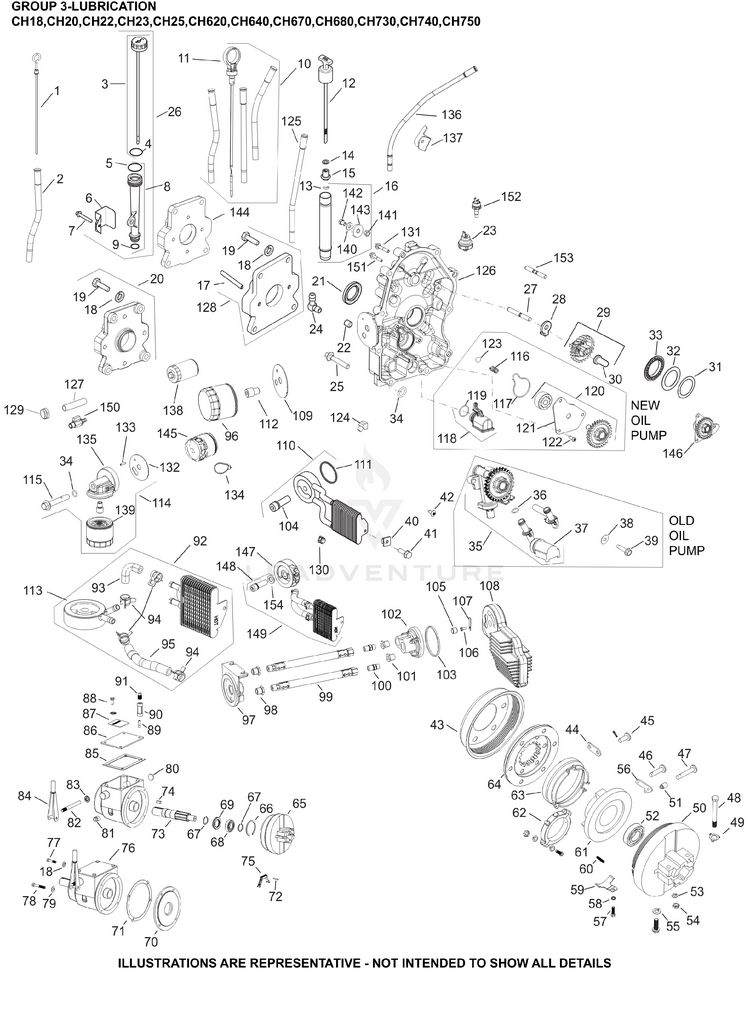

03 Lubrication

...
...
7
SCREW, HEX FLANGE KOH-25 086 618-S
...
10
KIT, DIPSTICK/DIPSTICK TUBES KOH-24 755 121-S
...
11
DIPSTICK KOH-24 038 10-S
...
21
OIL SEAL KOH-25 032 06-S
...
22
PLUG, CTSK PIPE 1/8" KOH-25 139 60-S
...
25
SCREW, FLG M8X1.25X45 KOH-24 086 17-S
...
25
SCREW, FLG M8X1.25X45 KOH-24 086 17-S
...
27
SHAFT, GOVERNOR GEAR KOH-12 144 02-S
...
28
TAB, LOCKING KOH-24 448 02-S
...
29
KIT, GOVERNOR GEAR W/PIN KOH-24 043 12-S
...
30
PIN, GOVERNOR REGULATING KOH-12 380 01-S
...
34
O-RING KOH-24 153 08-S
...
35
KIT, OIL PUMP ASSEMBLY-(#DSC) Pump discontinued order closure plate KOH-24 393 53-S
...
36
O-RING, OIL PICK-UP KOH-24 153 01-S
...
37
PICK-UP, OIL KOH-24 381 04-S
...
38
WASHER, FLAT 6 MM KOH-M-631005-S
...
39
SCREW, THREAD FORMING KOH-25 086 395-S
...
96
OIL FILTER KOH-12 050 01-S
...
112
NIPPLE, OIL FILTER KOH-24 136 09-S
...
126
KIT, CLOSURE PLATE ASSY KOH-24 009 241-S
...
NI
SWITCH, PRESSURE KOH-12 099 04-S
...
NI
WASHER, INT TOOTH LOCK 3/8" KOH-X-22-10-S
