Kohler CH14-1841 TAYLOR TOOL 14 HP

Model: CH14-1841 TAYLOR TOOL 14 HP

Back To Assemblies

Save Part Not Listed?
product name

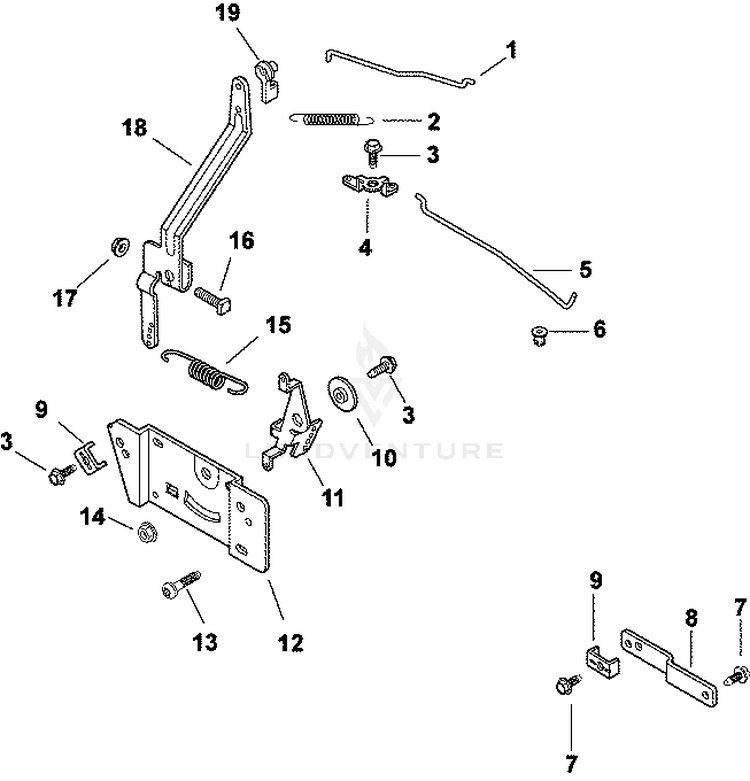

Engine Controls 9-27-26

...
...
1
LINKAGE KOH-12 079 04-S
...
2
SPRING KOH-230117-S
...
3
SCREW, THREAD FORMING KOH-25 086 398-S
...
4
LEVER KOH-12 090 14-S
...
5
LINKAGE, CHOKE KOH-12 079 08-S
...
6
BUSHING, LINKAGE RETAINING KOH-25 158 08-S
...
7
SCREW, FLG THD FRM M5X.8X10 KOH-M-545010-S
...
8
BRACKET KOH-12 126 15-S
...
9
CLAMP, CABLE CABLE KOH-25 237 53-S
...
10
SPACER, CONTROL ASSEMBLY KOH-12 112 07-S
...
11
LEVER KOH-12 090 13-S
...
12
PLATE - DISCONTINUED KOH-12 146 05-S
...
13
SCREW, THREAD FORMING KOH-25 086 403-S
...
14
NUT, FLG M5X.8 KOH-M-541050-S
...
15
SPRING KOH-12 089 17-S
...
16
SCREW, SQUARE HEAD-(#DSC) KOH-12 086 41-S
...
17
NUT, FLG M6X1.0 KOH-M-641060-S
...
18
LEVER, GOVERNOR-(#DSC) KOH-12 090 40-S
...
19
BUSHING, THROTTLE LINKAGE KOH-25 158 11-S
