Kohler CH14-1841 TAYLOR TOOL 14 HP

Model: CH14-1841 TAYLOR TOOL 14 HP

Back To Assemblies

Save Part Not Listed?
product name

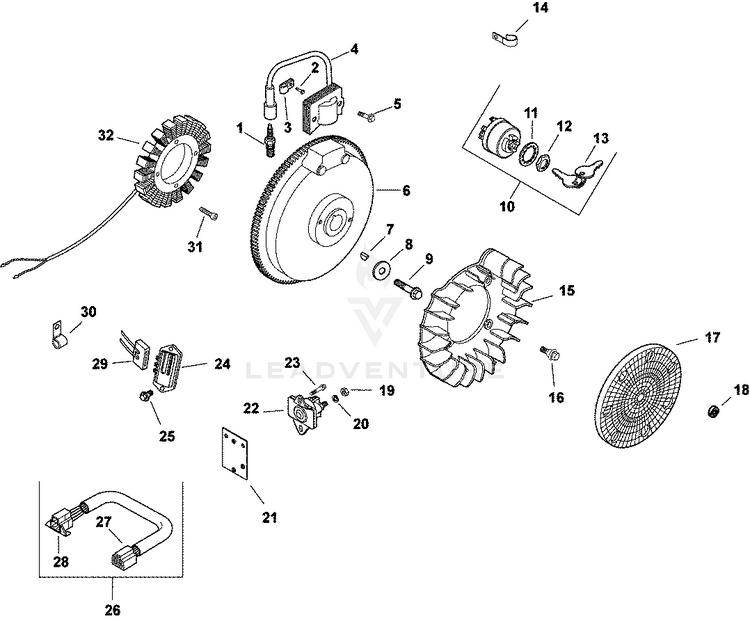

Ignition/Electrical 5-27-263

...
...
1
SPARK PLUG KOH-25 132 08-S
...
2
SCREW, FLG THD FRM M5X.8X10 KOH-M-545010-S
...
3
CLIP KOH-X-728-1-S
...
4
MODULE, IGNITION - (#DSC) KOH-12 584 04-S
...
5
SCREW, THREAD FORMING KOH-25 086 473-S
...
6
KIT, FLYWHEEL KOH-12 025 16-S
...
7
KEY, 3/16" X 5/8" KOH-X-42-15-S
...
8
WASHER, FLAT 13/32"-(#2546809S) KOH-12 468 03-S
...
9
SCREW, HEX FLANGE KOH-25 086 361-S
...
10
KEY SWITCH ASSEMBLY (includes 11-13) KOH-25 099 37-S
...
11
WASHER, INTERNAL TOOTH KOH-48 468 02-S
...
12
NUT, KEY SWITCH KOH-48 100 01-S
...
13
Key (Set of 2) KOH-48 340 01-S
...
14
CLIP, CABLE KOH-235173-S
...
15
FAN-(#DSC) KOH-12 157 06-S
...
16
BOLT, SHOULDER KOH-25 086 47-S
...
17
SCREEN, GRASS-(#DSC) KOH-24 162 03-S
...
18
RETAINER KOH-24 018 03-S
...
19
WASHER, INT TOOTH LOCK 1/4" KOH-X-22-11-S
...
20
NUT, JAM 1/4-20 GRADE 2 KOH-25 100 19-S
...
21
BRACKET, CRANKING RELAY-DISCONTINUED KOH-12 126 74-S
...
22
SOLENOID, STARTER RELAY KOH-25 435 08-S
...
23
SCREW, THREAD FORMING KOH-25 086 397-S
...
24
KIT, REGULATOR RECT (12/15 AMP) KOH-25 403 45-S
...
25
SCREW, FLG M6X1.0X16 KOH-M-639016-S
...
26
CONNECTOR ASSEMBLY (includes 27,28) KOH-25 155 09-S
...
27
CONNECTOR KOH-25 155 06-S
...
28
CONNECTOR KOH-48 155 01-S
...
29
CONNECTOR KOH-25 155 41-S
...
30
CLIP, CABLE KOH-47 154 01-S
...
31
SCREW, THREAD FORMING KOH-25 086 402-S
...
32
KIT, 15 / 20 AMP STATOR (includes 25 452 01-S) KOH-237878-S
...
2515406-S
CLIP NOT ILLUSTRATED KOH-25 154 06-S
...
1217632-S
HARNESS, WIRING-DISCONTINUED NOT ILLUSTRATED KOH-12 176 32-S
...
2545403-S
TIE, WIRE NOT ILLUSTRATED KOH-25 454 03-S
...
1251809-S
LEAD, STARTER SOLENOID - DISCONTINUED NOT ILLUSTRATED KOH-12 518 09-S
...
2451812-S
LEAD NOT ILLUSTRATED KOH-24 518 12-S
...
2535214-S
LIGHT, INDICATOR (FAULT) NOT ILLUSTRATED KOH-25 352 14-S
...
4130401-S
FUSE NOT ILLUSTRATED KOH-41 304 01-S
...
2545201-S
TERMINAL NOT ILLUSTRATED KOH-25 452 01-S
