Kohler CH1000-3031 KPS-20KW GEN-SET (LPAC) Command Pro Twin

Model: CH1000-3031 KPS-20KW GEN-SET (LPAC)

Back To Assemblies

Save Part Not Listed?
product name

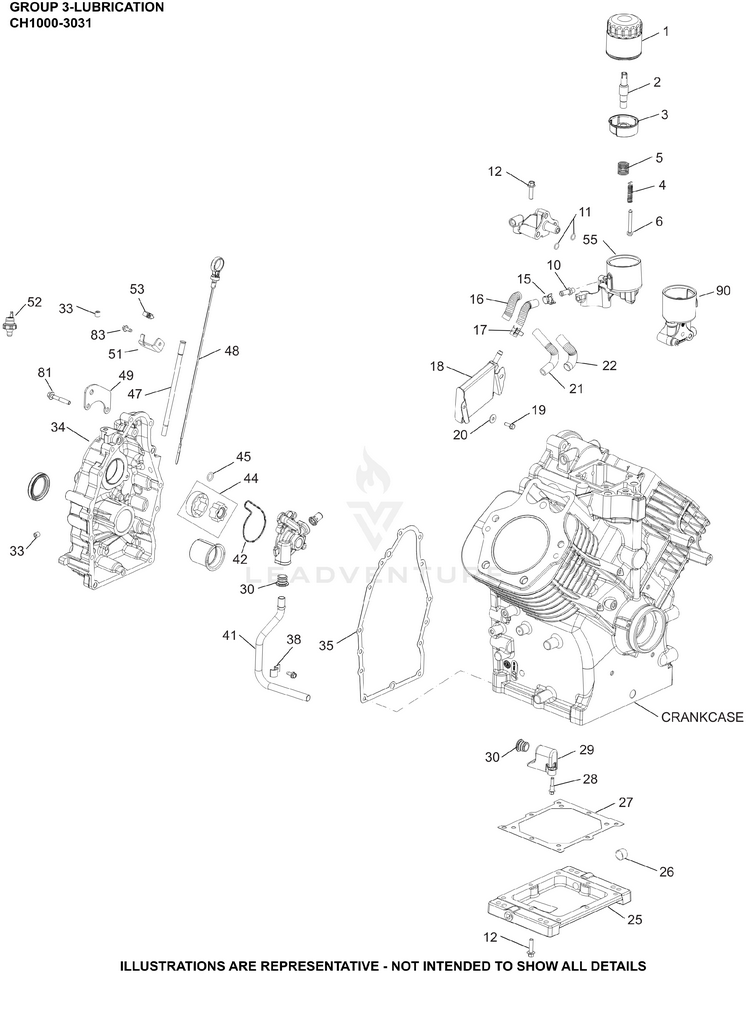

03 Lubrication

...
...
1
OIL FILTER KOH-52 050 02-S
...
2
NIPPLE, OIL FILTER ASSEMBLY KOH-62 136 06-S
...
3
CUP, OIL FILTER ASSEMBLY KOH-62 109 02-S
...
4
SPRING, OIL FILTER VALVE KOH-62 089 11-S
...
5
SPRING, OIL FILTER CUP KOH-62 089 12-S
...
6
VALVE, OIL FILTER KOH-62 462 02-S
...
10
FITTING, BARBED HOSE KOH-25 294 54-S
...
11
O-RING, OIL PICK-UP KOH-24 153 01-S
...
12
SCREW, FLG M8X1.25X30 KOH-M-851030-S
...
15
CLAMP KOH-25 237 02-S
...
16
SLEEVE, FUEL LINE KOH-25 431 12-S
...
17
HOSE, OIL RETURN KOH-62 326 10-S
...
18
COOLER, OIL ASSEMBLY KOH-62 594 05-S
...
19
SCREW, HEX FLANGE KOH-25 086 786-S
...
20
WASHER, FLAT 1/4" KOH-X-25-52-S
...
21
HOSE, OIL SUPPLY KOH-62 326 06-S
...
22
SLEEVE, FUEL LINE KOH-25 431 12-S
...
25
OIL RESERVOIR KOH-62 199 14-S
...
26
BUSHNG,REDCR 1/2"-1/8" NPT STL KOH-25 158 19-S
...
27
GASKET, OIL RESERVOIR KOH-62 041 22-S
...
28
SCREW, SHD THD FRM M6X.0X6.5 KOH-32 086 01-S
...
29
HOUSING, OIL PICK-UP ASSEMBLY KOH-62 081 06-S
...
30
SEAL, PICK-UP TUBE KOH-62 032 19-S
...
33
PLUG, CTSK PIPE 1/8" KOH-25 139 60-S
...
34
KIT, CLOSURE PLATE-DISCONTINUED KOH-62 009 35-S
...
35
GASKET, OIL PAN KOH-62 041 21-S
...
38
CLAMP KOH-62 237 02-S
...
41
TUBE, OIL PICK-UP Before S/N 5005500011 KOH-62 123 42-S
...
41
TUBE, OIL PICK-UP After S/N 5005500001 KOH-62 123 42-S
...
42
O-RING, OIL PUMP HOUSING KOH-62 153 04-S
...
44
PUMP ASSEMBLY, OIL/GEROTOR KOH-62 393 01-S
...
45
O-RING KOH-24 153 08-S
...
47
KIT, DIPSTICK TUBE KOH-62 123 15-S
...
48
DIPSTICK, LPAC KOH-62 038 11-S
...
49
STRAP, LIFTING KOH-62 445 10-S
...
51
BRACKET, DIPSTICK TUBE KOH-62 126 13-S
...
52
SWITCH, OIL PRESSURE KOH-48 099 07-S
...
53
CLAMP, HOSE KOH-25 237 31-S
...
55
KIT, OIL FILTER HOUSING KOH-62 081 34-S
...
81
SCREW, HEX FLANGE KOH-25 086 618-S
...
83
SCREW, THREAD FORMING KOH-25 086 404-S
...
90
HOUSING, OIL PUMP ASSEMBLY KOH-62 393 20-S
