Kohler CH1000-3031 KPS-20KW GEN-SET (LPAC) Command Pro Twin

Model: CH1000-3031 KPS-20KW GEN-SET (LPAC)

Back To Assemblies

Save Part Not Listed?
product name

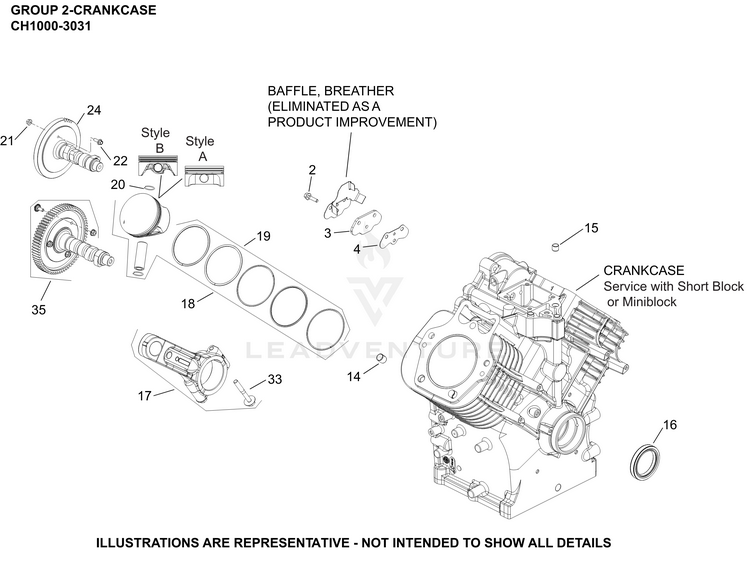

02 CrankCase

...
...
2
SCREW, HEAVY HEX FLANGE KOH-25 086 776-S
...
3
KIT, COVER, LIFTER FEED KOH-62 096 29-S
...
4
GASKET, LIFTER FEED COVER KOH-62 041 24-S
...
14
PIN, LOCATING KOH-24 380 16-S
...
15
PIN KOH-15 380 01-S
...
16
SEAL, OIL FW SIDE, BLACK-(#2503221S) KOH-25 032 17-S
...
17
CONNECTING ROD ASSEMBLY KOH-62 067 13-S
...
18
KIT, PISTON (STD) KOH-62 874 17-S
...
18
KIT, PISTON (0.25 OS) KOH-62 874 18-S
...
18
KIT, PISTON (0.50 OS) KOH-62 874 19-S
...
19

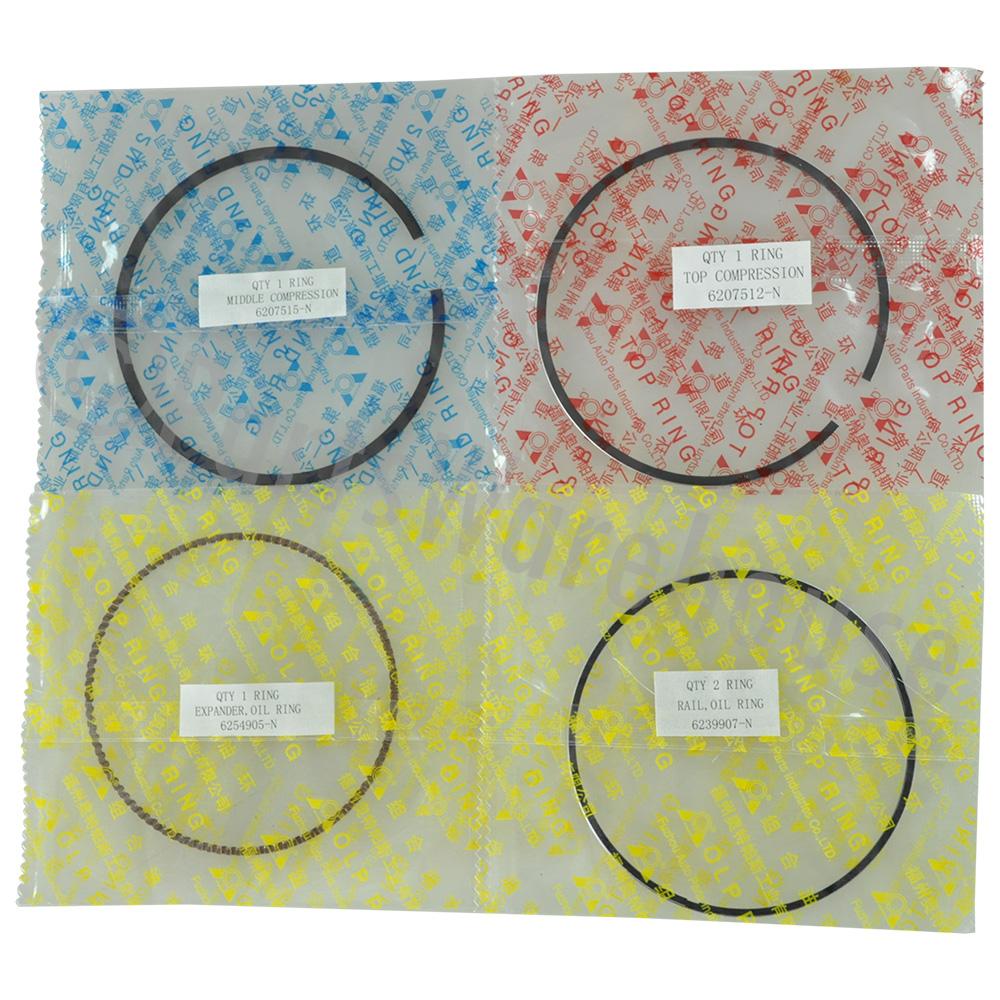

RING, SET PISTON (STD) "STYLE B ONLY" KOH-62 108 07-S
...
20
RETAINER, PISTON PIN KOH-62 018 04-S
...
21
NUT, FLG M6X1.0 KOH-M-641060-S
...
22
SCREW,HEX FLNGE KOH-25 086 129-S
...
24
KIT, CAMSHAFT AFTER S/N 5227100001 KOH-62 012 22-S
...
33
KIT, ROD BOLTS KOH-25 086 677-S
...
35
KIT, CAMSHAFT-DISCONTINUED KOH-62 010 13-S
...
NI
KIT, CAMSHAFT-(#6201222S) BEFORE S/N 5227100011 KOH-62 012 18-S
