Kohler CH1000-0011 MAGNETO 37 HP (27.5 kW)

Model: CH1000-0011 MAGNETO 37 HP (27.5 kW)

Back To Assemblies

Save Part Not Listed?
product name

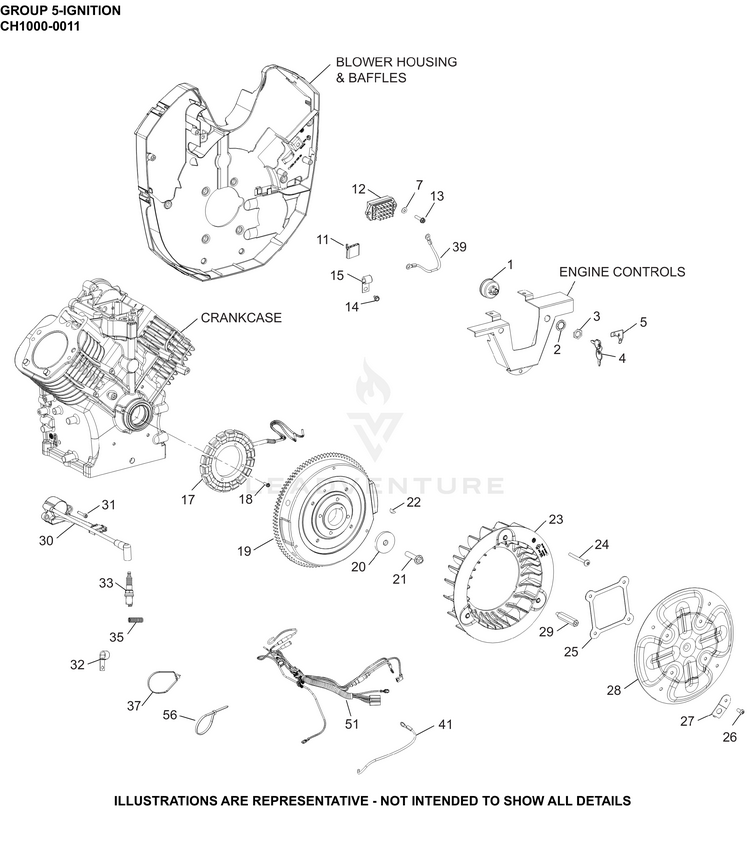

05 Ignition/Charging

...
...
1
SWITCH ASSEMBLY, KEY KOH-25 099 29-S
...
2
WASHER, INTERNAL TOOTH KOH-48 468 02-S
...
3
NUT, KEY SWITCH KOH-48 100 01-S
...
4
KEY, SET OF 2 KOH-48 340 01-S
...
5
DECAL, KEYSWITCH KOH-62 113 09-S
...
7
WASHER, FLAT 7/32" KOH-25 468 07-S
...
11
CONNECTOR KOH-25 155 41-S
...
12
REGULATOR, RECTIFIER KOH-25 403 32-S
...
13
SCREW, HEX FLANGE HI-LO-USE 25 086 785-S KOH-25 086 157-S
...
14
SCREW, FLG THD FRM M5X.8X10 KOH-M-545010-S
...
15
CLIP, CABLE KOH-25 154 12-S
...
15
CLIP, CABLE KOH-47 154 01-S
...
17
KIT, 15 / 20 AMP STATOR KOH-237878-S
...
18
SCREW, THREAD FORMING KOH-25 086 402-S
...
19
FLYWHEEL ASSEMBLY KOH-62 025 05-S
...
20
WASHER, FLAT 13/32" KOH-62 468 01-S
...
21
SCREW, HEX FLANGE KOH-25 086 361-S
...
22
KEY, 3/16" X 5/8" KOH-X-42-15-S
...
23
KIT, FAN AND SPACERS KOH-62 157 02-S
...
24
SCREW, TRS HD M6X1.0X65 KOH-25 086 132-S
...
25
STIFFENER, GRASS SCREEN KOH-62 442 01-S
...
26
SCREW,HEX FLNGE KOH-25 086 129-S
...
27
PLATE, GRASS SCREEN WASHER KOH-62 146 15-S
...
28
KIT, GRASS SCREEN KOH-62 162 08-S
...
29
STUD, GRASS SCREEN KOH-62 072 01-S
...
30
MODULE, SPARK ADVANCE (DSAI) ASSEMBLY KOH-62 584 17-S
...
31
SCREW, SKT THD FRM M5X0.8X25 KOH-M-561025-S
...
32
CLIP, CABLE KOH-25 154 04-S
...
33
PLUG, SPARK KOH-62 132 04-S
...
35
SLEEVE, CORRUGATED KOH-62 431 02-S
...
37
TIE, CABLE KOH-12 454 03-S
...
37
TIE KOH-25 454 07-S
...
39
KIT, GROUND, LEAD KOH-24 518 12-S
...
41
LEAD, B+ TO STARTER SOLENOID KOH-62 518 01-S
...
51
HARNESS,WIRING (DSAI,KEYSWITCH) KOH-62 176 13-S
...
56
TIE KOH-25 454 05-S
