KitchenAid YKSEG700EBS6

Model: YKSEG700EBS6

Save Part Not Listed?
product name

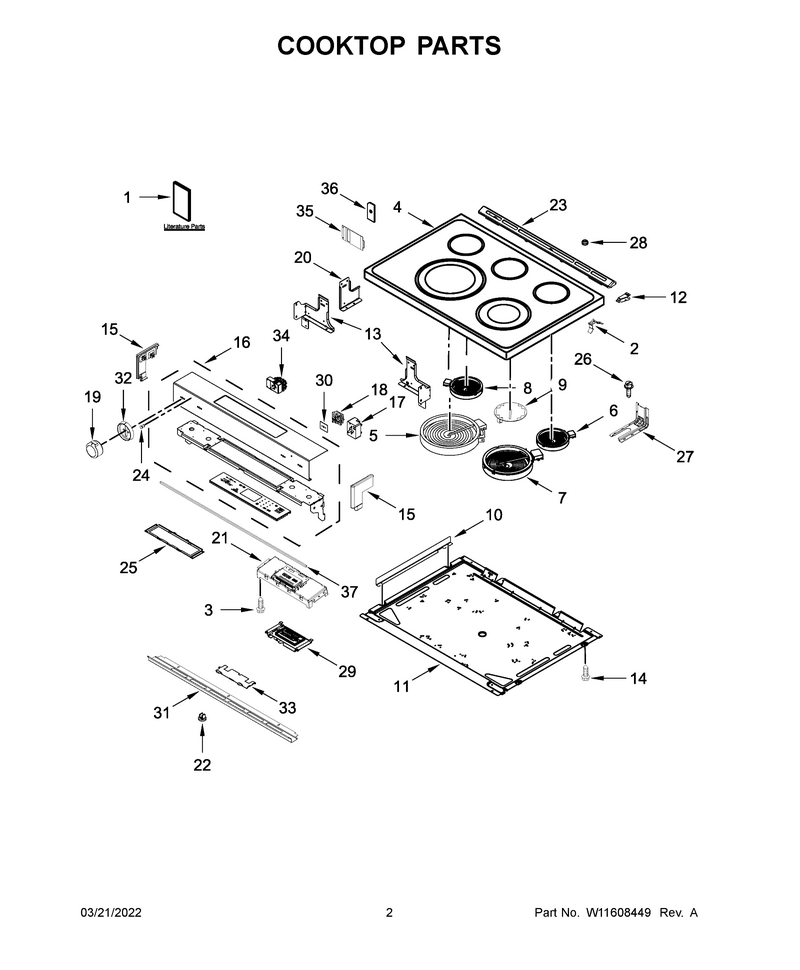

02 - Cooktop Parts

...
...
NI
Clip, Harness WPL-16515
...
1
Owners Manual WPL-W11509603
...
1A
Tech Sheet WPL-W11326876
...
1B
Quick Start Guide WPL-W11435572
...
2
Spring WPL-WPW10225448
...
3
Screw WPL-W11233072
...
4
Cooktop WPL-W10814036
...
5
Elmnt-Surf WPL-W10823720
...
6
Elmnt-Surf WPL-W11171119
...
7
Elmnt-Surf WPL-WPW10251108
...
8
Elmnt-Surf WPL-WPW10342780
...
9
Elmnt-Surf WPL-W11041453
...
10
Bracket, Radiant WPL-W11175271
...
11
Pan, Radiant WPL-W10536275
...
12
Brace, Corner (Right) WPL-W10162252
...
13
Support, Cooktop (Right) WPL-W10289169
...
13A
Support, Cooktop (Left) WPL-W10289170
...
14A
Screw WPL-W11244557
...
15
Endcap (Black (Left)) WPL-W10913412
...
15A
Endcap (Black (Right)) WPL-W10913413
...
16
Panl-Cntrl WPL-W11091880
...
17
Switch-Inf WPL-W10911303
...
18
Switch-Inf WPL-W10917724
...
19
Knob WPL-W11628652
...
19A
Knob WPL-W10877180
...
19B
Knob WPL-W11568640
...
19C
Knob WPL-W10877188
...
20
Bracket, Console (Center) WPL-W10598048
...
21
Cntrl-Elec WPL-W11082269
...
22
Insert WPL-W11025100
...
23
Trim-Vent WPL-W11240519
...
24
Lens-Light WPL-WP3196068
...
25
Bracket, User Interface WPL-W10555923
...
26
Anchor-Tip WPL-WP7101P485-60
...
27
Anchor-Tip WPL-W11502257
...
28
Bumper WPL-W11104127
...
29
Cntrl-Elec WPL-W11105615
...
30
Gasket- In WPL-WP71002569
...
31
Console, Lower Panel (Black) WPL-W10860957
...
32
Bezel-Knob WPL-W10813558
...
33
Bracket, Control WPL-W10558372
...
34
Switch-Inf WPL-W11129442
...
35
Keypad Shield WPL-W11355689
...
36
Gasket WPL-W10882900
...
37
Gasket WPL-W10802441

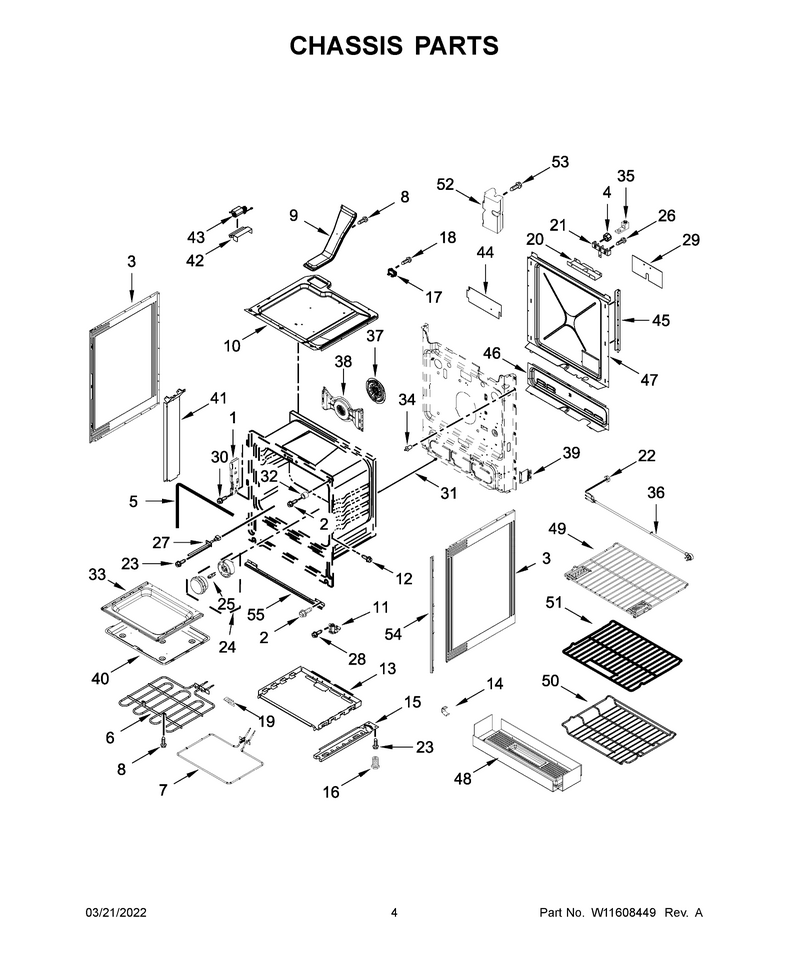

03 - Chassis Parts

...
...
NI
Clip WPL-W10841090
...
1
Hinge-Recv WPL-W10647259
...
2
Screw WPL-W11169708
...
3
Panel-Side WPL-W11730303
...
4
Nut WPL-WP3400029
...
5
Gaskt-Door WPL-W11562931
...
6
Elmnt-Brol WPL-W11238400
...
7
Elmnt-Bake WPL-W10779716
...
8
Screw WPL-W11233072
...
9
Assembly, Flue WPL-W11122085
...
10
Box, Burner Si WPL-W10289168
...
11
Foot-Level WPL-WPW10341186
...
12
Screw WPL-WPW10067840
...
13
Shield, Bake WPL-W10541959
...
14
Clip, Panel WPL-W10137382
...
15
Rail-Base WPL-WPW10306546
...
15A
Rail-Base WPL-WPW10306546
...
16
Foot-Level WPL-WPW10058460
...
17
Fuse-Thrml WPL-WP3196548
...
18
Screw WPL-3196172
...
19
Support, Oven Bottom WPL-W10035900
...
20
Brkt-Srvce WPL-W11728255
...
21
Block-Term WPL-WP8203546
...
22
Nut WPL-WP7103P027-60
...
23
Screw WPL-W11233072
...
24
Sockt-Lite WPL-W11594170
...
25
Bulb-Light WPL-WPW10571723
...
26
Screw WPL-WP3400016
...
27
Sensor WPL-W10833885
...
28
Screw WPL-WP3196557
...
29
Shield, Power Cord WPL-W10655441
...
30
Screw WPL-W10777162
...
31
Rod, Door Switch WPL-W11370463
...
32
Spacer WPL-W10877054
...
33
Bottm-Oven WPL-W10777210
...
34
Swtch-Lite WPL-WP9757262
...
35
Connector WPL-WPW10281322
...
36
Cord-Power WPL-W11226497
...
37
Fan-Convct WPL-W11414552
...
38
Baffl-Conv WPL-W11676564
...
39
Bracket, Oven Support WPL-W10273002
...
40
Bake Pan WPL-W11379357
...
41
Duct, Cover WPL-W10162255
...
42
Duct, Cooling WPL-W10162254
...
43
Fan-Blwr WPL-W11107275
...
44
Shield, Wire WPL-W11117035
...
45
Channel, Rear WPL-W10162241
...
46
Cover, Wire WPL-W10162248
...
47
Cover, Back WPL-W11379354
...
48
Reservoir WPL-W11403917
...
49
Rack-Oven WPL-W11673270
...
50
Rack-Oven WPL-W11256463
...
51
Rack-Oven WPL-W11699908
...
52
Anchor-Tip WPL-W11217187
...
53
Screw-Torx WPL-W11135756
...
54
Barrier Rail, Rubber (Front Left) WPL-W11510561
...
54A
Barrier Rail, Rubber (Front Right) WPL-W11510562
...
55
Bracket, Front Frame WPL-W11464548

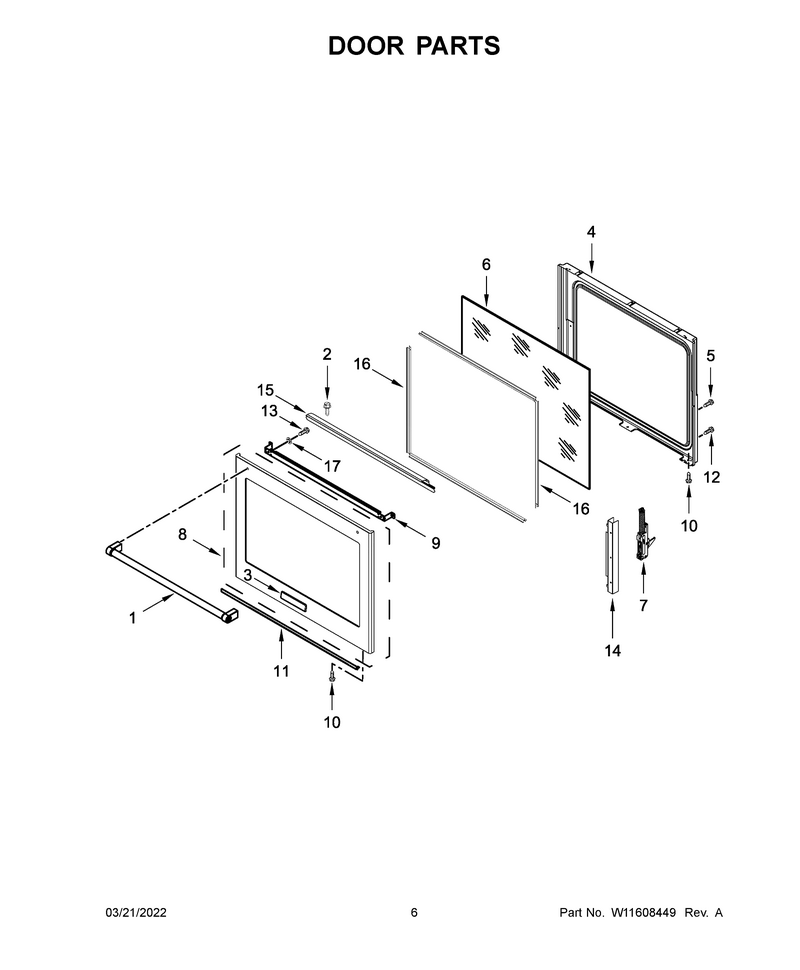

04 - Door Parts

...
...
1
Hndle-Door WPL-W11104399
...
2
Screw WPL-W11245710
...
3
Nameplate WPL-W10839793
...
4
Liner-Door WPL-W10902192
...
5
Screw WPL-WPW10031790
...
6
Glass-Door WPL-W11339500
...
7
Hinge-Door WPL-W11162113
...
8
Glass-Door WPL-W10915619
...
9
Bracket, Glass Upper Handle WPL-W10541911
...
10
Screw WPL-WP355214
...
11
Rail, Horizontal Support WPL-W10813140
...
12
Screw WPL-W10777162
...
13
Screw WPL-WP8533988
...
14
Support WPL-W11744483
...
15
Trim-Vent WPL-W11251351
...
16
Spacr-Glas WPL-W11673273
...
17
Washer WPL-W11676355

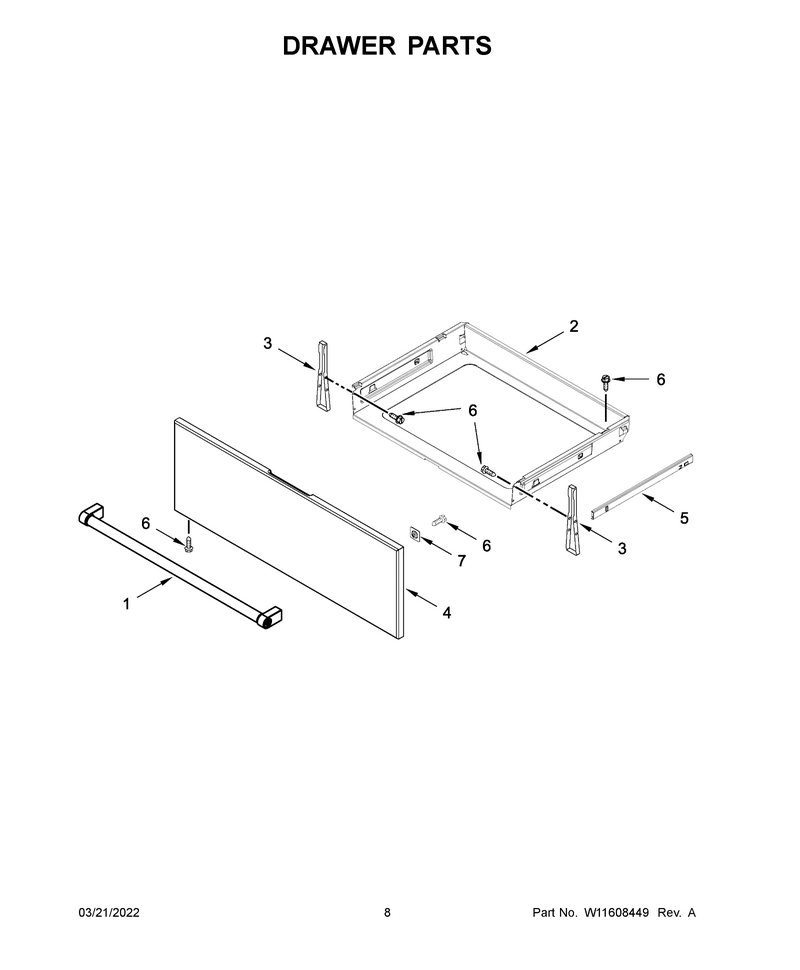

05 - Drawer Parts

...
...
1
Hndle-Door WPL-W11104399
...
2
Drawr-Util WPL-W10813962
...
3
Brkt-Mntg WPL-WPW10318026
...
4
Panel, Drawer Front 9black) WPL-W10860958
...
5
Slide-Drwr WPL-WPW10441804
...
5A
Slide-Drwr WPL-WPW10441805
...
6
Screw WPL-WP3196557
...
7
Spacer WPL-W11190816

...
...
NI
Backsplash Assembly (Stainless) WPL-W10655450
