KitchenAid KSM70SKXXER0

Model: KSM70SKXXER0

Save Part Not Listed?
product name

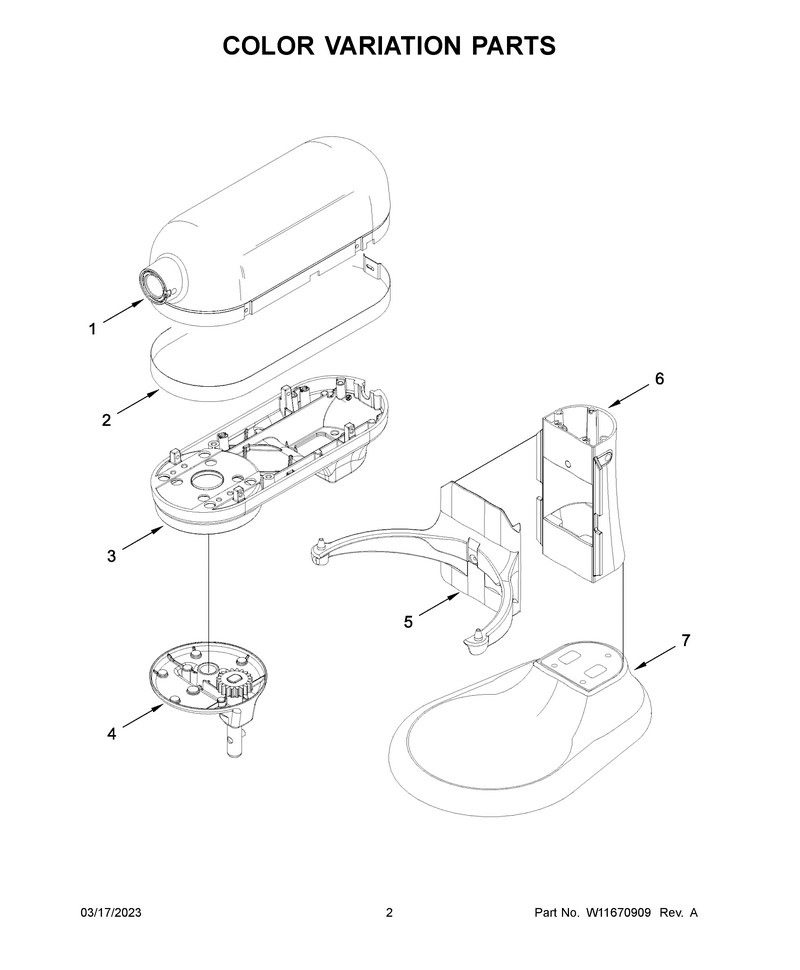

02 - Color Variation Parts

...
...
1
Motor Housing (Blue Steel) WPL-9708730
...
1A
Motor Housing (Blue Velvet) WPL-W11255425
...
1B
Housing WPL-WPW10403016
...
1C
Motor Housing (Matte Dried Rose) WPL-W11236433
...
1D
Motor Housing (Empire Red) WPL-9705300
...
1E
Motor Housing (Feather Pink) WPL-W11520731
...
1F
Housing WPL-WPW10354887
...
1G
Motor Housing (Matte Milkshake) WPL-W11113746
...
1H
Motor Housing (Mineral Water Blue) WPL-W11520729
...
1I
Motor Housing (Pistachio) WPL-9708090
...
1J
Motor Housing (Silver) WPL-9709571
...
1K
Motor Housing (White) WPL-9703311
...
2
Band-Trim WPL-W11755731
...
3
Lower Gearcase (Blue Steel) WPL-W11539056
...
3A
Lower Gearcase (Blue Velvet) WPL-W11520141
...
3B
Lower Gearcase (Candy Apple Red) WPL-W11520129
...
3C
Lower Gearcase (Matte Dried Rose) WPL-W11520139
...
3D
Lower Gearcase (Empire Red) WPL-W11520142
...
3E
Lower Gearcase (Feather Pink) WPL-W11520132
...
3F
Lower Gearcase (Medallion Silver) WPL-W11527634
...
3G
Lower Gearcase (Milkshake) WPL-W11520138
...
3H
Lower Gearcase (Mineral Water Blue) WPL-W11520127
...
3I
Lower Gearcase (Pistachio) WPL-W11520137
...
3J
Lower Gearcase (Silver) WPL-W11520121
...
3K
Lower Gearcase (White) WPL-W11520144
...
4
Planetary (Silent Silver) WPL-W11595416
...
5
Bowl Support And Pins (Blue Steel) WPL-9708741
...
5A
Bowl Support And Pins (Blue Velvet) WPL-W11255416
...
5B
Support WPL-WPW10402998
...
5C
Bowl Support And Pins (Matte Dried Rose) WPL-W11438574
...
5D
Bowl Support And Pins (Empire Red) WPL-9705360
...
5E
Bowl Support And Pins (Feather Pink) WPL-W11520077
...
5F
Support WPL-WPW10354878
...
5G
Bowl Support And Pins (Milkshake) WPL-W11113728
...
5H
Bowl Support And Pins (Mineral Water Blue) WPL-W11520075
...
5I
Bowl Support And Pins (Pistachio) WPL-W11417635
...
5J
Bowl Support & Pins (Silver) WPL-W10327840
...
5K
Bowl Support And Pins (White) WPL-9703674
...
6
Column And Pins (Blue Steel) WPL-9708744
...
6A
Column And Pins (Blue Velvet) WPL-W11255413
...
6B
Column WPL-WPW10402992
...
6C
Column And Pins (Matte Dried Rose) WPL-W11234594
...
6D
Column And Pins (Empire Red) WPL-9705324
...
6E
Column And Pins (Feather Pink) WPL-W11520109
...
6F
Column WPL-WPW10354872
...
6G
Column And Pins (Milkshake) WPL-W11113727
...
6H
Column And Pins (Mineral Water Blue) WPL-W11520107
...
6I
Column And Pins (Pistachio) WPL-9708104
...
6J
Column And Pins (Silver) WPL-9709585
...
6K
Column And Pins (White) WPL-9703673
...
7
Base And Foot Assembly (Blue Steel) WPL-9708747
...
7A
Base And Foot Assembly (Blue Velvet) WPL-W11255409
...
7B
Base WPL-WPW10402986
...
7C
Base And Foot Assembly (Matte Dried Rose) WPL-W11236428
...
7D
Base And Foot Assembly (Empire Red) WPL-9705348
...
7E
Base And Foot Assembly (Feather Pink) WPL-W11520054
...
7F
Base WPL-WPW10354860
...
7G
Base And Foot Assembly (Milkshake) WPL-W11113722
...
7H
Base And Foot Assembly (Mineral Water Blue) WPL-W11520052
...
7I
Base And Foot Assembly (Pistachio) WPL-9708107
...
7J
Base & Foot Assembly (Silver) WPL-9709588
...
7K
Base And Foot Assembly (White) WPL-9703690

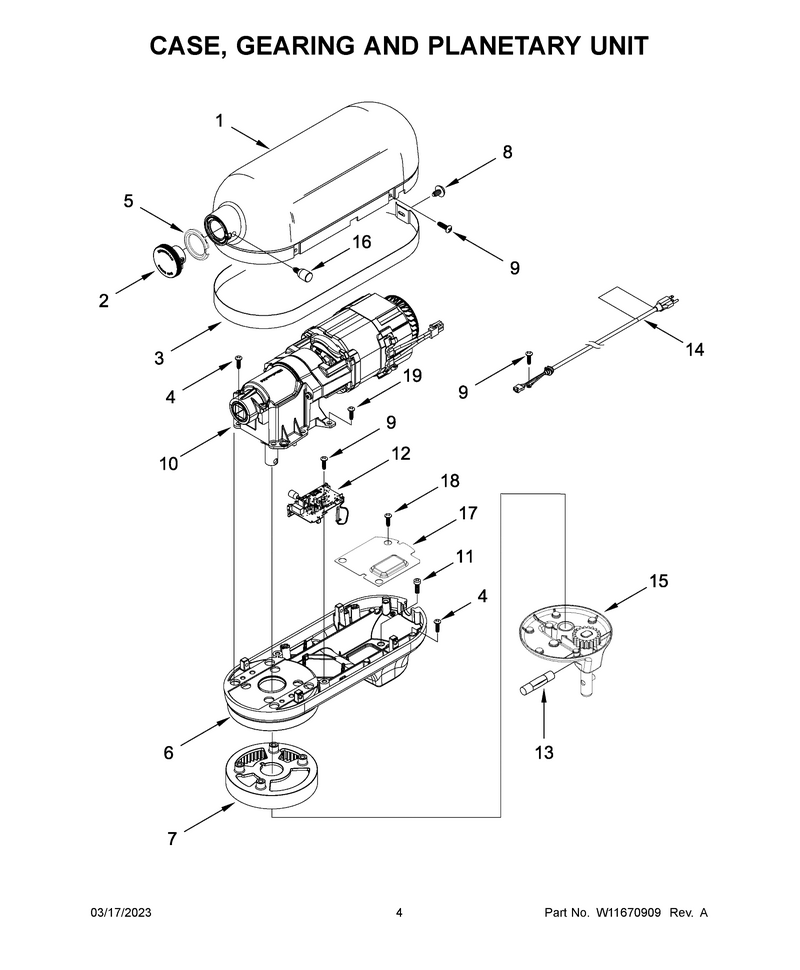

03 - Case, Gearing And Planetary Unit

...
...
1
Following Parts Not Illustrated WPL-N/P
...
2
Cap-Hub WPL-W11647947
...
3
Following Parts Not Illustrated WPL-N/P
...
4
Screw WPL-W10914506
...
5
Cap-Hub WPL-WP9703315
...
6
Following Parts Not Illustrated WPL-N/P
...
7
Gear WPL-W11647948
...
8
Screw WPL-W10853069
...
9
Screw WPL-WP3400814
...
10
Motor WPL-W11647949
...
11
Screw WPL-W10913677
...
12
Control Assembly, 120 Volt WPL-W11512565
...
13
Pin-Groove WPL-WPW10234531
...
14
Cord, Power (Black) WPL-W11459266
...
15
Following Parts Not Illustrated WPL-N/P
...
16
Knob WPL-W11712726
...
17
Plate, Lower Housing WPL-W11560130
...
18
Screw WPL-W11677192
...
19
Screw WPL-W11677193

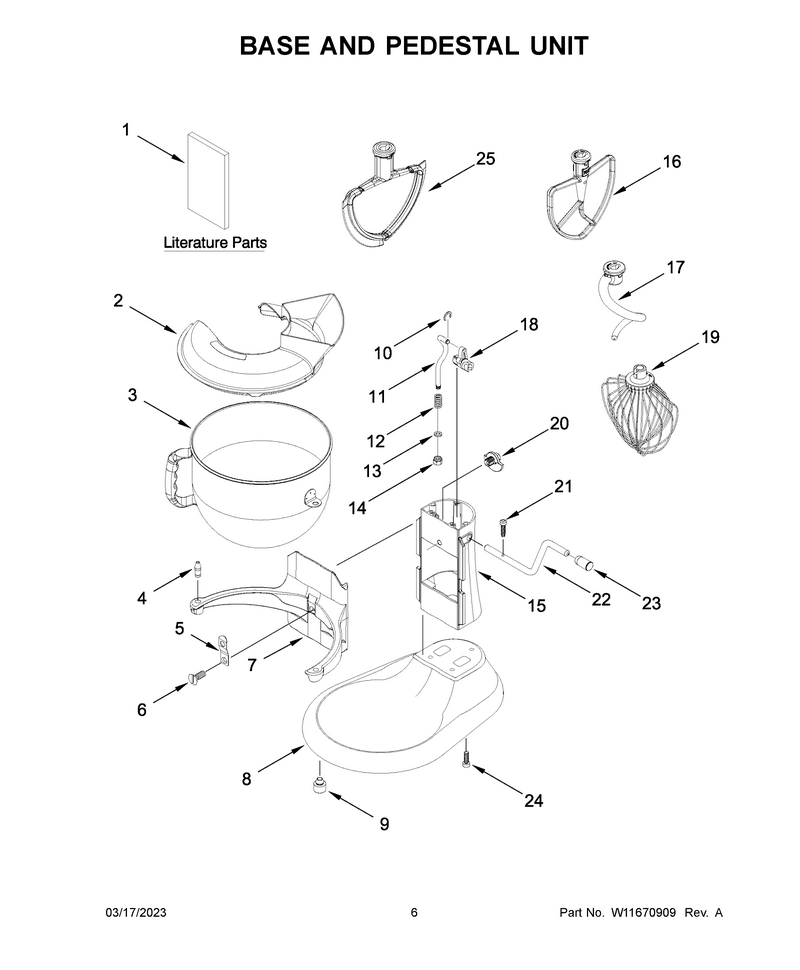

04 - Base And Pedestal Unit

...
...
1
Use And Care Guide WPL-W11519607
...
2
Sheld-Pour WPL-W11647946
...
3
Bowl-Mixer WPL-W11649168
...
4
Panel- Ove WPL-WP240185
...
5
Clip WPL-WPW10504114
...
6
Screw WPL-W10861883
...
7
Following Parts Not Illustrated WPL-N/P
...
8
Following Parts Not Illustrated WPL-N/P
...
9
Foot WPL-WP9708649
...
10
Ring-C WPL-WP9703307
...
11
Rod, Bowl Lift WPL-W11376364
...
12
Spring WPL-4159622
...
13
Washer WPL-W11708395
...
14
Nut WPL-8533907
...
15
Following Parts Not Illustrated WPL-N/P
...
16
Beater-Mxr WPL-W11646967
...
17
Hook-Dough WPL-W11646968
...
18
Arm-Lift WPL-WP9706885
...
19
Whip-Wire WPL-WPW10600940
...
20
Cam WPL-W11721849
...
21
Screw WPL-WP3400814
...
22
Handle, Bowl Lift WPL-W11376371
...
23
Handle WPL-W11682560
...
24
Screw WPL-W10913677
...
25
Beater, Double Flex Edge (Silent Silver) WPL-W11569890
