product name

KitchenAid KSM70SKQXPT0

Model: KSM70SKQXPT0

Save Part Not Listed?
product name

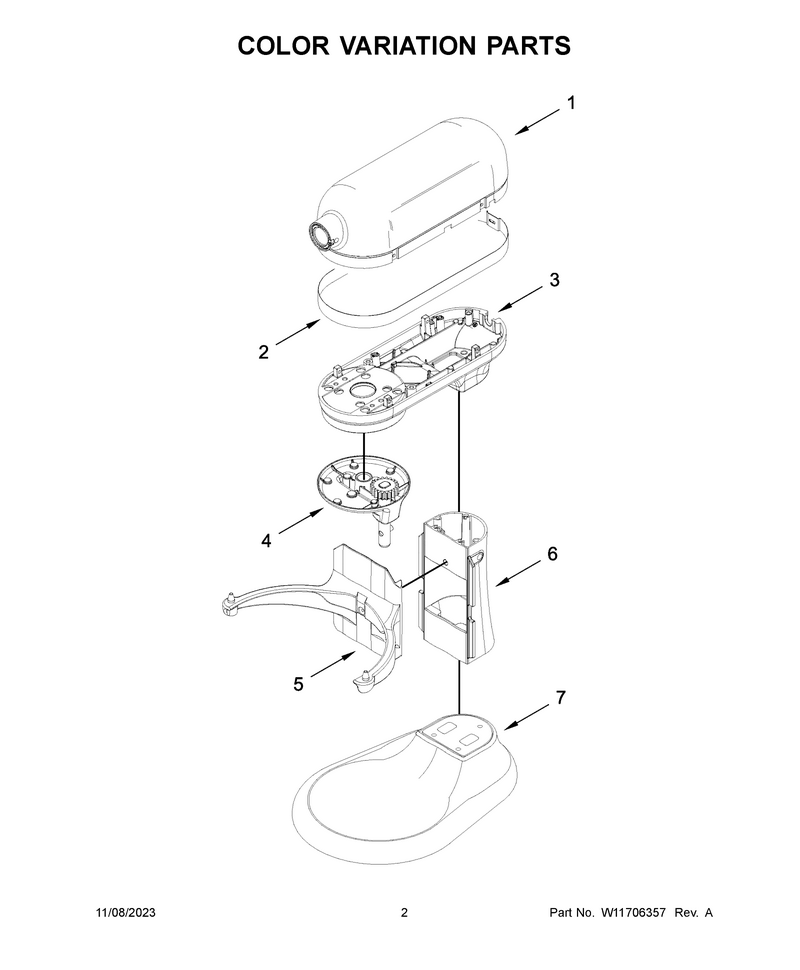

02 - Color Variation Parts

...
...
1
Motor Housing (Beetroot) WPL-W11691199
...
1H
Motor Housing (Blue Velvet) WPL-W11255425
...
1G
Motor Housing (Pistachio) WPL-9708090
...
1F
Motor Housing (Porcelain White) WPL-W11691227
...
1E
Motor Housing (Mineral Water Blue) WPL-W11520729
...
1C
Motor Housing (Empire Red) WPL-9705300
...
1B
Motor Housing (Contour Silver) WPL-W10327951
...
1A
Motor Housing (Cast Iron Black/imperial Black) WPL-9703532
...
1D
Motor Housing (Feather Pink) WPL-W11520731
...
2
Band-Trim WPL-W11755731
...
3D
Lower Gearcase (Feather Pink) WPL-W11520132
...
3H
Lower Gearcase (Blue Velvet) WPL-W11520141
...
3G
Lower Gearcase (Pistachio) WPL-W11520137
...
3F
Lower Gearcase (Porcelain White) WPL-W11691225
...
3E
Lower Gearcase (Mineral Water Blue) WPL-W11520127
...
3C
Lower Gearcase (Empire Red) WPL-W11520142
...
3B
Lower Gearcase (Contour Silver) WPL-W11520143
...
3A
Lower Gearcase (Cast Iron Black/imperial Black) WPL-W11520134
...
3
Lower Gearcase (Beetroot) WPL-W11691197
...
4
Planetary (Silent Silver) WPL-W11595416
...
5F
Bowl Support And Pins (Porcelain White) WPL-W11691232
...
5H
Bowl Support And Pins (Blue Velvet) WPL-W11255416
...
5G
Bowl Support And Pins (Pistachio) WPL-W11417635
...
5E
Bowl Support And Pins (Mineral Water Blue) WPL-W11520075
...
5C
Bowl Support And Pins (Empire Red) WPL-9705360
...
5B
Bowl Support And Pins (Contour Silver) WPL-W10327966
...
5A
Bowl Support And Pins (Cast Iron Black/imperial Black) WPL-9703520
...
5
Bowl Support And Pins (Beetroot) WPL-W11691204
...
5D
Bowl Support And Pins (Feather Pink) WPL-W11520077
...
6G
Column And Pins (Pistachio) WPL-9708104
...
6H
Column And Pins (Blue Velvet) WPL-W11255413
...
6F
Column And Pins (Porcelain White) WPL-W11691229
...
6E
Column And Pins (Mineral Water Blue) WPL-W11520107
...
6D
Column And Pins (Feather Pink) WPL-W11520109
...
6C
Column And Pins (Empire Red) WPL-9705324
...
6B
Column And Pins (Contour Silver) WPL-W10328003
...
6A
Column And Pins (Cast Iron Black/imperial Black) WPL-9703526
...
6
Column And Pins (Beetroot) WPL-W11691201
...
7
Base And Foot Assembly (Beetroot) WPL-W11691198
...
7A
Base And Foot Assembly (Cast Iron Black/imperial Black) WPL-9703511
...
7B
Base And Foot Assembly (Contour Silver) WPL-W10328017
...
7C
Base And Foot Assembly (Empire Red) WPL-9705348
...
7D
Base And Foot Assembly (Feather Pink) WPL-W11520054
...
7E
Base And Foot Assembly (Mineral Water Blue) WPL-W11520052
...
7F
Base And Foot Assembly (Porcelain White) WPL-W11691226
...
7G
Base And Foot Assembly (Pistachio) WPL-9708107
...
7H
Base And Foot Assembly (Blue Velvet) WPL-W11255409

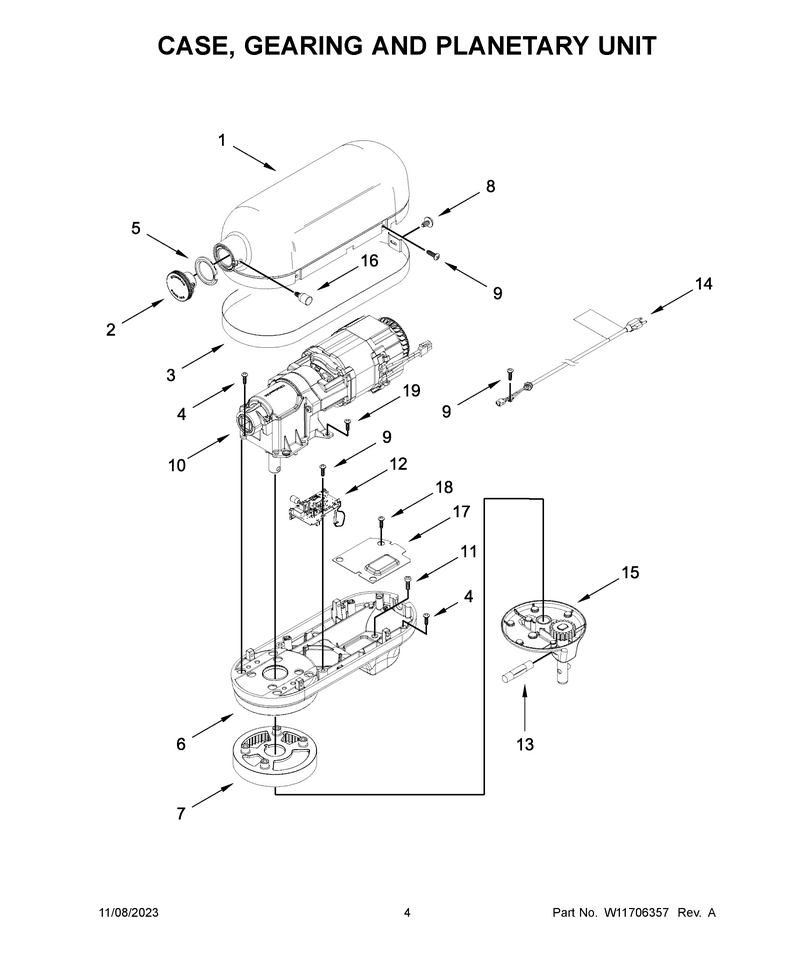

03 - Case, Gearing And Planetary Unit

...
...
1
Gearcase Motor Housing (Refer To Color Variation Parts Page) WPL---
...
2
Cap-Hub WPL-W11647947
...
3
Band, Trim (Refer To Color Variation Parts Page) WPL---
...
4
Screw WPL-W10914506
...
5
Cap-Hub WPL-WP9703315
...
6
Lower Gearcase (Refer To Color Variation Parts Page) WPL---
...
7
Gear WPL-W11647948
...
8
Screw WPL-W10853069
...
9
Screw WPL-WP3400814
...
10
Motor WPL-W11647949
...
11
Screw WPL-W10913677
...
12
Control Assembly, 120 Volt WPL-W11512565
...
13
Pin-Groove WPL-WPW10234531
...
14
Cord, Power (Black) WPL-W11459266
...
15
Planetary Assembly (Refer To Color Variation Parts Page) WPL---
...
16
Knob WPL-W11712726
...
17
Plate, Lower Housing WPL-W11560130
...
18
Screw WPL-W11677192
...
19
Screw WPL-W11677193

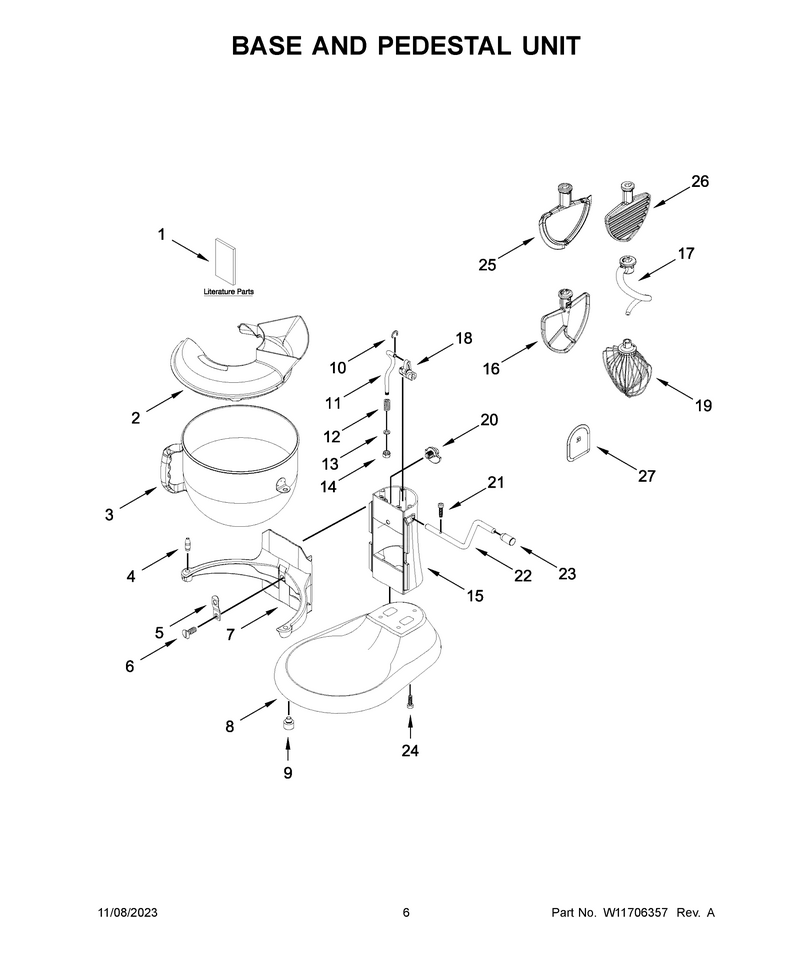

04 - Base And Pedestal Unit

...
...
1
Use And Care Guide WPL-W11519607
...
2
Sheld-Pour WPL-W11647946
...
3
Bowl-Mixer WPL-W11649168
...
4
Panel- Ove WPL-WP240185
...
5
Clip WPL-WPW10504114
...
6
Screw WPL-W10861883
...
7
Bowl Support (Refer To Color Variation Parts Page) WPL---
...
8
Base And Foot Assembly (Refer To Color Variation Parts Page) WPL---
...
9
Foot WPL-WP9708649
...
10
Ring-C WPL-WP9703307
...
11
Rod, Bowl Lift WPL-W11376364
...
12
Spring WPL-4159622
...
13
Washer WPL-W11708395
...
14
Nut WPL-8533907
...
15
Column Assembly (Refer To Color Variation Parts Page) WPL---
...
16
Beater-Mxr WPL-W11646967
...
17
Hook-Dough WPL-W11646968
...
18
Arm-Lift WPL-WP9706885
...
19
Whip-Wire WPL-WPW10600940
...
20
Cam WPL-W11721849
...
21
Screw WPL-WP3400814
...
22
Handle, Bowl Lift WPL-W11376371
...
23
Handle WPL-W11682560
...
24
Screw WPL-W10913677
...
25
Beater, Double Flex Edge (Silent Silver) WPL-W11569890
...
26
Beater-Mxr WPL-W11729131
...
27
Scraper WPL-W11623644
