KitchenAid KSM154GBQ4MH5

Model: KSM154GBQ4MH5

Save Part Not Listed?
product name

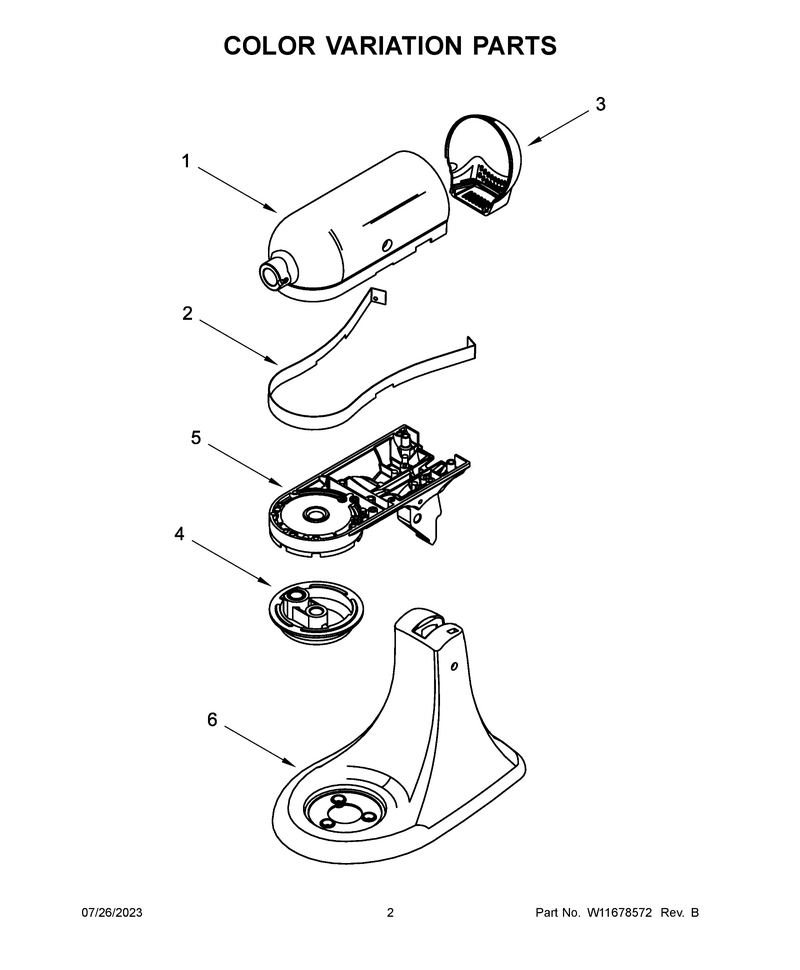

02 - Color Variation Parts

...
...
1
Motor Housing (Candy Apple Red) WPL-W11605631
...
1A
Motor Housing (Contour Silver) WPL-W11601770
...
1B
Motor Housing (Feather Pink) WPL-W11610358
...
1C
Motor Housing (Ice/ice Blue) WPL-W11617715
...
1D
Motor Housing (Imperial Grey) WPL-W11605712
...
1E
Motor Housing (Kyoto Glow) WPL-W11610705
...
1F
Motor Housing (Matte Lavender Cream) WPL-W11604387
...
1G
Motor Housing (Majestic Yellow) WPL-W11603995
...
1H
Motor Housing (Milkshake/matte Milkshake) WPL-W11603707
...
1I
Motor Housing (Mineral Water Blue) WPL-W11601712
...
1J
Motor Housing (Onyx Black) WPL-W11601672
...
1K
Motor Housing (Pistachio) WPL-W11603687
...
1L
Motor Housing (Blue Velvet/matte Vintage Blue) WPL-W11604098
...
2
Trim Band (Black) WPL-9706661
...
3
Cover WPL-WPW10239110
...
3A
End Cover (Contour Silver) WPL-W10350456
...
3B
End Cover (Feather Pink) WPL-W11431666
...
3C
End Cover (Ice/ice Blue) WPL-9707667
...
3D
End Cover (Imperial Grey) WPL-240253-23
...
3E
End Cover (Kyoto Glow) WPL-W11357462
...
3F
End Cover (Matte Lavender Cream) WPL-W10678729
...
3G
End Cover (Majestic Yellow) WPL-240253-21
...
3H
End Cover (Milkshake/matte Milkshake) WPL-W11113835
...
3I
End Cover (Mineral Water Blue) WPL-W11444606
...
3J
End Cover (Onyx Black) WPL-240253-14
...
3K
End Cover (Pistachio) WPL-9706841
...
3L
End Cover (Blue Velvet/matte Vintage Blue) WPL-W11209472
...
4
Planetary (Candy Apple Red) WPL-W10239112
...
4A
Planetary (Contour Silver) WPL-W10350465
...
4B
Planetary (Feather Pink) WPL-W11431675
...
4C
Planetary (Ice/ice Blue) WPL-9707665
...
4D
Planetary (Imperial Grey) WPL-240286-24
...
4E
Planetary (Kyoto Glow) WPL-W11357469
...
4F
Planetary (Matte Lavender Cream) WPL-W10678731
...
4G
Planetary (Majestic Yellow) WPL-240286-22
...
4H
Planetary (Milkshake/matte Milkshake) WPL-W11113886
...
4I
Planetary (Mineral Water Blue) WPL-W11444675
...
4J
Planetary WPL-W11199173
...
4K
Planetary (Pistachio) WPL-9706839
...
4L
Planetary (Blue Velvet/matte Vintage Blue) WPL-W11209470
...
5
Lower Gearcase (Candy Apple Red) WPL-W10239118
...
5A
Lower Gearcase (Contour Silver) WPL-W10350459
...
5B
Lower Gearcase (Feather Pink) WPL-W11431679
...
5C
Lower Gearcase (Ice/ice Blue) WPL-9707659
...
5D
Lower Gearcase (Imperial Grey) WPL-240350-86
...
5E
Lower Gearcase (Kyoto Glow) WPL-W11357465
...
5F
Lower Gearcase (Matte Lavender Cream) WPL-W10678734
...
5G
Lower Gearcase (Majestic Yellow) WPL-240350-82
...
5H
Lower Gearcase (Milkshake/matte Milkshake) WPL-W11113859
...
5I
Lower Gearcase (Mineral Water Blue) WPL-W11444671
...
5J
Gearcase WPL-WP240350-56
...
5K
Lower Gearcase (Pistachio) WPL-9706832
...
5L
Lower Gearcase (Blue Velvet/matte Vintage Blue) WPL-W11209465
...
6
Pedestal (Candy Apple Red) WPL-W10239121
...
6A
Pedestal (Contour Silver) WPL-W10350457
...
6B
Pedestal (Feather Pink) WPL-W11444650
...
6C
Pedestal (Ice/ice Blue) WPL-9707656
...
6D
Pedestal With Feet (Imperial Grey) WPL-9702305
...
6E
Pedestal (Kyoto Glow) WPL-W11357468
...
6F
Pedestal (Lavender Cream) WPL-W10678730
...
6G
Pedestal (Majestic Yellow) WPL-9702303
...
6H
Pedestal (Milkshake/matte Milkshake) WPL-W11113853
...
6I
Pedestal W/feet (Mineral Water Blue) WPL-W11444670
...
6J
Pedestal & Feet (Onyx Black) WPL-3179275
...
6K
Pedestal W/feet (Pistachio) WPL-9706830
...
6L
Pedestal (Blue Velvet/matte Vintage Blue) WPL-W11231604

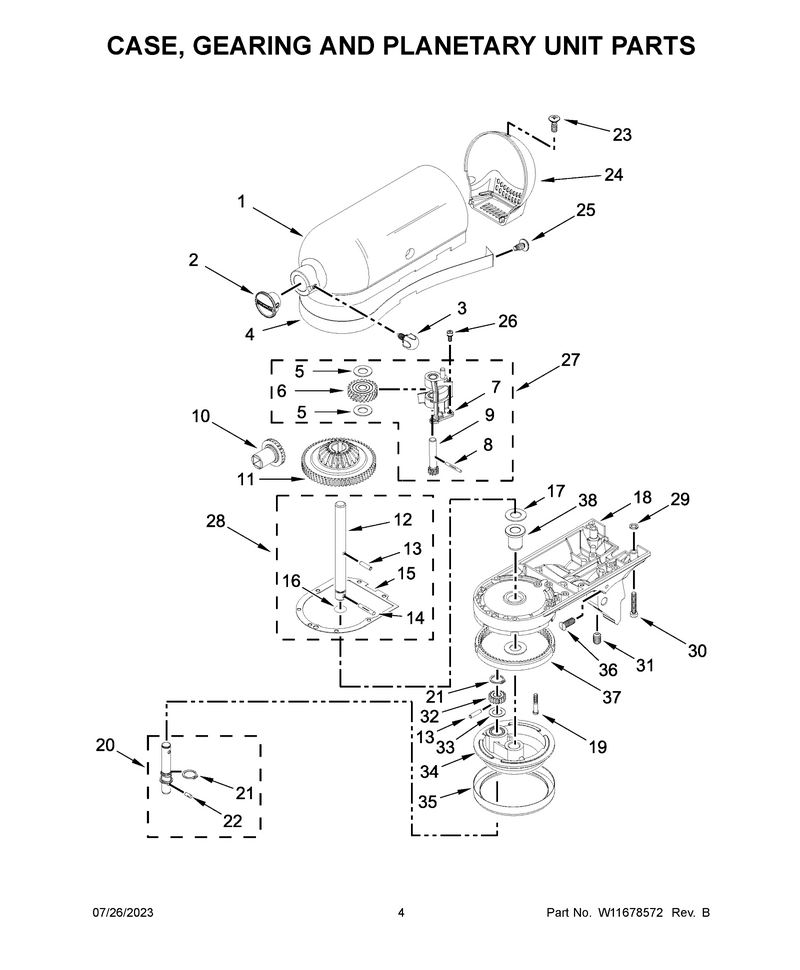

03 - Case, Gearing And Planetary Unit Parts

...
...
1
Gearcase Motor Housing (Refer To Color Variation Parts Page) WPL---
...
2
Cap-Hub WPL-W11048596
...
3
Screw WPL-WP9709194
...
4
Band, Trim (Refer To Color Variation Parts Page) WPL---
...
5
Washer WPL-WPW10323373
...
6
Gear-Worm WPL-WPW10112253
...
7
Bearing WPL-W11082541
...
8
Pin-Groove WPL-WP9705444
...
9
Gear-Worm WPL-WP240210-2
...
10
Gear-Hub WPL-W11192794
...
11
Gear-Hub WPL-W11192794
...
12
Shaft-Cntr WPL-WP240026
...
13
Pin-Dowel WPL-WP9707223
...
14
Pin-Groove WPL-WP9705443
...
15
Gasket WPL-W11582479
...
16
Ring-O WPL-WP67500-55
...
17
Washer WPL-WPW10323378
...
18
Lower Gearcase (Refer To Color Variation Parts Page) WPL---
...
19
Screw WPL-W11170598
...
20
Shaft-Agit WPL-WP243368
...
21
Ring-Retnr WPL-WP9703438
...
22
Pin-Groove WPL-W11664709
...
23
Screw WPL-WP241877
...
24
Cover, End (Refer To Color Variation Parts Page) WPL---
...
25
Screw WPL-W10853069
...
26
Screw WPL-W11097298
...
27
Gear-Worm WPL-WP240309-2
...
28
Shaft, Center Agitator Assembly WPL-4160474
...
29
Lockwasher WPL-WP8533914
...
30
Screw WPL-W11173547
...
31
Screw WPL-WP3400203
...
32
Gear-Pinon WPL-W11133645
...
33
Washer WPL-WP9706090
...
34
Planetary (Refer To Color Variation Parts Page) WPL---
...
35
Drip Ring WPL-WP240285
...
36
Screw WPL-W11028216
...
37
Gear WPL-W11340106
...
38
Bearing WPL-WP16897

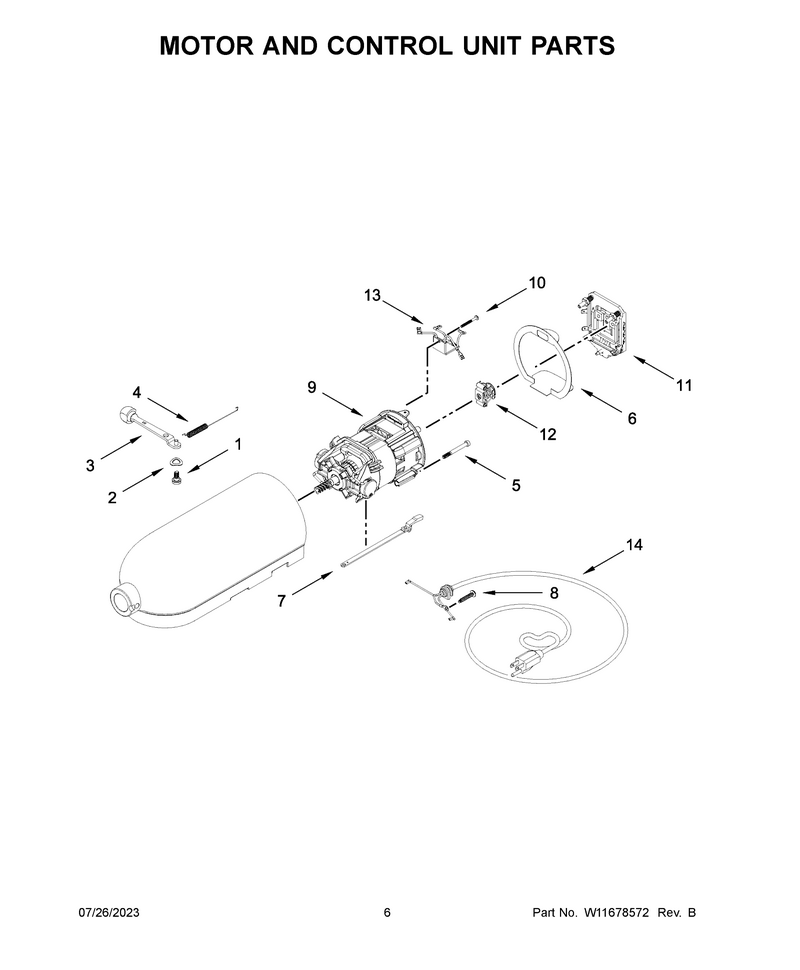

04 - Motor And Control Unit Parts

...
...
1
Screw WPL-WP110679
...
2
Washer WPL-WP116241
...
3
Lever-Spd WPL-WP9709276
...
4
Spring WPL-WP3183680
...
5
Screw-Stat WPL-W11678787
...
6
Seal WPL-WP240775-1
...
7
Link-Speed WPL-W11557271
...
8
Screw WPL-W10914506
...
9
Armature WPL-W11678788
...
10
Screw WPL-W11084238
...
11
Plate-Ctrl WPL-WPW10119326
...
12
Governor WPL-WPW10330804
...
13
Board-Phas WPL-WPW10325124
...
14
Cord-Power WPL-W11545825

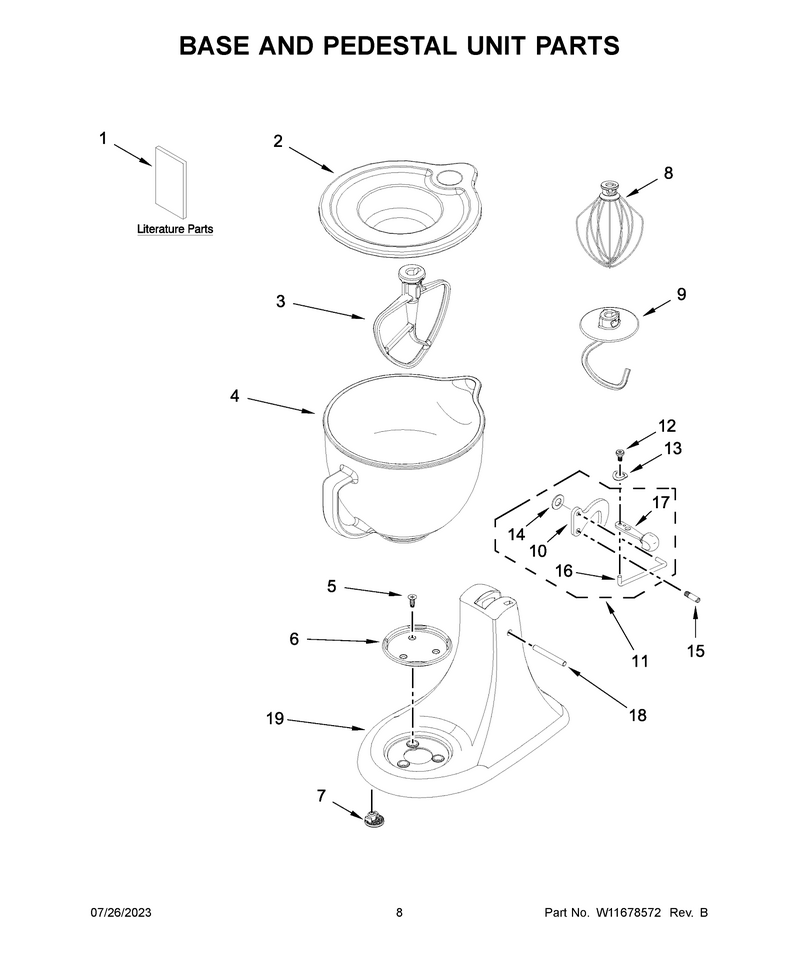

05 - Base And Pedestal Unit Parts

...
...
NI
Beater-Mxr WPL-W10917788
...
1
Use & Care Guide WPL-W11555615
...
2
Cover-Bowl WPL-WPW10223140
...
3
Beater-Mxr WPL-WPW10672617
...
4
Bowl-Mixer WPL-W11341654
...
5
Screw WPL-W11544572
...
6
Cap-Screw WPL-WPW10191926
...
7
Foot WPL-WP9709707
...
8
Whip-Wire WPL-WP9704329
...
9
Hook-Dough WPL-WPW10674618
...
10
Latch WPL-W11246352
...
11
Lever-Ltch WPL-WP24452
...
12
Screw WPL-WP110679
...
13
Washer WPL-WP116241
...
14
Washer WPL-W11218705
...
15
Screw WPL-W10802060
...
16
Link-Latch WPL-W11232016
...
17
Lever-Ltch WPL-WP9709280
...
18
Pin-Dowel WPL-WP16910
...
19
Pedestal (Refer To Color Variation Parts Page) WPL---
