KitchenAid KFGC506JAV05

Model: KFGC506JAV05

Save Part Not Listed?
product name

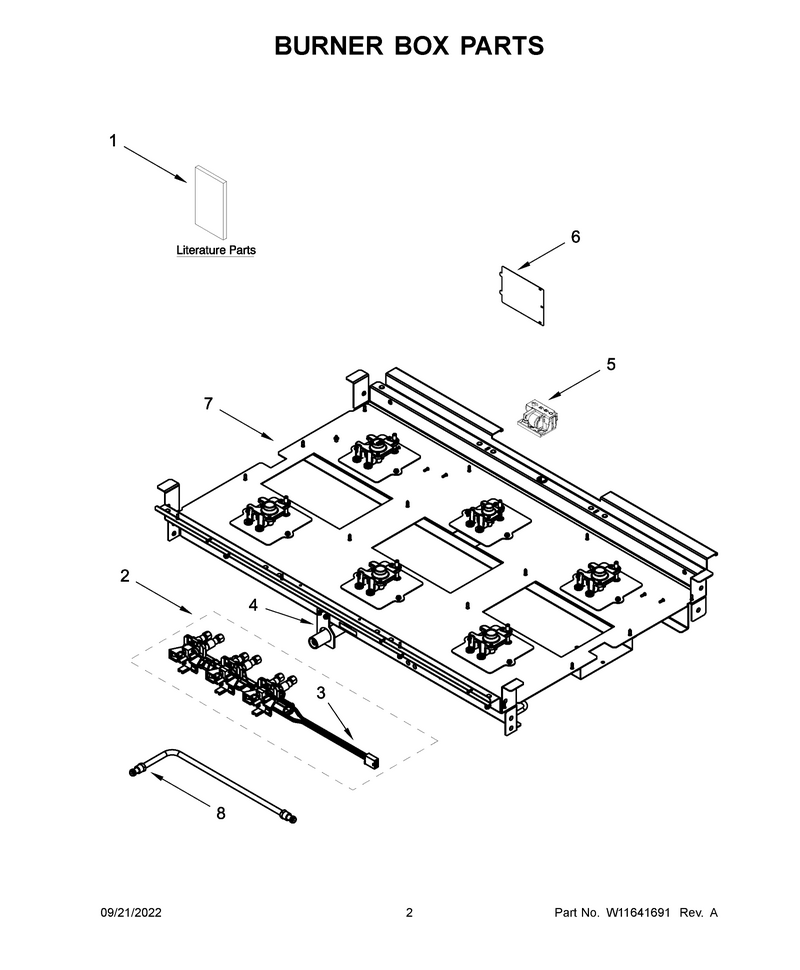

02 - Burner Box Parts

...
...
NI
Harns-Wire WPL-W11446239
...
1
Use And Care Guide WPL-W11508863
...
1A
Installation Instructions WPL-W11508887
...
1B
Guide, Internet Connectivity WPL-W11184759
...
1C
Diagram, Wiring (Cooktop) WPL-W11575703
...
1D
Tech Sheet WPL-W11565467
...
1E
Guide, Quick Start WPL-W11364680
...
2
Manifold WPL-W11384736
...
2A
Manifold WPL-W11384739
...
3
Switch, Harness WPL-W10903729
...
4
Brkt-Mntg WPL-W11320153
...
5
Module-Spk WPL-W11319687
...
6
Cover, Ignition WPL-W10115843
...
7
Following Parts Not Illustrated WPL-N/P
...
8
Tubing-Gas WPL-W11335267
...
8A
Tubing-Gas WPL-W11384740

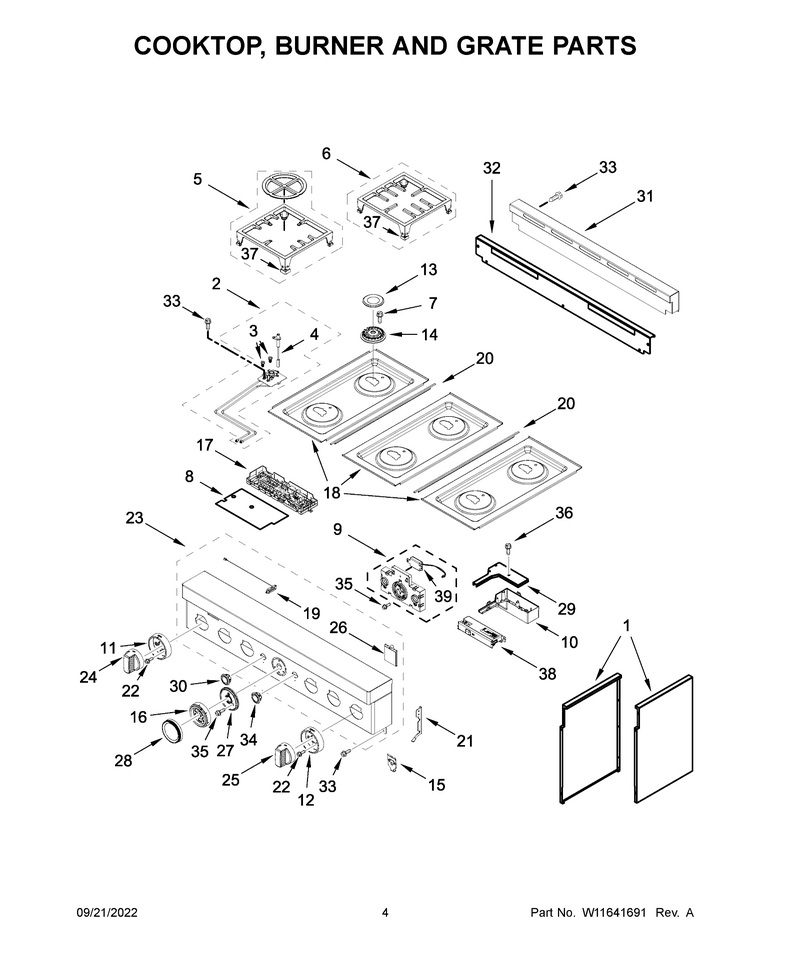

03 - Cooktop, Burner And Grate Parts

...
...
1
Side-Compt WPL-W11333179
...
1A
Side-Compt WPL-W11333303
...
2
Holder-Orf WPL-W11378584
...
2A
Holder-Orf WPL-W11384764
...
2B
Holder-Orf WPL-W11384766
...
2C
Holder-Orf WPL-W11384767
...
2D
Holder-Orf WPL-W11334712
...
2E
Holder-Orf WPL-W11384765
...
3
Spud-Orfce WPL-W11643164
...
3A
Spud-Orfce WPL-W11672510
...
3B
Spud-Orfce WPL-W11661909
...
3C
Orifice, Simmer (5k) (Left Center Rear) WPL-W10892438
...
4
Igntr-Surf WPL-W11573760
...
4A
Igntr-Surf WPL-W11628654
...
4B
Igniter (Left Rear) WPL-W11114379
...
5
Grate-Brnr WPL-W11380124
...
6
Grate-Brnr WPL-W11380128
...
7
Screw WPL-W11643628
...
7A
Screw WPL-W11678580
...
8
Insulator WPL-W11320149
...
9
Cntrl-Elec WPL-W11492301
...
10
Cover-Cntl WPL-W11320411
...
11
Bezel-Knob WPL-W11380145
...
12
Bezel-Knob WPL-W11380146
...
13
Cap-Burner WPL-W11344538
...
14
Burnr-Head WPL-W11344539
...
14A
Burnr-Head WPL-W11344742
...
14B
Burnr-Head WPL-W11344746
...
15
Clip WPL-W11318207
...
16
Knob WPL-W11548479
...
17
Cntrl-Elec WPL-W11620686
...
18
Cooktop WPL-W11344755
...
18A
Cooktop WPL-W11344757
...
18B
Cooktop WPL-W11344761
...
19
Antenna WPL-W11318855
...
20
Trim, T-Strip (Black) WPL-W10271524
...
21
Bracket, Moving Console (Left) WPL-W10130760
...
21A
Bracket, Moving Console (Right) WPL-W10130759
...
22
Screw WPL-W11509770
...
23
Panl-Cntrl WPL-W11385637
...
24
Knob WPL-W11380561
...
25
Knob WPL-W11380562
...
26
Light Pipe Assembly WPL-W10896366
...
27
Bezel-Knob WPL-W11548484
...
28
Knob WPL-W11548477
...
29
Cover-Cntl WPL-W11320410
...
30
Button Assembly, Oven Light WPL-W11241511
...
31
Trim, Island WPL-W11476245
...
32
Insert, Island Trim WPL-W10323250
...
33
Screw WPL-WP90767
...
34
Button Assembly, Oven Start WPL-W11241510
...
35
Screw WPL-WP3400814
...
36
Screw WPL-W10709795
...
37
Pad-Grate WPL-W11550692
...
38
Cntrl-Elec WPL-W11234290
...
39
Speaker WPL-W11123146

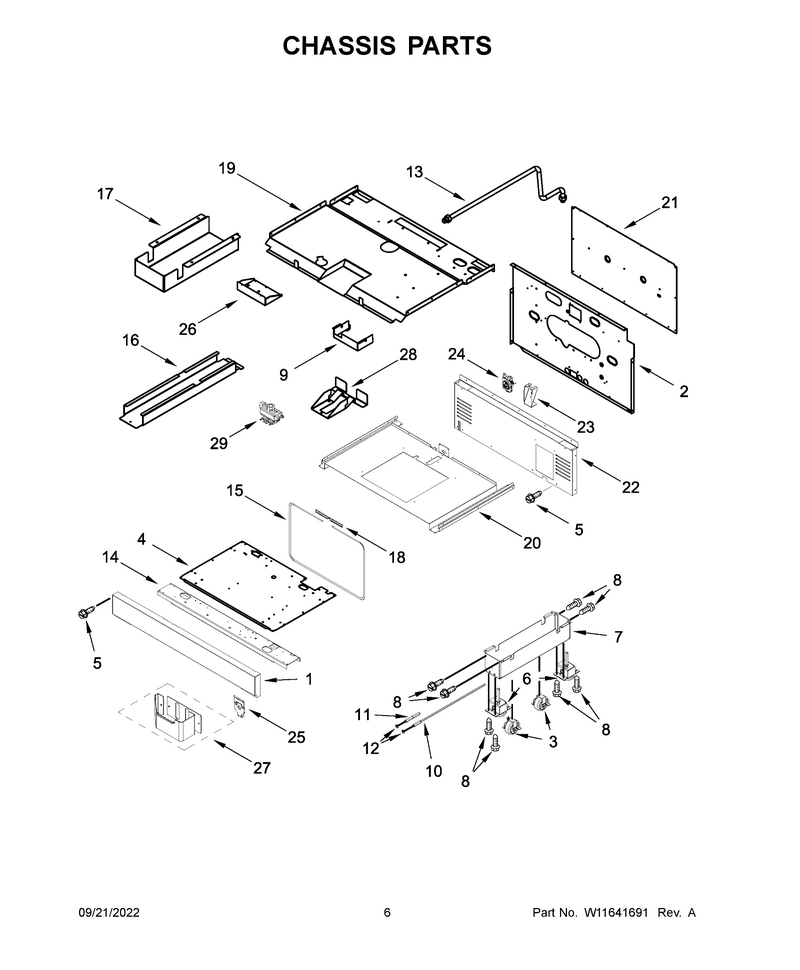

04 - Chassis Parts

...
...
1
Plate-Covr WPL-W11385816
...
2
Back, Chassis WPL-W11324988
...
3
Roller-Cab WPL-WPW10138054
...
4
Duct, Bottom (36 In) WPL-W11095572
...
5
Screw WPL-WP90767
...
6
Foot-Level WPL-W10859931
...
7
Base, Leveling Leg WPL-W10908710
...
8
Screw WPL-WP4449743
...
9
Cabinet, Appliance Manager WPL-W11369237
...
10
Shaft, Long WPL-W10115869
...
11
Shaft, Short WPL-W10115793
...
12
E-Ring WPL-489504
...
13
Tubing-Gas WPL-W11364214
...
14
Support, Channel WPL-W11087493
...
15
Gasket-Ovn WPL-W11676901
...
16
Duct-Chassis, Rear WPL-W11050145
...
17
Channel, Wire WPL-W11368831
...
18
Retainer, Gasket (9 In Long) WPL-W11362015
...
19
Top, Chassis WPL-W11324985
...
20
Chassis, Bottom WPL-W11040801
...
21
Panel, Back Top WPL-W11103333
...
22
Panel, Back Bottom WPL-W11034133
...
23
Brkt-Mntg WPL-W11320155
...
24
Regulator WPL-W11193822
...
25
Clip WPL-W11318207
...
26
Drawer WPL-W11320147
...
27
Cover, Foot (Left) WPL-W11199181
...
27A
Cover, Foot (Right) WPL-W11199178
...
28
Bracket, Bake Alignment WPL-W11190223
...
29
Valve-Gas WPL-W11239228

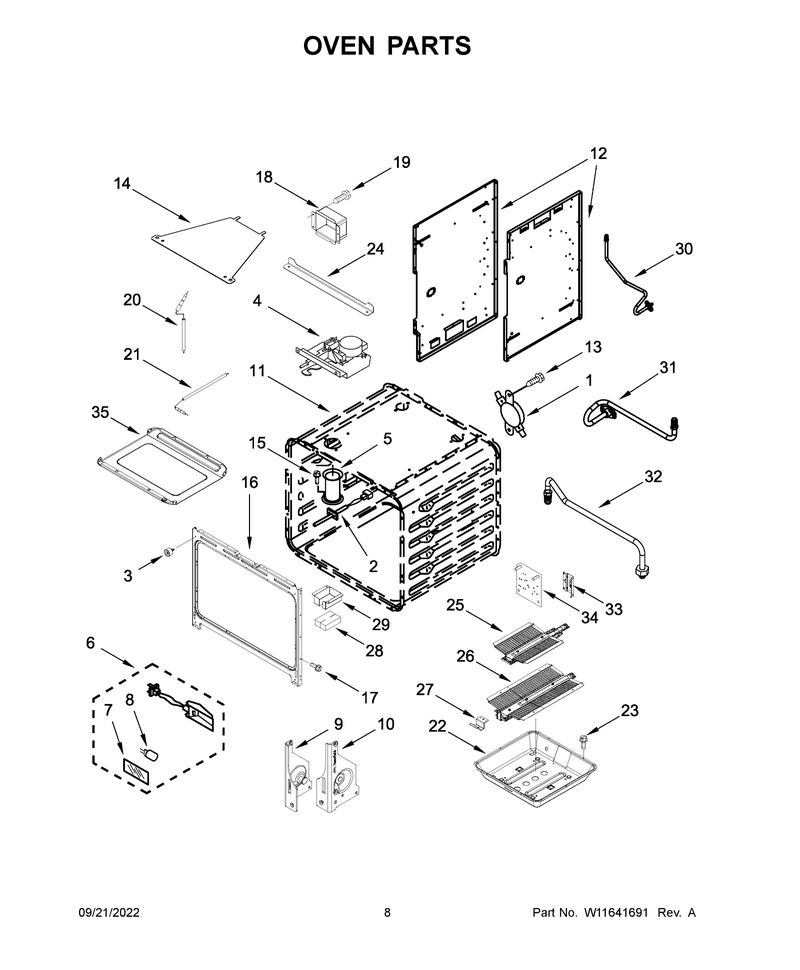

05 - Oven Parts

...
...
NI
Nut WPL-WP3400968
...
1
Thrmst-Fix WPL-WP4450249
...
2
Sensor WPL-W10859573
...
3
Bumper WPL-WPW10351278
...
4
Latch-Door WPL-W11029221
...
5
Tube, Vent WPL-W10145743
...
6
Light-Oven WPL-W11233684
...
7
Lens, Light WPL-W10169756
...
8
Bulb-Light WPL-WPW10169757
...
9
Hinge-Recv WPL-W11318331
...
10
Hinge-Recv WPL-W11317948
...
11
Following Parts Not Illustrated WPL-N/P
...
12
Panel-Cbnt WPL-W11320145
...
12A
Panel-Cbnt WPL-W11320144
...
13
Screw, Grounding WPL-4450800
...
14
Cover, Latch WPL-W10160858
...
15
Screw WPL-W11233072
...
16
Frame, Front WPL-W11192749
...
17
Screw WPL-W11169708
...
18
Box, Broil WPL-W10308051
...
19
Screw WPL-WP7101P434-60
...
20
Igntr-Surf WPL-W11355920
...
21
Igntr-Surf WPL-W11355922
...
22
Support WPL-WPW10145744
...
23
Screw WPL-WP12992902
...
24
Bracket, Broil Standoff WPL-W10317437
...
25
Burnr-Oven WPL-W11643161
...
26
Burnr-Brlr WPL-W11661180
...
27
Bracket, Bake Burner WPL-W10308040
...
28
Insulation WPL-W11688851
...
29
Cover, Broil WPL-W10310985
...
30
Tubing-Gas WPL-W11355244
...
31
Tubing-Gas WPL-W11355919
...
32
Tubing-Gas WPL-W11356251
...
33
Bracket-Board, Dsi WPL-W10145362
...
34
Module-Spk WPL-WPW10511278
...
35
Pan-Broilr WPL-W11661576

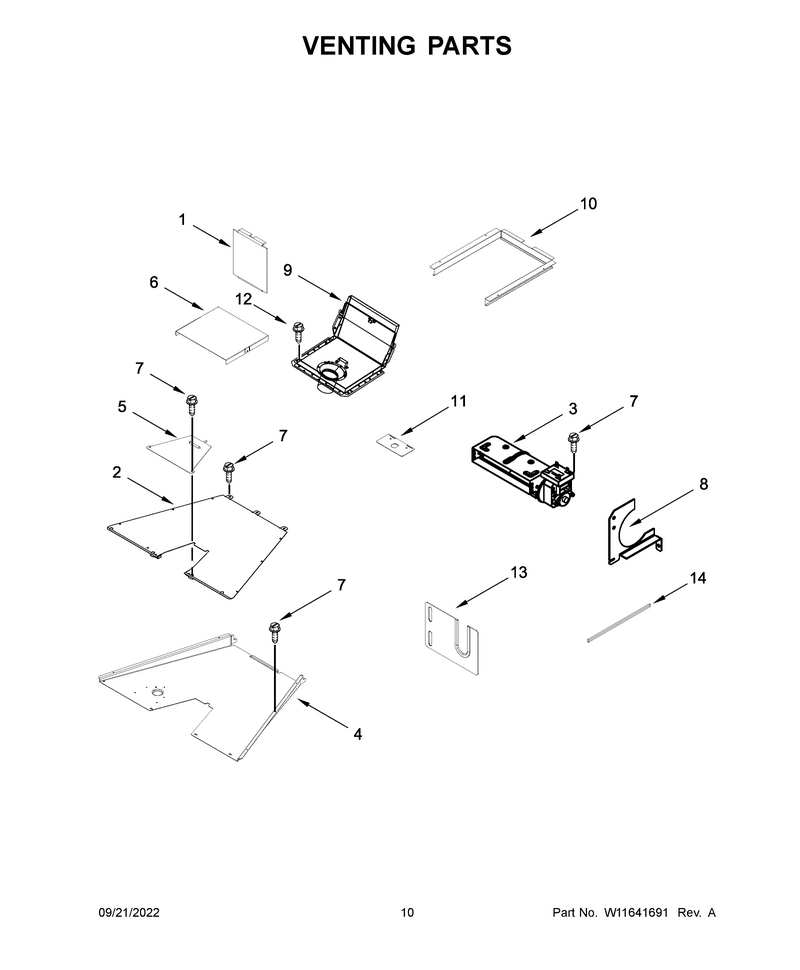

06 - Venting Parts

...
...
1
Insulation, Chimney WPL-W10246087
...
2
Vent, Cooling Top (30 In) WPL-W11105221
...
3
Blower WPL-W11248652
...
4
Vent, Cooling Bottom (30 In) WPL-W11091676
...
5
Cover-Ltch WPL-W11320405
...
6
Retainer, Insulation WPL-W10246086
...
7
Screw WPL-WP90767
...
8
Bracket, Blower Mount WPL-W11047754
...
9
Vent, Chimney Box (30 In / 36 In) WPL-W10340579
...
10
Duct, Primary Air (30 In) WPL-W10145363
...
11
Holder, Strain Relief WPL-W10115855
...
12
Screw WPL-WP3400805
...
13
Covr-Acess WPL-W11320407
...
14
Gasket WPL-W11175143

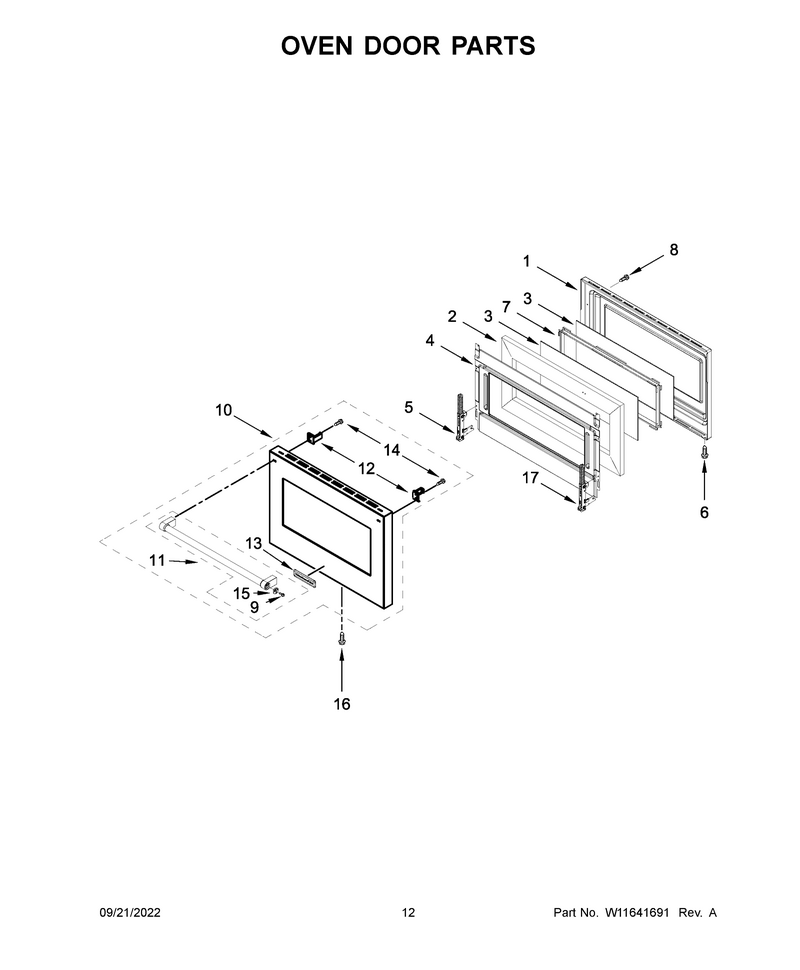

07 - Oven Door Parts

...
...
1
Frame-Glas WPL-W11334152
...
2
Insulation WPL-W11688331
...
3
Glass-Door WPL-W11334153
...
4
Retainer, Glass WPL-W11194820
...
5
Hinge-Door WPL-W11568941
...
6
Screw WPL-W11193480
...
7
Frame, Glass WPL-W11194814
...
8
Screw WPL-W11712404
...
9
Screw WPL-W10920281
...
10
Glass-Door WPL-W11387317
...
11
Hndle-Door WPL-W11512747
...
12
Brkt-Mntg WPL-W11317513
...
13
Nameplate WPL-W10839793
...
14
Screw WPL-WPW10276043
...
15
Medallion, Handle WPL-W11361074
...
16
Screw WPL-W10162096
...
17
Hinge-Door WPL-W11568813

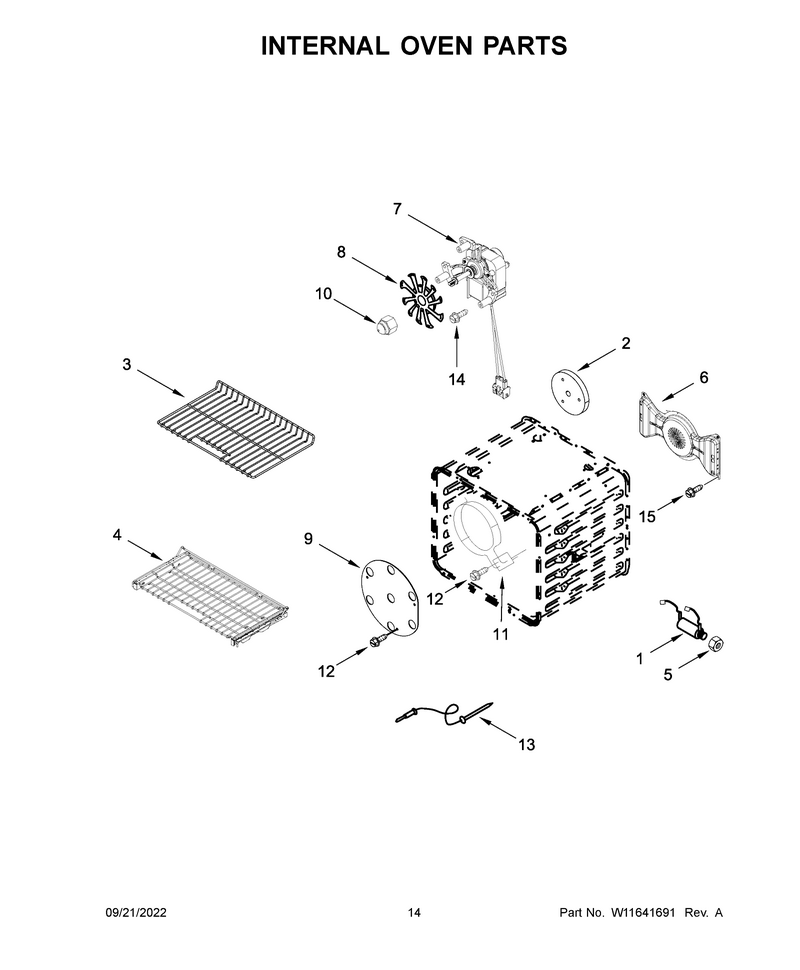

08 - Internal Oven Parts

...
...
1
Jack-Probe WPL-8186589
...
2
Insulation WPL-W11688507
...
3
Rack, Oven WPL-W10822069
...
4
Rack, Sliding Oven WPL-W11496903
...
5
Locknut WPL-W11231343
...
6
Baffl-Conv WPL-W11662207
...
7
Motor-Fan WPL-W10794440
...
8
Fan-Convct WPL-W10819914
...
9
Plate, Fan WPL-W10261523
...
10
Nut WPL-W10794042
...
11
Element, Convection Heat WPL-W11098505
...
12
Screw WPL-WP4449154
...
13
Probe-Meat WPL-WP9755542
...
14
Screw WPL-W10850807
...
15
Screw WPL-W10739592

...
...
NI
Accessory Parts, Gas Range Connector Kit WPL-30-48KITRC
