product name

KitchenAid Beverage Center KUBR304ESS01 KUBR304ESS01

Model: KUBR304ESS01

Save Part Not Listed?
product name

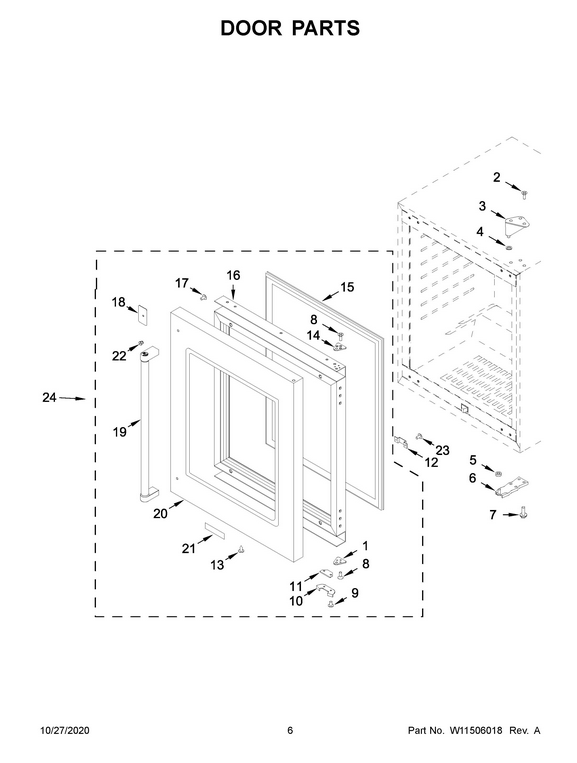

KitchenAid KUBR304ESS01

...
...
1
Spacer WPL-4344756
...
3
Door Hinge WPL-4344754
...
7
Bolt WPL-W10780355
...
9
Screw WPL-4344801
...
10
Bracket WPL-4344758
...
12
Switch Plate WPL-W10622808
...
14
Spacer WPL-4344755
...
15
Gasket WPL-W10797384
...
24
Door Assy Co WPL-W11522053
...
24A
Door Assy Co WPL-W11522058

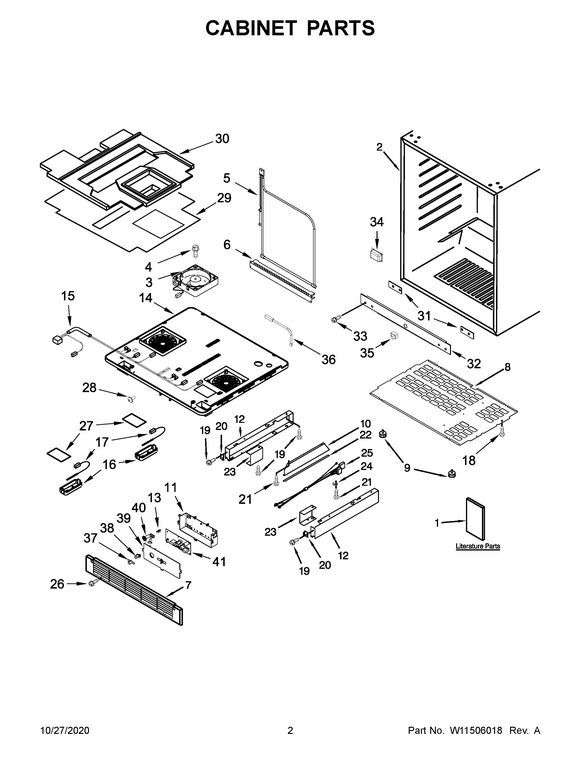

KitchenAid KUBR304ESS01

...
...
5
Thermal Fuse Assembly WPL-W11506487
...
10
Auxiliary Pl WPL-W10778959
...
12
Frame (Right Hand) WPL-W11506509
...
12A
Frame (Left Hand) WPL-W11506510
...
13
Refrigerator Spacer WPL-W10204659
...
14
Fan Cover WPL-W10802010
...
23
Support WPL-4344821
...
24
Clip WPL-W10270517
...
31
Frame WPL-W10780357
...
34
Splicer Box WPL-W10788689
...
39
Box WPL-W10772869

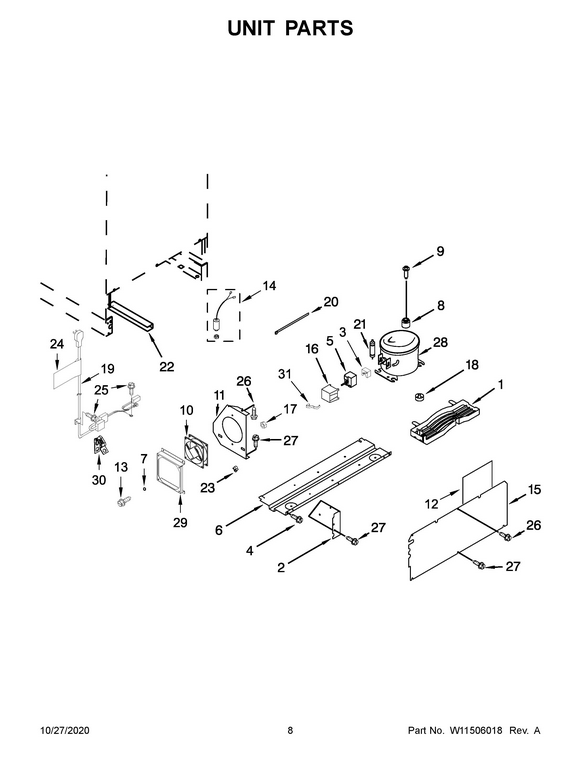

KitchenAid KUBR304ESS01

...
...
1
Drain Tray WPL-W11506518
...
8
Refrigerator Compressor Grommet WPL-WP4344779
...
10
Condenser WPL-W10772882
...
20
Wire Tie WPL-4344829
...
21
Drier Tube WPL-W10163273
...
23
Clip WPL-W10238022
...
29
Fan Cover, Condenser WPL-W11506521
...
31
Clip Relay WPL-W10778971

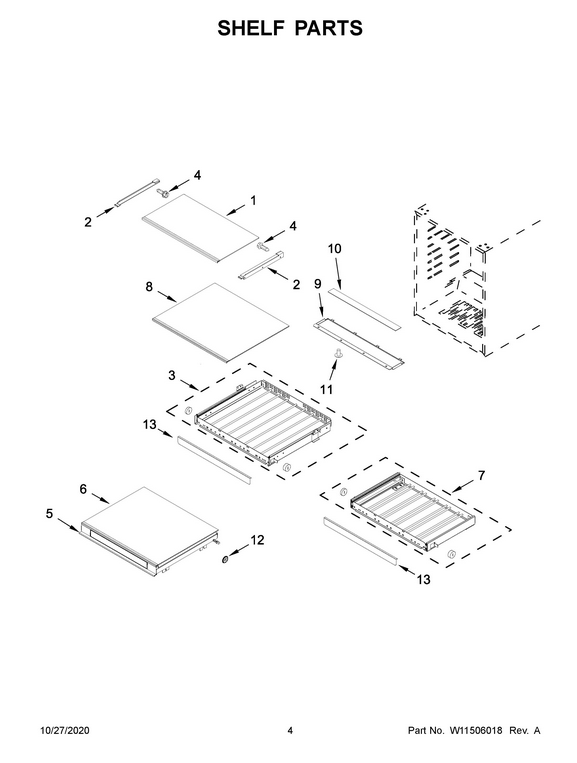

KitchenAid KUBR304ESS01

...
...
3A
Top Wine Rack Assembly (Right Hinge) WPL-W11506481
...
4
Screw WPL-W10319187
...
5
Trim, Glass Shelf WPL-W11506424
...
6
Display Cont WPL-W11522060
...
7
Wine Rack Assembly, Lower WPL-W10803971
...
9
Light Lens WPL-W10622774
...
10
Led Light WPL-W10797323
...
12
Liner Bushing WPL-W10621514
...
13
Trim WPL-W11506482
