product name

KitchenAid Beverage Center KUBR204EPA01 KUBR204EPA01

Model: KUBR204EPA01

Save Part Not Listed?
product name

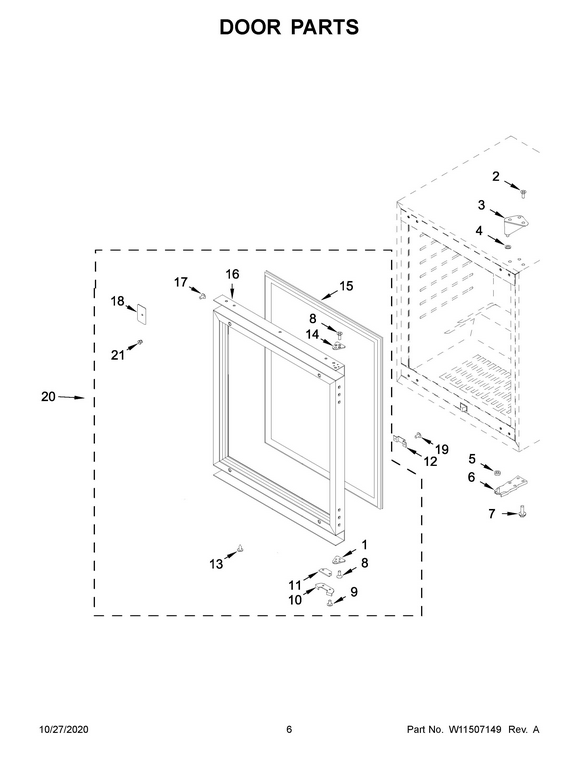

KitchenAid KUBR204EPA01

...
...
1
Spacer WPL-4344798
...
2
Screw WPL-4344796
...
3
Door Hinge WPL-4344754
...
4
Wine Cooler Door Hinge Washer WPL-4344760
...
5
Washer WPL-W11241702
...
6A
Door Hinge WPL-4344787
...
15
Gasket WPL-W10797384
...
18
Plate WPL-W11263339
...
20
Glass Door A WPL-W11522061
...
20A
Glass Door A WPL-W11522096

KitchenAid KUBR204EPA01

...
...

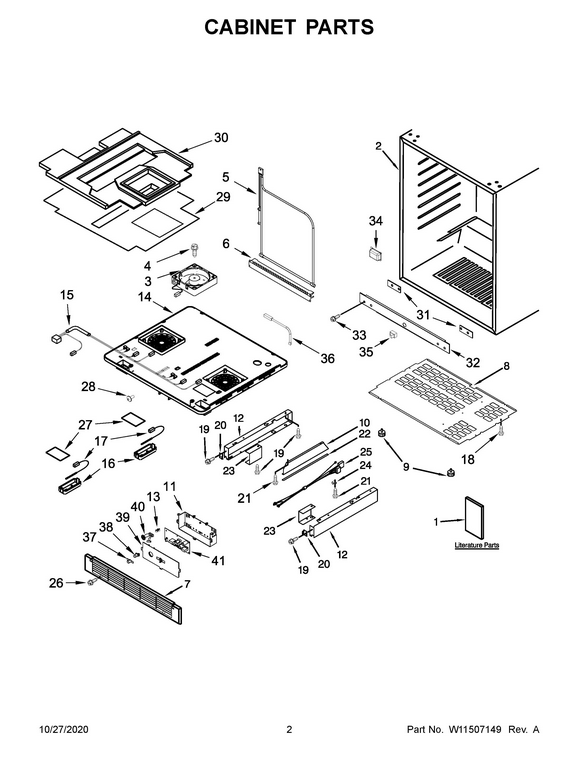

5
Thermal Fuse Assembly WPL-W11506487
...
6
Shield WPL-4344747
...
9
Wine Cooler Leveling Leg WPL-W11106296
...
10
Auxiliary Pl WPL-W10778959
...
12
Frame (Right Hand) WPL-W11506509
...
12A
Frame (Left Hand) WPL-W11506510
...
13
Refrigerator Spacer WPL-W10204659
...
22
Refrigeration Appliances Cabinet Base Seal WPL-4344823
...
23
Support WPL-4344821
...
23A
Support WPL-4344820
...
24
Clip WPL-W10270517
...
29
Cover Plate WPL-W10802014
...
32
Frame WPL-W10780356
...
34
Splicer Box WPL-W10788689
...
39
Box WPL-W10772869

KitchenAid KUBR204EPA01

...
...

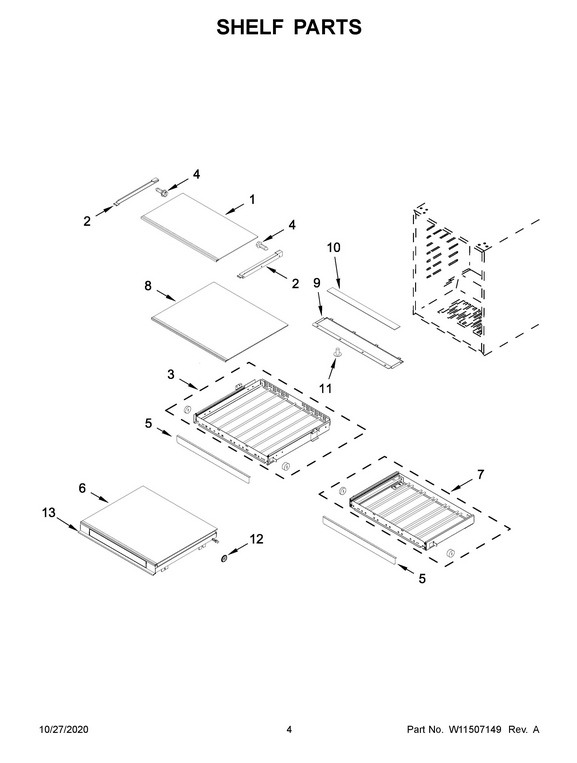

2A
Glass Shelf WPL-W10797332
...
3A
Top Wine Rack Assembly (Right Hinge) WPL-W11506481
...
5
Shelf Trim WPL-W10803983
...
6
Display Cont WPL-W11522060
...
12
Liner Bushing WPL-W10621514
...
13
Trim, Glass Shelf WPL-W11506424

KitchenAid KUBR204EPA01

...
...

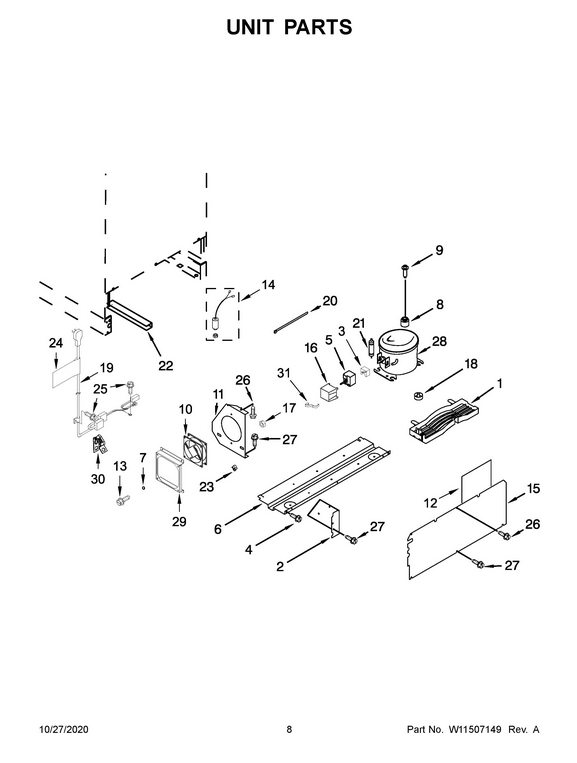

1
Drain Tray WPL-W11506518
...
4
Screw WPL-4344797
...
5
Ptc Thermistor WPL-W10287848
...
6
Plate Cabine WPL-W11422734
...
7
Plate WPL-W10204688
...
8
Refrigerator Compressor Grommet WPL-WP4344779
...
9
Compressor WPL-W10772873
...
12
Rear Cover I WPL-W10778963
...
25
Screw WPL-4344826
...
26
Screw WPL-4344825
...
29
Fan Cover, Condenser WPL-W11506521
