KitchenAid 5KSM195PSGBE0

Model: 5KSM195PSGBE0

Save Part Not Listed?
product name

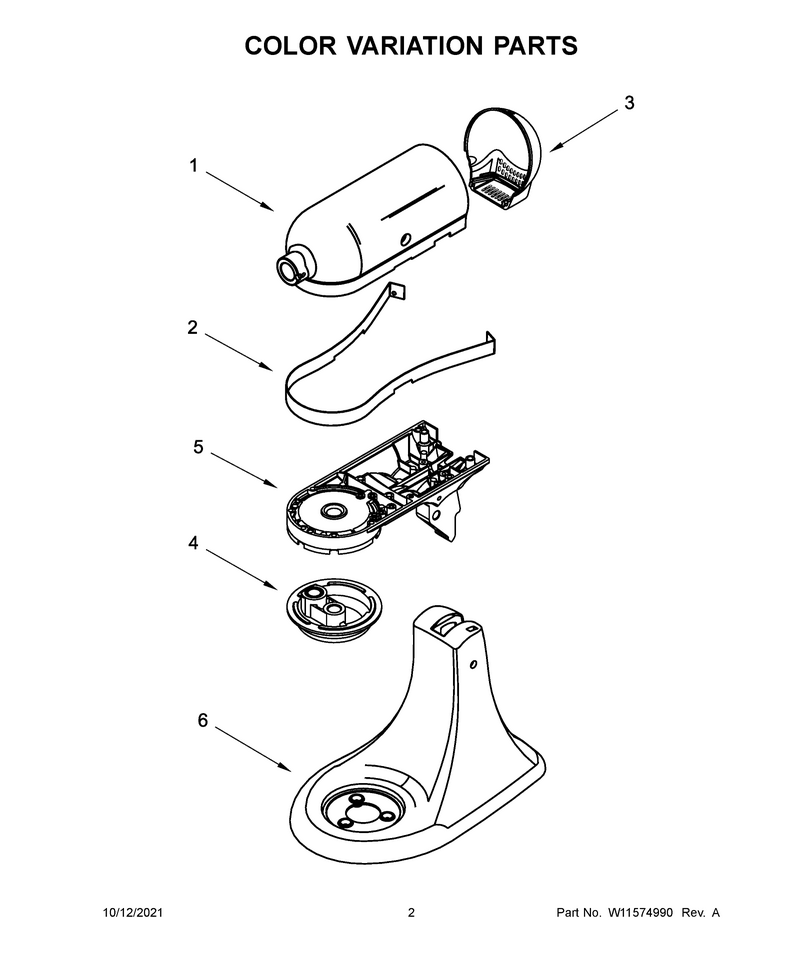

02 - Color Variation Parts

...
...
1
Motor Housing (Beetroot) WPL-W11548801
...
2
Trim Band (Dark Platinum) WPL-W11433197
...
3
End Cover (Beetroot) WPL-W11548796
...
4
Planetary (Beetroot) WPL-W11548803
...
5
Lower Gearcase (Beetroot) WPL-W11548799
...
6
Pedestal (Beetroot) WPL-W11548805

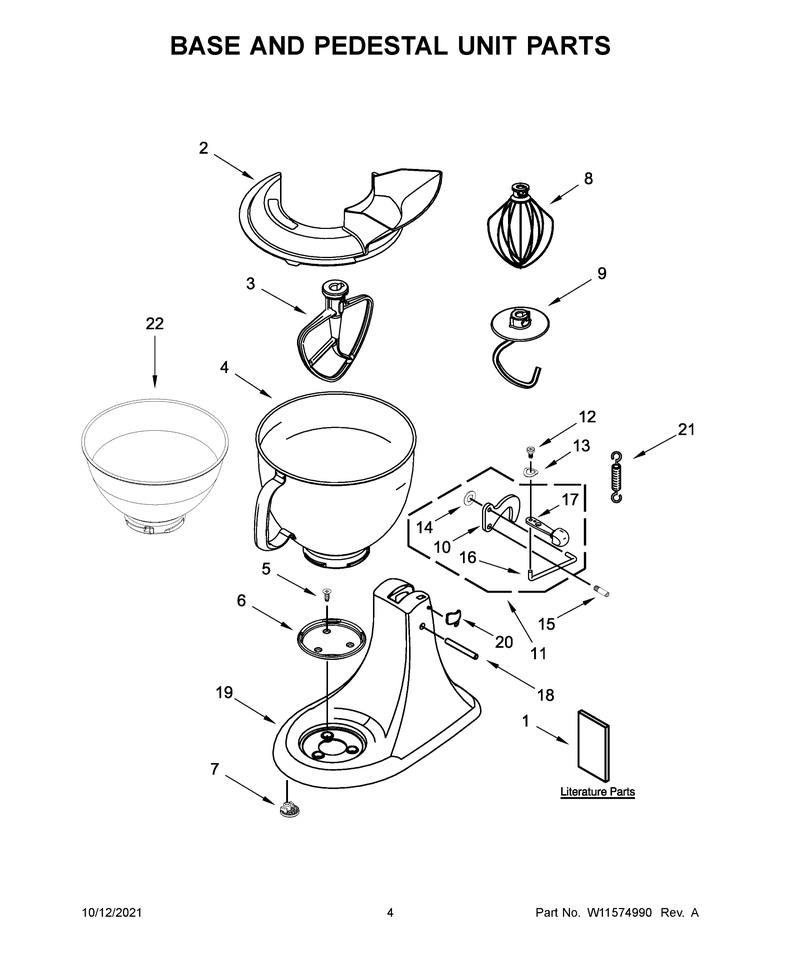

03 - Base And Pedestal Unit Parts

...
...
1
Use & Care Guide WPL-W11562704
...
2
Sheld-Pour WPL-W11573560
...
3
Beater-Mxr WPL-W11748394
...
4
Bowl-Mixer WPL-W11305077
...
5
Screw WPL-W11544572
...
6
Cap-Screw WPL-WPW10191926
...
7
Foot WPL-WP9709707
...
8
Whip-Wire WPL-WP9704329
...
9
Hook-Dough WPL-W11316221
...
10
Latch WPL-W11246352
...
11
Lever-Ltch WPL-W11416057
...
12
Screw WPL-WP110679
...
13
Washer WPL-WP116241
...
14
Washer WPL-W11218705
...
15
Screw WPL-W10802060
...
16
Link-Latch WPL-W11232016
...
17
Lever-Ltch WPL-W11676543
...
18
Pin-Dowel WPL-WP16910
...
19
Following Parts Not Illustrated WPL-N/P
...
20
Headlock WPL-WP3184264
...
21
Spring WPL-W11188450
...
22
Bowl-Mixer WPL-W11681930

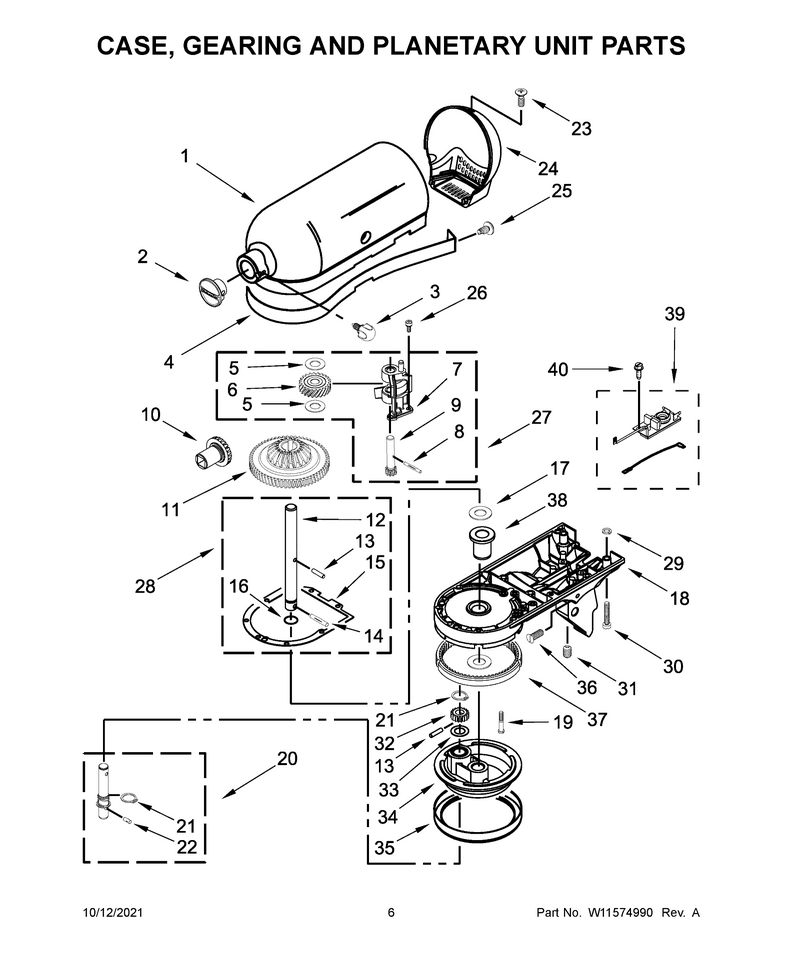

04 - Case, Gearing And Planetary Unit Parts

...
...
1
Following Parts Not Illustrated WPL-N/P
...
2
Cap-Hub WPL-W11048596
...
3
Screw WPL-W10839419
...
4
Following Parts Not Illustrated WPL-N/P
...
5
Washer WPL-WPW10323373
...
6
Gear-Worm WPL-WPW10112253
...
7
Bearing WPL-W11082541
...
8
Pin-Groove WPL-WP9705444
...
9
Gear-Worm WPL-WP240210-2
...
10
Gear-Hub WPL-W11192794
...
11
Gear-Hub WPL-W11192794
...
12
Shaft-Cntr WPL-WP240026
...
13
Pin-Dowel WPL-WP9707223
...
14
Pin-Groove WPL-WP9705443
...
15
Gasket WPL-WP4162324
...
16
Ring-O WPL-WP67500-55
...
17
Washer WPL-WPW10323378
...
18
Following Parts Not Illustrated WPL-N/P
...
19
Screw WPL-W11170598
...
20
Shaft-Agit WPL-WP243368
...
21
Ring-Retnr WPL-WP9703438
...
22
Pin-Groove WPL-W11664709
...
23
Screw WPL-WP241877
...
24
Following Parts Not Illustrated WPL-N/P
...
25
Screw WPL-W10853069
...
26
Screw WPL-W11097298
...
27
Gear-Worm WPL-WP240309-2
...
28
Shaft, Center Agitator Assembly WPL-4160474
...
29
Lockwasher WPL-WP8533914
...
30
Screw WPL-W11173547
...
31
Screw WPL-WP3400203
...
32
Gear-Pinon WPL-W11133645
...
33
Washer WPL-WP9706090
...
34
Following Parts Not Illustrated WPL-N/P
...
35
Drip Ring WPL-W11384784
...
36
Screw WPL-W11028216
...
37
Gear WPL-W11340106
...
38
Bearing WPL-WP16897
...
39
Filter-Rf WPL-4176340
...
40
Screw WPL-WP4159193

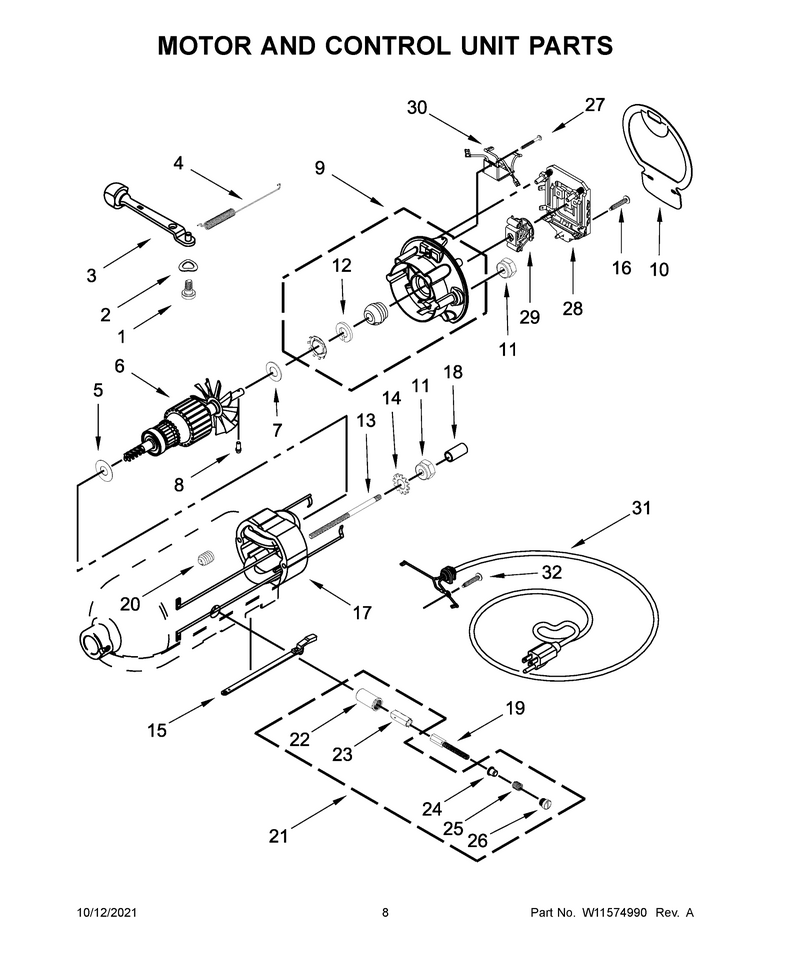

05 - Motor And Control Unit Parts

...
...
1
Screw WPL-WP110679
...
2
Washer WPL-WP116241
...
3
Lever-Spd WPL-W11661858
...
4
Spring WPL-WP3183680
...
5
Washer WPL-WP9704324
...
6
Armature WPL-W10900799
...
7
Washer WPL-W11233557
...
8
Stud-Drive WPL-WP16998
...
9
Brkt-Bearg WPL-WP3180526
...
10
Seal WPL-WP240775-1
...
11
Nut WPL-WPW10131078
...
12
Washer, Felt WPL-3180238
...
13
Screw-Stat WPL-W10851015
...
14
Washer WPL-W11170663
...
15
Link-Speed WPL-W11557271
...
16
Screw WPL-WP3179559
...
17
Field-Asm WPL-WPW10417246
...
18
Sleeve WPL-W11210996
...
19
Brush-Mtr WPL-WPW10380496
...
20
Screw WPL-W11176201
...
21
Brush Holder Assembly WPL-4162546
...
22
Holdr-Brus WPL-WP3179908
...
23
Insert WPL-W11656718
...
24
Cap-Spring WPL-WP116286
...
25
Cap-Spring WPL-WP116287
...
26
Cap-Brush WPL-WP3184212
...
27
Screw WPL-W11084238
...
28
Plate-Ctrl WPL-WPW10119326
...
29
Governor WPL-WPW10330804
...
30
Board-Phas WPL-W11174552
...
31
Cord, Power (Black) WPL-W11525989
...
32
Screw WPL-3184609
