KitchenAid 5KSM192XDAHY5

Model: 5KSM192XDAHY5

Save Part Not Listed?
product name

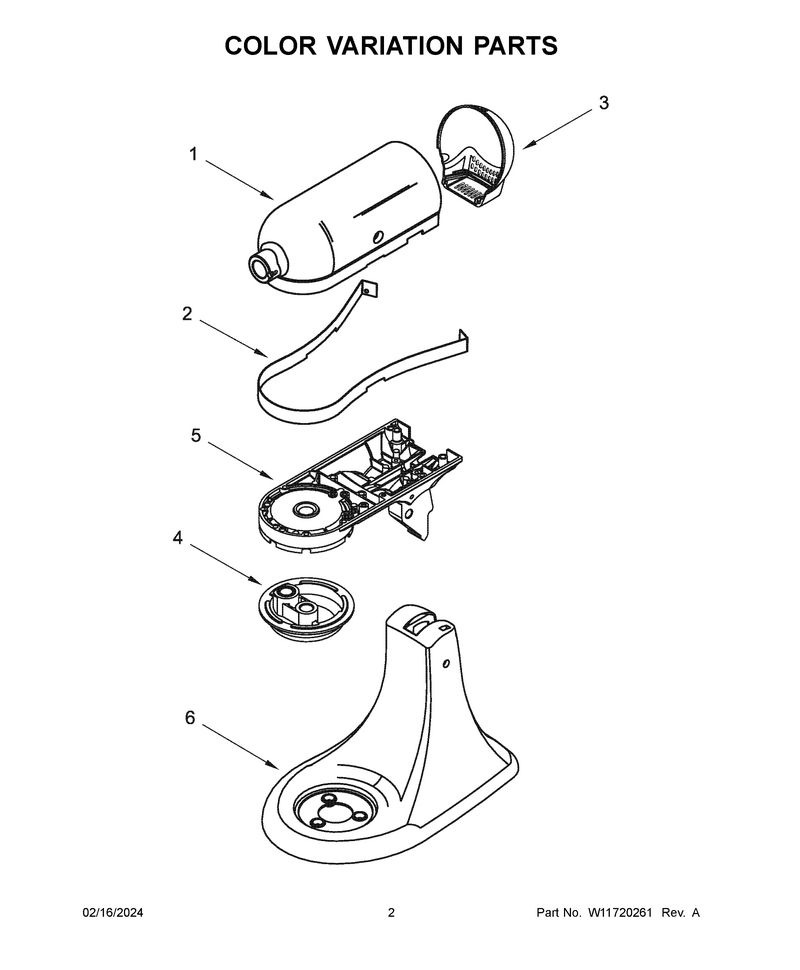

02 - Color Variation Parts

...
...
1
Motor Housing (Agave) WPL-W11618226
...
1A
Motor Housing (Almond Cream/creme) WPL-W11605627
...
1B
Motor Housing (Black Matte) WPL-W11601739
...
1C
Motor Housing (Blue Velvet/matte Vintage Blue) WPL-W11604098
...
1D
Motor Housing (Candy Apple Red) WPL-W11605631
...
1E
Motor Housing (Cast Iron/imperial Black) WPL-W11604104
...
1F
Motor Housing (Contour Silver) WPL-W11601770
...
1G
Motor Housing (Empire Red) WPL-W11601656
...
1H
Motor Housing (Feather Pink) WPL-W11610358
...
1I
Motor Housing (Honey) WPL-W11604373
...
1J
Motor Housing (Kyoto Glow) WPL-W11610705
...
1K
Motor Housing (Majestic Yellow) WPL-W11603995
...
1L
Motor Housing (Matte Dried Rose) WPL-W11603722
...
1M
Motor Housing (Matte Lavender Cream) WPL-W11604387
...
1N
Motor Housing (Milkshake/matte Milkshake) WPL-W11603707
...
1O
Motor Housing (Mineral Water Blue) WPL-W11601712
...
1P
Motor Housing (Onyx Black) WPL-W11601672
...
1Q
Motor Housing (Pebbled Palm) WPL-W11601753
...
1R
Motor Housing (Pistachio) WPL-W11603687
...
1S
Motor Housing (White) WPL-W11601255
...
2
Trim Band (Dark Platinum) WPL-W11562449
...
3
End Cover (Agave) WPL-W11579591
...
3A
End Cover (Almond Cream/creme) WPL-240253-16
...
3B
Cover WPL-W11170239
...
3C
End Cover (Blue Velvet/matte Vintage Blue) WPL-W11209472
...
3D
Cover WPL-WPW10239110
...
3E
End Cover (Cast Iron/imperial Black) WPL-9704805
...
3F
End Cover (Contour Silver) WPL-W10350456
...
3G
Cover WPL-W11084313
...
3H
End Cover (Feather Pink) WPL-W11431666
...
3I
Cover WPL-W11521177
...
3J
End Cover (Kyoto Glow) WPL-W11357462
...
3K
End Cover (Majestic Yellow) WPL-240253-21
...
3L
End Cover (Matte Dried Rose) WPL-W11209501
...
3M
End Cover (Matte Lavender Cream) WPL-W10678729
...
3N
End Cover (Milkshake/matte Milkshake) WPL-W11113835
...
3O
End Cover (Mineral Water Blue) WPL-W11444606
...
3P
End Cover (Onyx Black) WPL-240253-14
...
3Q
End Cover (Pebbled Palm) WPL-W11346216
...
3R
End Cover (Pistachio) WPL-9706841
...
3S
Cover WPL-WP240253-1
...
4
Planetary (Agave) WPL-W11579603
...
4A
Planetary (Almond Cream/creme) WPL-240286-18
...
4B
Planetary WPL-W11170306
...
4C
Planetary (Blue Velvet/matte Vintage Blue) WPL-W11209470
...
4D
Planetary (Candy Apple Red) WPL-W10239112
...
4E
Planetary (Cast Iron/imperial Black) WPL-9704797
...
4F
Planetary (Contour Silver) WPL-W10350465
...
4G
Planetary WPL-W11084831
...
4H
Planetary (Feather Pink) WPL-W11431675
...
4I
Planetary (Honey) WPL-W11485717
...
4J
Planetary (Kyoto Glow) WPL-W11357469
...
4K
Planetary (Majestic Yellow) WPL-240286-22
...
4L
Planetary (Matte Dried Rose) WPL-W11209496
...
4M
Planetary (Matte Lavender Cream) WPL-W10678731
...
4N
Planetary (Milkshake/matte Milkshake) WPL-W11113886
...
4O
Planetary (Mineral Water Blue) WPL-W11444675
...
4P
Planetary WPL-W11199173
...
4Q
Planetary (Pebbled Palm) WPL-W11346226
...
4R
Planetary (Pistachio) WPL-9706839
...
4S
Planetary WPL-WP240286-1
...
5
Lower Gearcase (Agave) WPL-W11579600
...
5A
Lower Gearcase (Almond Cream/creme) WPL-240350-62
...
5B
Housing WPL-W11170233
...
5C
Lower Gearcase (Blue Velvet/matte Vintage Blue) WPL-W11209465
...
5D
Lower Gearcase (Candy Apple Red) WPL-W10245786
...
5E
Lower Gearcase (Cast Iron/imperial Black) WPL-9707103
...
5F
Lower Gearcase (Contour Silver) WPL-W10350459
...
5G
Lower Gearcase (Empire Red) WPL-240350-91
...
5H
Lower Gearcase (Feather Pink) WPL-W11431679
...
5I
Lower Gearcase (Honey) WPL-W11485689
...
5J
Lower Gearcase (Kyoto Glow) WPL-W11357465
...
5K
Lower Gearcase (Majestic Yellow) WPL-240350-93
...
5L
Lower Gearcase (Matte Dried Rose) WPL-W11209493
...
5M
Lower Gearcase (Matte Lavender Cream) WPL-W10678734
...
5N
Lower Gearcase (Milkshake/matte Milkshake) WPL-W11113859
...
5O
Lower Gearcase (Mineral Water Blue) WPL-W11444671
...
5P
Gearcase WPL-WP240350-56
...
5Q
Lower Gearcase (Pebbled Palm) WPL-W11346221
...
5R
Lower Gearcase (Pistachio) WPL-9706832
...
5S
Gearcase WPL-W10861717
...
6
Pedestal, W/feet And Headlock (Agave) WPL-W11579606
...
6A
Pedestl WPL-W11131691
...
6B
Pedestal, W/feet And Headlock (Black Matte) WPL-W11185575
...
6C
Pedestal W/feet And Headlock (Blue Velvet/matte Vintage Blue) WPL-W11209463
...
6D
Pedestl WPL-W11097313
...
6E
Pedestal With Feet And Headlock (Cast Iron/imperial Black) WPL-W10648651
...
6F
Pedestal, W/feet And Headlock (Contour Silver) WPL-W10482478
...
6G
Pedestal (Empire Red) WPL-3184280
...
6H
Pedestal W/feet And Headlock (Feather Pink) WPL-W11431673
...
6I
Pedestl WPL-W11521178
...
6J
Pedestal, W/feet And Headlock (Kyoto Glow) WPL-W11357472
...
6K
Pedestal, W/feet And Headlock (Majestic Yellow) WPL-3184281
...
6L
Pedestal W/feet And Headlock (Matte Dried Rose) WPL-W11209491
...
6M
Pedestal (Matte Lavender Cream) WPL-W11176417
...
6N
Pedestal (Milkshake/matte Milkshake) WPL-W11259895
...
6O
Pedestal (Mineral Water Blue) WPL-W11521031
...
6P
Pedestl WPL-W11205080
...
6Q
Pedestal W/feet And Headlock (Pebbled Palm) WPL-W11346220
...
6R
Pedestal, W/feet And Headlock (Pistachio) WPL-9709637
...
6S
Pedestl WPL-WP3184273

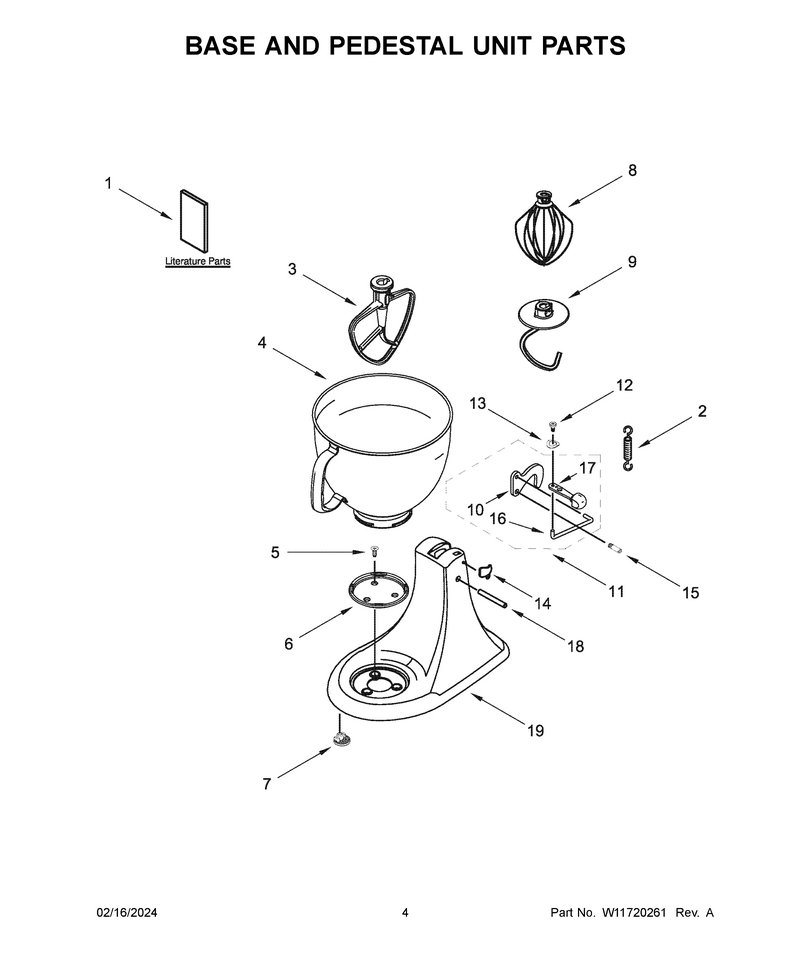

03 - Base And Pedestal Unit Parts

...
...
1
Use & Care Guide WPL-W11556021
...
2
Spring WPL-W11188450
...
3
Beater-Mxr WPL-W11672200
...
4
Bowl-Mixer WPL-W11528689
...
5
Screw WPL-W11544572
...
6
Cap-Screw WPL-WPW10191926
...
7
Foot WPL-WP9709707
...
8
Whip-Wire WPL-WP9704329
...
9
Hook-Dough WPL-W11606668
...
10
Latch WPL-W11246352
...
11
Lever-Ltch WPL-W11416057
...
12
Screw WPL-WP110679
...
13
Washer WPL-WP116241
...
14
Headlock WPL-WP3184264
...
15
Screw WPL-W10802060
...
16
Link-Latch WPL-W11232016
...
17
Lever-Ltch WPL-W11676543
...
18
Pin-Dowel WPL-WP16910
...
19
Pedestal (Refer To Color Variation Parts Page) WPL---

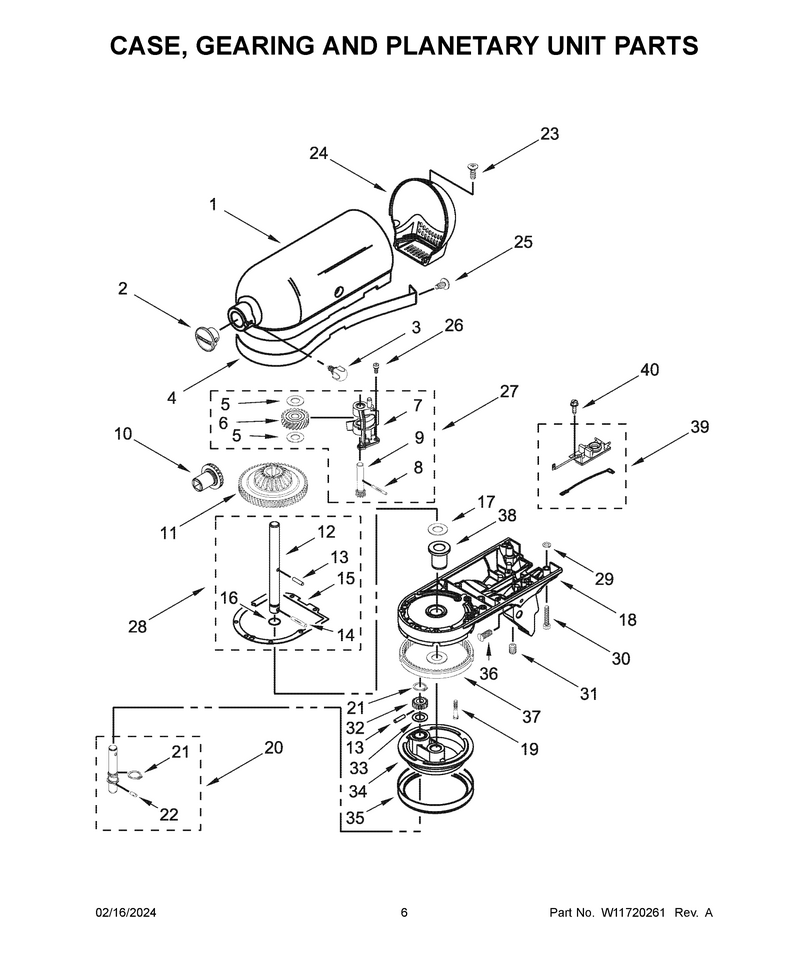

04 - Case, Gearing And Planetary Unit Parts

...
...
1
Gearcase Motor Housing (Refer To Color Variation Parts Page) WPL---
...
2
Cap-Hub WPL-W11048596
...
3
Screw WPL-W10839419
...
4
Band, Trim (Refer To Color Variation Parts Page) WPL---
...
5
Washer WPL-WPW10323373
...
6
Gear-Worm WPL-WPW10112253
...
7
Bearing WPL-W11082541
...
8
Pin-Groove WPL-WP9705444
...
9
Gear-Worm WPL-WP240210-2
...
10
Gear-Hub WPL-W11192794
...
11
Gear-Hub WPL-W11192794
...
12
Shaft-Cntr WPL-WP240026
...
13
Pin-Dowel WPL-WP9707223
...
14
Pin-Groove WPL-WP9705443
...
15
Gasket WPL-W11582479
...
16
Ring-O WPL-WP67500-55
...
17
Washer WPL-WPW10323378
...
18
Lower Gear Case (Refer To Color Variation Parts Page) WPL---
...
19
Screw WPL-W11170598
...
20
Shaft-Agit WPL-WP243368
...
21
Ring-Retnr WPL-WP9703438
...
22
Pin-Groove WPL-W11664709
...
23
Screw WPL-WP241877
...
24
Cover, End (Refer To Color Variation Parts Page) WPL---
...
25
Screw WPL-W10853069
...
26
Screw WPL-W11097298
...
27
Gear-Worm WPL-WP240309-2
...
28
Shaft, Center Agitator Assembly WPL-4160474
...
29
Lockwasher WPL-WP8533914
...
30
Screw WPL-W11173547
...
31
Screw WPL-WP3400203
...
32
Gear-Pinon WPL-W11133645
...
33
Washer WPL-WP9706090
...
34
Planetary (Refer To Color Variation Parts Page) WPL---
...
35
Drip Ring WPL-W11384784
...
36
Screw WPL-W11028216
...
37
Gear WPL-W11340106
...
38
Bearing WPL-WP16897
...
39
Filter-Rf WPL-4176340
...
40
Screw WPL-WP4159193

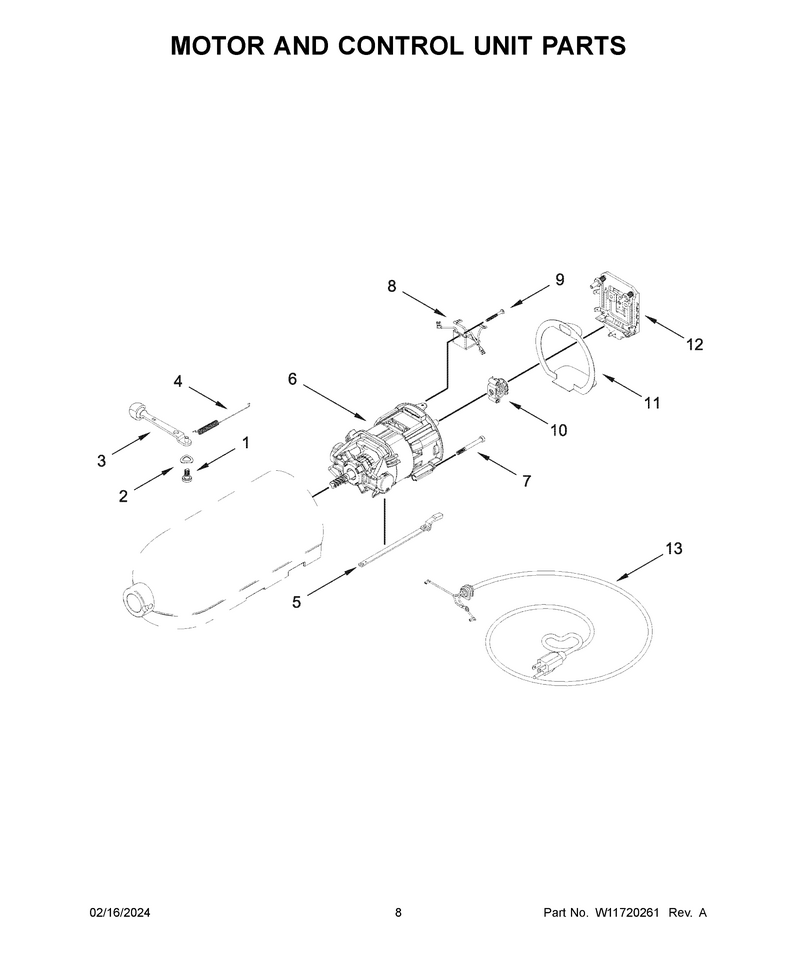

05 - Motor And Control Unit Parts

...
...
1
Screw WPL-WP110679
...
2
Washer WPL-WP116241
...
3
Lever-Spd WPL-W11661858
...
4
Spring WPL-WP3183680
...
5
Link-Speed WPL-W11557271
...
6
Armature WPL-W11680505
...
7
Screw-Stat WPL-W11678787
...
8
Board-Phas WPL-W11204851
...
9
Screw WPL-W11084238
...
10
Governor WPL-WPW10330804
...
11
Seal WPL-WP240775-1
...
12
Plate-Ctrl WPL-WPW10119326
...
13
Cord-Power WPL-W11729439
