KitchenAid 4KCG200WH1

Model: 4KCG200WH1

Save Part Not Listed?
product name

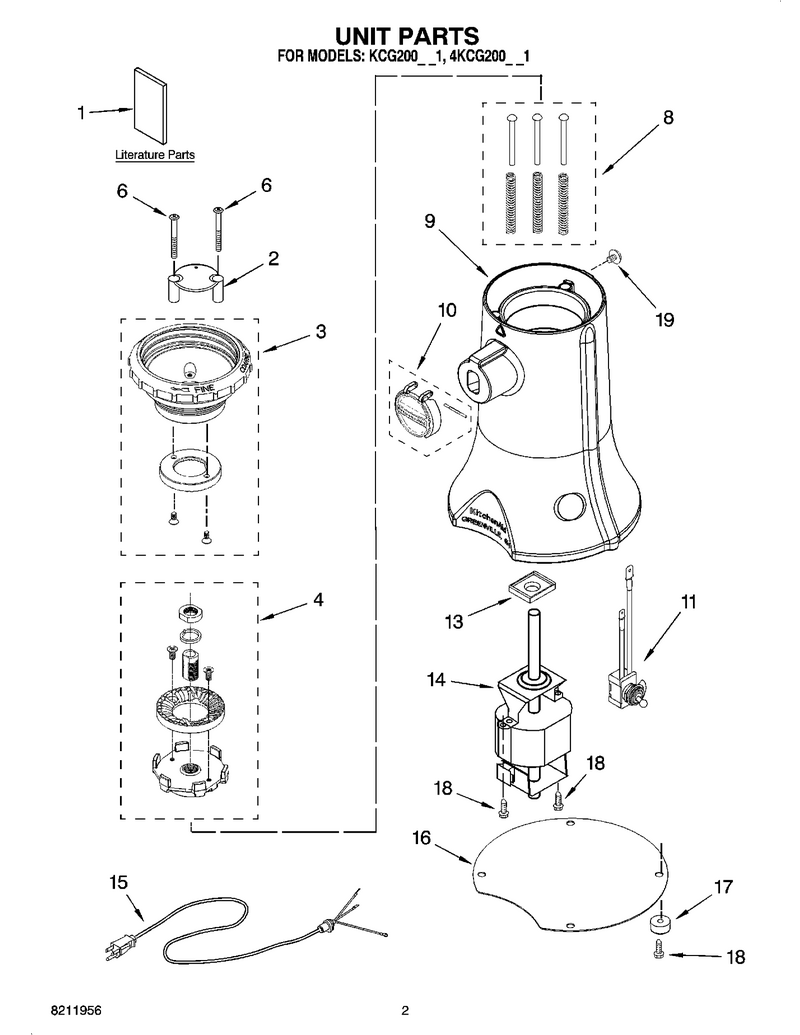

01 - Unit Parts

...
...
1
Repair Parts List WPL-8211956
...
2
Guard, Finger WPL-9708807
...
3
Support, Jar Asm WPL-9707037
...
4
Support WPL-WP9707092
...
6
Screw, Finger Grd WPL-9707095
...
8
Plunger WPL-4176805
...
9
Housing, Motor (Metallic Chrome) WPL-9707040
...
10
Door WPL-4176807
...
11
Switch, Toggle WPL-9707052
...
13
Gasket, Motor WPL-9707023
...
14
Motor WPL-9707012
...
15
Cord, Power (White) WPL-9707025
...
16
Plate, Bottom WPL-9707049
...
17
Foot, Rubber WPL-9707022
...
18
Screw WPL-WP489128
...
19
Screw, Locking WPL-9707096

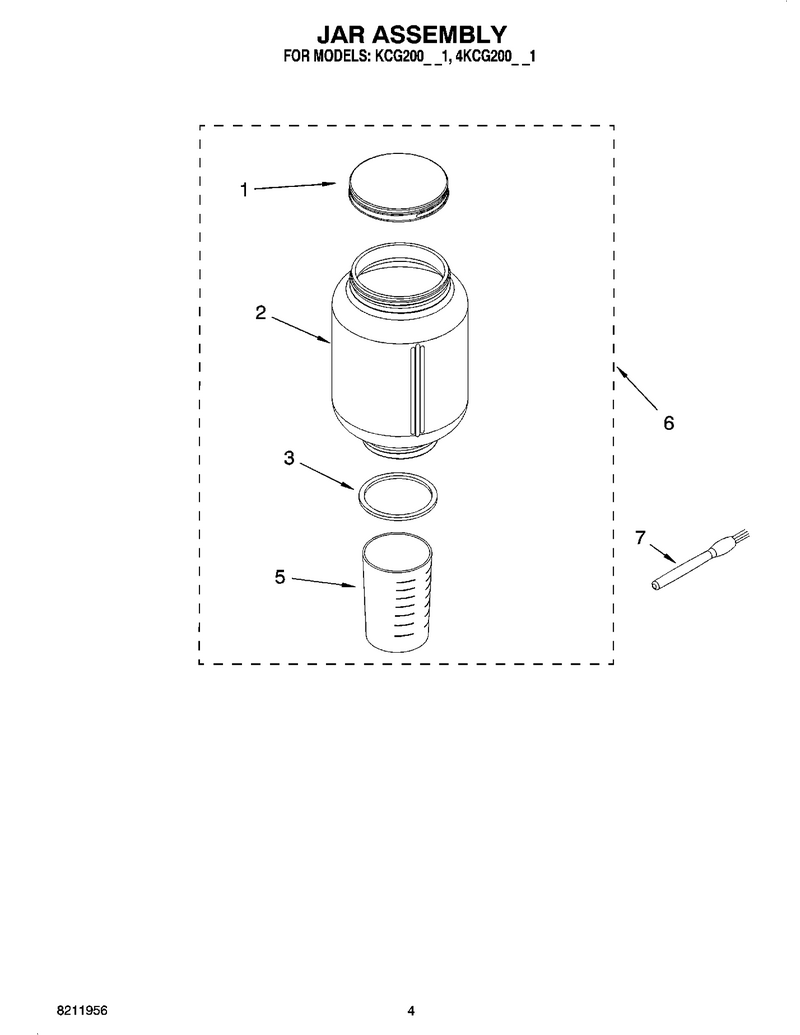

02 - Jar Assembly

...
...
1
Jar Assembly Complete WPL-9707038
...
2
Jar Assembly Complete WPL-9707038
...
3
Jar Assembly Complete WPL-9707038
...
5
Glass, Measuring WPL-9707006
...
6
Jar Assembly Complete WPL-9707038
...
7
Brush, Cleaning WPL-9708809
